56A443TH750 - Cub Cadet XP Stand-On Spreader (2011) Drive Assembly Parts Diagram

XP Stand-On Spreader

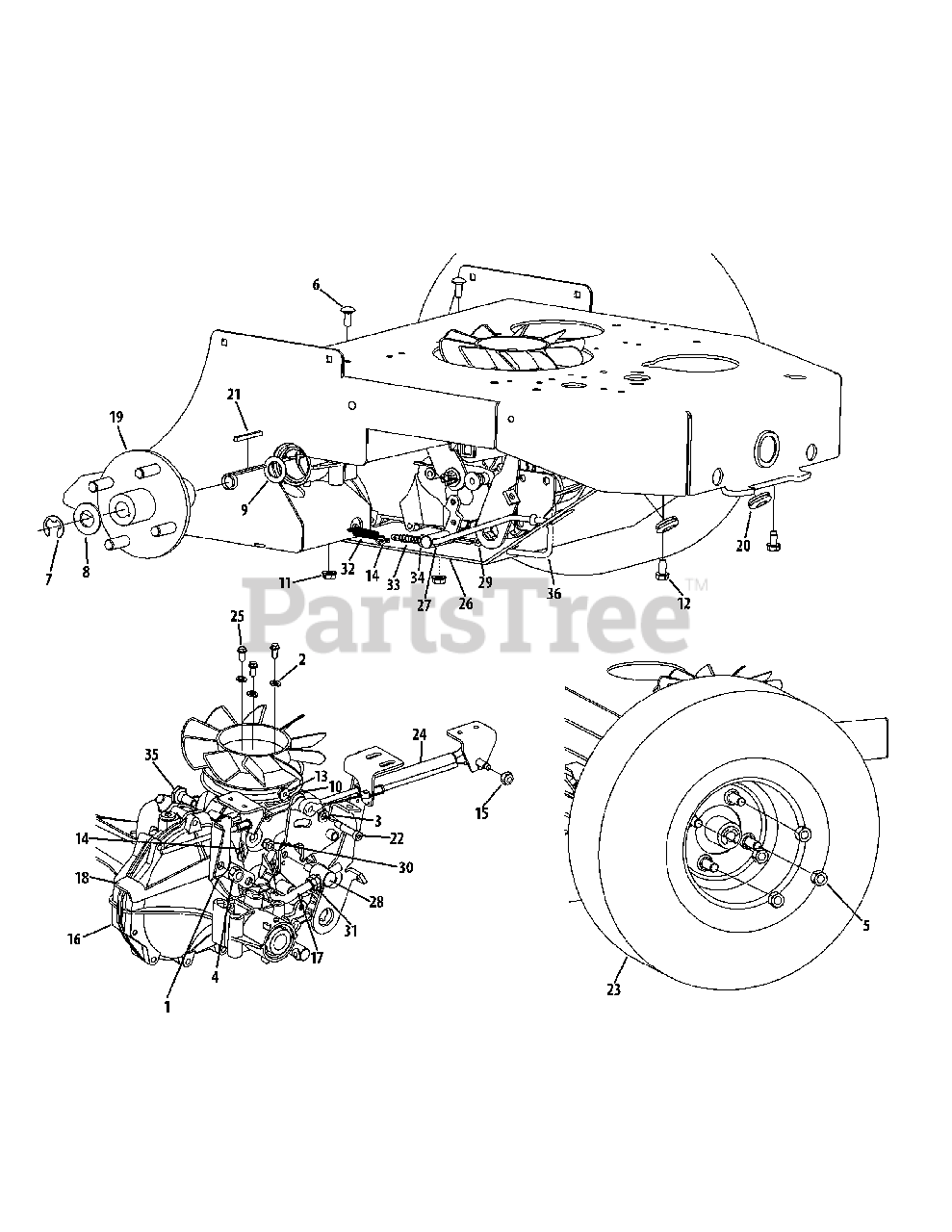

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 00011459

Washer, .563 x 1.38 x .109

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 13

0

3

Cub Cadet 00012169

Washer, .344 x .688 x .063

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.49

$

In Stock, Qty 9

0

6

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.49

$

In Stock, only 3 left!

0

7

Cub Cadet 00021961

E-Ring, #5133-75

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00023796

Flat Washer, .750 x 1.50 x .120

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 00060017

Flat Washer, .06 x .776 x 1.25
(Superseded to 736-05151)

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 936-0463

Flat Washer, 1/4 x .630 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0604A

Hex Screw, 5/16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 914-0104

Internal Cotter Pin, .072 x 1.12
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003561

Hex Nut, M8X

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01007935P

Hydro Transmission

$1332.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009148

Brake Lever Rod

$

$

Not available

18

Cub Cadet 01009149

Brake Lever

$

$

Not available

19

Cub Cadet 01009246

Wheel Hub Assembly

$109.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009366

Rubber Grommet, .625 x 1.125

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009458

Key, 3/16 x 3/16 x 2

$

$

Not available

22

Cub Cadet 01009737

Shoulder Bolt, 5/16 x 1.00

$

$

Not available

23

Cub Cadet 01009827

Wheel Assembly, 18 x 6.50-8

$

$

Not available

24

Cub Cadet 01009829

Damper Assembly

$122.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01010129

Hex Screw, 12-24 x .50

$4.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 703-07012-0637

Transmission Skid Plate

$

$

Not available

27

Cub Cadet 711-05108

Ferrule, .625 x .25

$

$

Not available

28

Cub Cadet 711-05207

Ferrule, .750 x .313

$

$

Not available

29

Cub Cadet 712-0161

Hex Lock Nut, #10-24

$4.49

$

In Stock, Qty 9

0

30

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0711

Jam Nut, 3/8-24

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 732-04632

Extension Spring, .38 x .035 x 2.00

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-04636

Compression Spring, .340 x 1.38

$

$

Not available

34

Cub Cadet 936-0175

Spring Washer, .265 x .562 x .02

$3.99

$

In Stock, only 3 left!

0

35

Cub Cadet 938-0380

Shoulder Bolt, .500 x .270 x 3/8
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

36

Cub Cadet 747-05070

Bypass Rod

$22.99

$

Usually ships in 3-6 days

0
