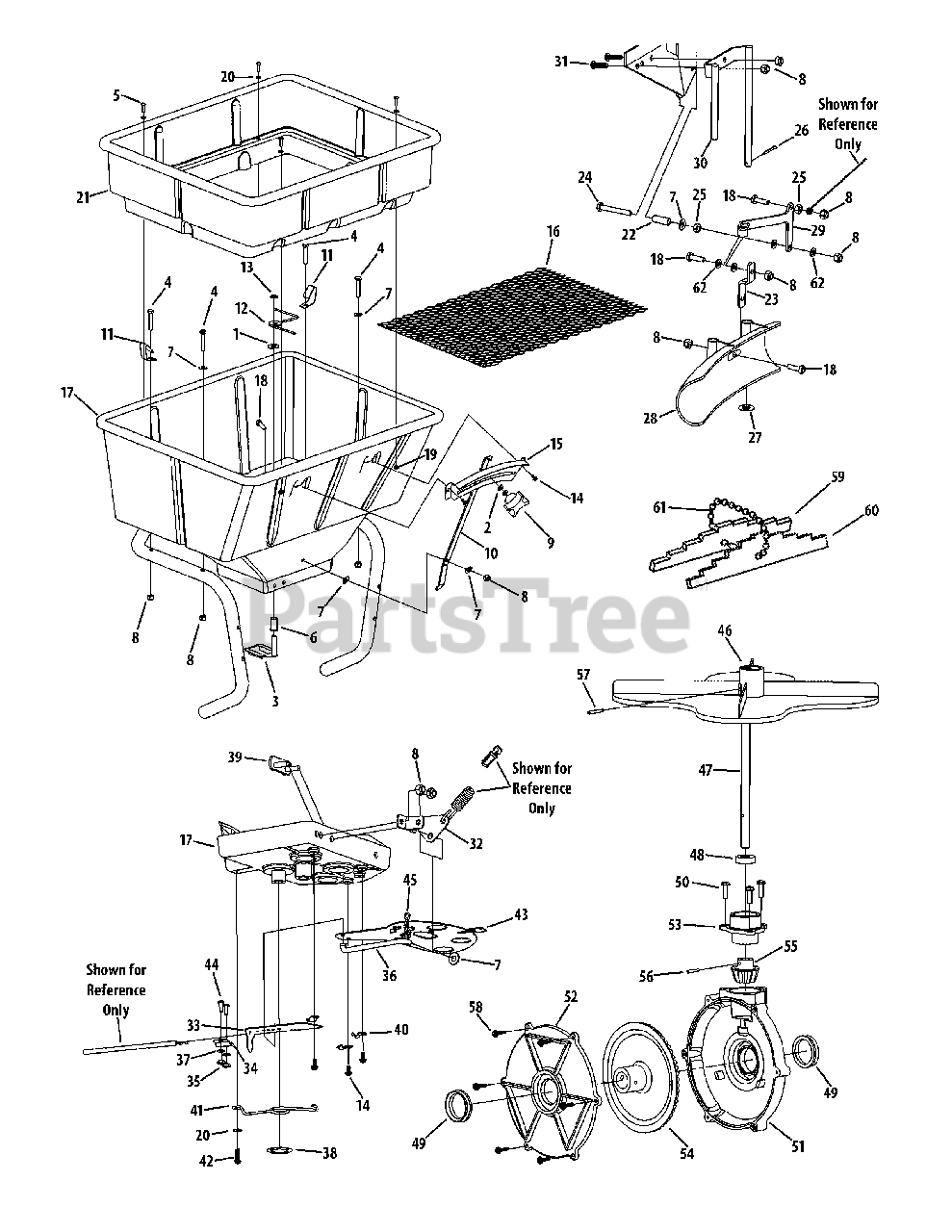

56A443TH750 - Cub Cadet XP Stand-On Spreader (2011) General Assembly Parts Diagram

XP Stand-On Spreader

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00005530

Flat Washer, .406 x .812 x .062
(Superseded to 736-04070)

$

$

Not available

2

Cub Cadet 01000128

Nylon Washer, 1/4
(Superseded to 736-05154)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00030322

Agitator Cam Assembly
(Superseded to 680-00430)

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00031167

Hex Screw, 1/4-20 x 1.50
(Superseded to 710-06430)

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00035678

Hex Screw, 10-24 x 3/4

$

$

Not available

6

Cub Cadet 00060027

Agitator Bearing Shaft
(Superseded to 741-05180)

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00060033

Flat Washer, 1/4
(Superseded to 736-05152)

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0324

Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00060043

Control Rate Knob

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00060044

Rate Control Arm
(Superseded to 680-00407)

$42.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00060046

Screen Clip
(Superseded to 703-10298)

$9.49

$

In Stock, only 2 left!

0

12

Cub Cadet 00060049

Agitator Arm Assembly
(Superseded to 680-00408)

$27.99

$

In Stock, only 4 left!

0

13

Cub Cadet 00060050

Retainer Spring Clip, 3/8
(Superseded to 712-05144)

$8.49

$

In Stock, only 1 left!

0

14

Cub Cadet 01005631

Hex Washer Screw, #8 x 3/8
(Superseded to 710-06434)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01006772

Numeric Rate Plate
(Superseded to 703-10302)

$32.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01010116

Screen, 80-pound
(Superseded to 703-10305)

$83.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02004176

80-pound Hopper Assembly

$

$

Not available

18

Cub Cadet 00060057

Machine Screw, 1/4-20 x 7/8

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00070027

Nut, #10-24

$

$

Not available

20

Cub Cadet 01005630

Flat Washer, #8
(Superseded to 736-05155)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009729

80-pound Hopper Extension

$219.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 00030503

Deflector Arm Mount Spacer

$32.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 00035030

Offset Bracket Deflector

$26.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 00060029

Machine Screw, 1/4-20 x 2

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 00060059

Nut, 1/4-20

$2.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 00061052

Cotter Pin, 1/8 x 1

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet 00061053

Flat Washer, 3/8

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 00061066

Deflector Tube

$18.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01006253

Bracket/Tube Mount Deflector Lever

$21.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01006254

Tube Mount Deflector Weldment

$85.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02000775

Socket Screw, 1/4-20 x .875

$

$

Not available

32

Cub Cadet 00017288

Electric Pivot Lever Assembly

$

$

Not available

33

Cub Cadet 00020492

Slide Lever
(Superseded to 703-10296)

$7.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 00020511

Remote 3rd-Hole Wire Bracket

$11.99

$

In Stock, only 3 left!

0

35

Cub Cadet 00060056

Nut, 8-32

$6.49

$

In Stock, only 1 left!

0

36

Cub Cadet 00060061

Pivot Lever Rod
(Superseded to 747-06600)

$25.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 00060083

Lock Washer, #8

$3.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 01004186

Service Clip Spring
(Superseded to 726-05074)

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet 01004539

Two-Hole Plate Weldment
(Superseded to 680-00405)

$32.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 01004955

Shut-Off Plate Clip
(Superseded to 726-05075)

$5.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01004956

Shut-Off Plate Spring

$9.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 01005632

Hex Washer Screw, #8 x 5/8
(Superseded to 710-06435)

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 01006825

Shut-Off Plate
(Superseded to 703-10303)

$49.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01009496

Hex Screw, 8-32 x 1/2

$

$

Not available

45

Cub Cadet 02004552

Bow-Tie Cotter Pin
(Superseded to 714-05019)

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 00030317

Impeller

$55.99

$

In Stock, only 2 left!

0

47

Cub Cadet 00030382

Impeller Shaft
(Superseded to 711-06555)

$39.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 00030384

Oil Gearset Seal
(Superseded to 721-04820)

$15.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 00030385

V Gearset Seal

$12.99

$

In Stock, only 2 left!

0

50

Cub Cadet 00030415

Screw, #10
(Superseded to 710-06429)

$3.99

$

In Stock, only 2 left!

0

51

Cub Cadet 00030591

Gearset Housing
(Superseded to 731-11584)

$50.99

$

In Stock, only 1 left!

0

52

Cub Cadet 00030592

Gearset Cover
(Superseded to 731-11585)

$39.99

$

In Stock, only 1 left!

0

52

Cub Cadet 00030592

Gearset Cover
(Superseded to 731-11585)

$39.99

$

In Stock, only 1 left!

0

53

Cub Cadet 00030593

Gearset Cap
(Superseded to 731-11586)

$32.99

$

In Stock, only 1 left!

0

54

Cub Cadet 00030594

Gearset Bevel Gear
(Superseded to 731-11587)

$38.99

$

In Stock, only 1 left!

0

55

Cub Cadet 00030595

Pinion Gearbox Gear
(Superseded to 731-11588)

$21.99

$

In Stock, Qty 6

0

56

Cub Cadet 00060022

Roller Pin, 1/8 x 5/8

$3.99

$

In Stock, Qty 10

0

57

Cub Cadet 00060069

Roller Pin, 1/8 x 7/8

$4.49

$

In Stock, Qty 10

0

58

Cub Cadet 01000129

Hex Washer Screw, #6 x 5/8
(Superseded to 710-06432)

$3.99

$

In Stock, only 3 left!

0

59

Cub Cadet 00009742

Calibration Gauge, Odd
(Superseded to 731-11578)

$6.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 00009746

Calibration Gauge, Even
(Superseded to 731-11579)

$6.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 00009941

Calibration Gauge Chain
(Superseded to 713-05035)

$3.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 00018628

Nylon Washer, 1/4

$3.49

$

Usually ships in 3-6 days

0
