56A443TH750 - Cub Cadet XP Stand-On Spreader (2011) Kawasaki FJ180V-AS05 Controls 1 Parts Diagram

XP Stand-On Spreader

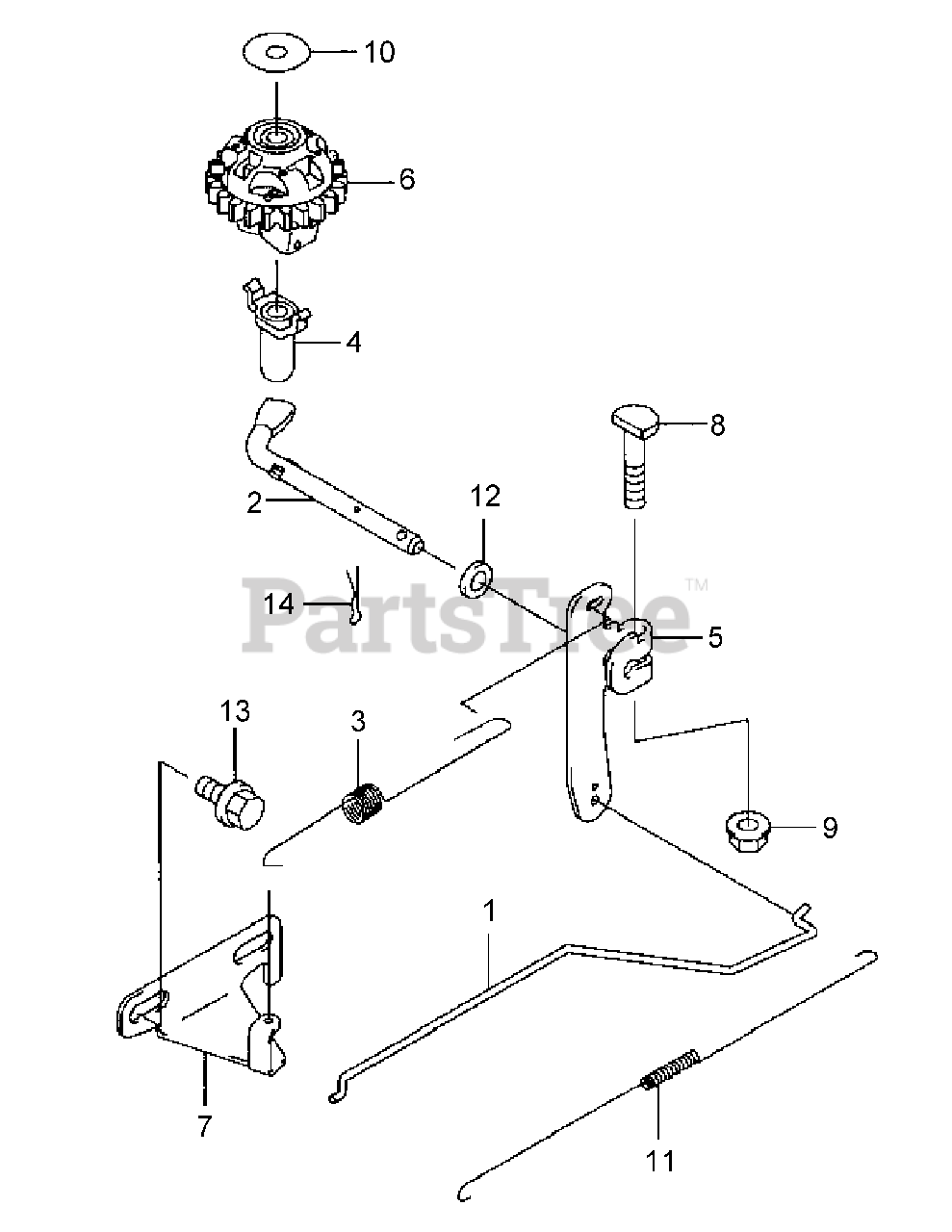

Kawasaki FJ180V-AS05 Controls 1 Parts Diagram

  • Title

1

Cub Cadet KM-16171-7015

Throttle Link
(Superseded to KM-16171-2106)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KM-39003-7002

Pivot Arm

$11.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-39129-7007

Governor Spring

$1.99

$

In Stock, Qty 6

0

4

Cub Cadet KM-42036-2096

Sleeve
(Superseded to KM-42036-2051)

$

$

Not available

5

Cub Cadet KM-49103-7005

Governor Arm

$2.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-49110-7002

Governor Assy.

$

$

Not available

7

Cub Cadet KM-59226-7014

Control Panel

$

$

Not available

8

Cub Cadet KM-92002-2269

Bolt

$1.99

$

In Stock, Qty 6

0

9

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet KM-92200-2036

Spacer

$1.49

$

In Stock, Qty 5

0

11

Cub Cadet KM-92145-7025

Throttle Spring
(Superseded to KM-92145-2182)

$0.99

$

In Stock, Qty 11

0

12

Cub Cadet KM-92200-2029

Washer, 6.5x11.5x2.0

$0.99

$

In Stock, only 3 left!

0

13

Cub Cadet KM-130BA0612

Flanged Bolt

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-554A0600

Snap Pin

$

$

Not available
