56A443TH750 - Cub Cadet XP Stand-On Spreader (2011) Transmission Assembly Parts Diagram

XP Stand-On Spreader

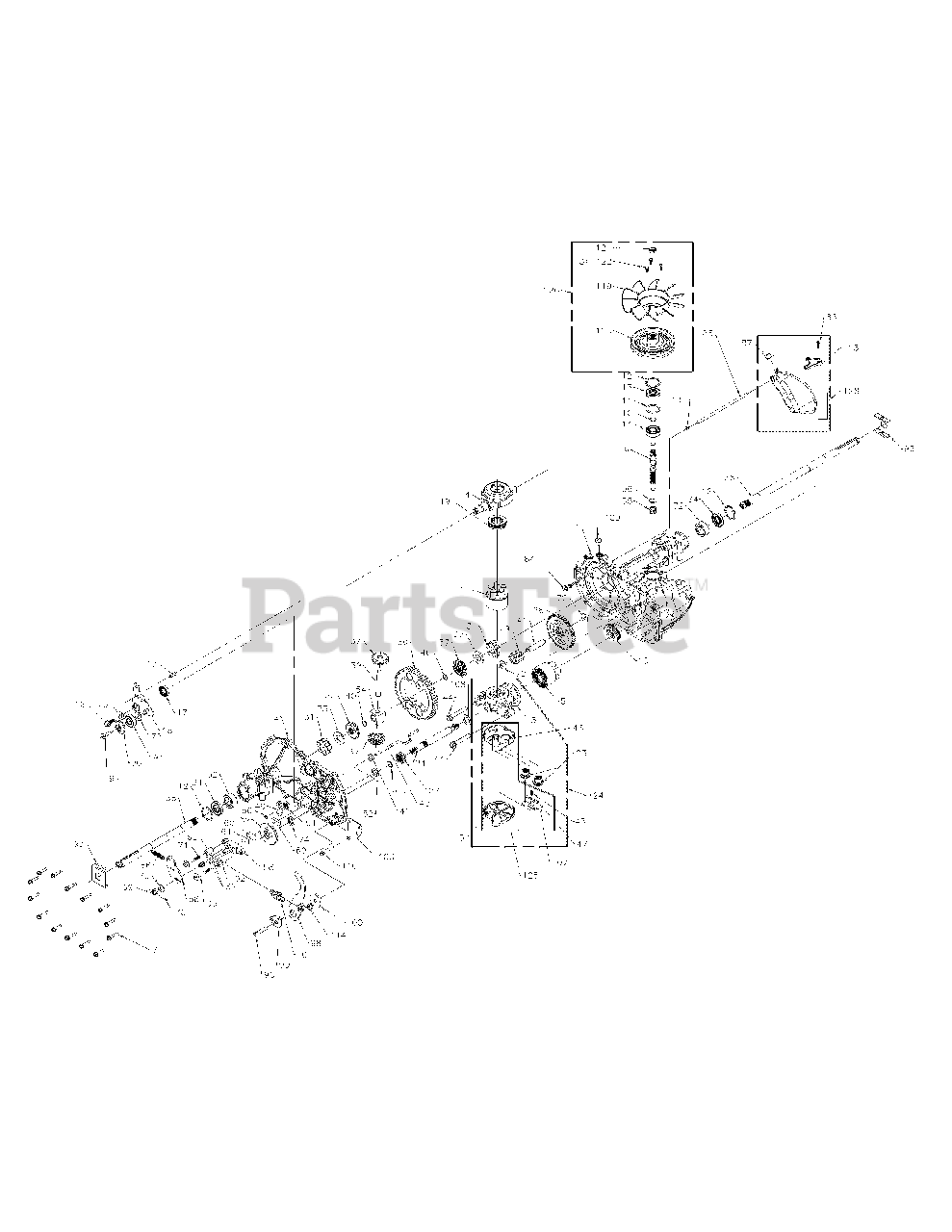

Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet HG-70467

Main Housing, Assembly

$246.99

$

In Stock, only 1 left!

0

1

Cub Cadet N/A

Main Housing

$

$

Currently unavailable

1

Cub Cadet N/A

Bushing .865 X .985 X .790

$

$

Currently unavailable

1

Cub Cadet N/A

Pin, Standard Headless

$

$

Currently unavailable

2

Cub Cadet HG-70483

Side Housing, Assembly

$159.99

$

Usually ships in 3-6 days

0

2

Cub Cadet N/A

Side Housing

$

$

Currently unavailable

2

Cub Cadet N/A

Bushing .865 X .985 X .790

$

$

Currently unavailable

2

Cub Cadet N/A

Bushing .624 X .719 X .562

$

$

Currently unavailable

3

Cub Cadet HG-70477

Center Section, Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet N/A

Center Section

$

$

Currently unavailable

3

Cub Cadet N/A

Bushing .707 X .788 X .591

$

$

Currently unavailable

4

Cub Cadet HG-51048

Trunnion, Swashplate

$82.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-70331

Block, Assembly

$175.99

$

Usually ships in 3-6 days

0

5

Cub Cadet N/A

Block, Cylinder

$

$

Currently unavailable

5

Cub Cadet N/A

Piston

$

$

Currently unavailable

5

Cub Cadet N/A

Spring, Compression

$

$

Currently unavailable

5

Cub Cadet N/A

Washer, Thrust

$

$

Currently unavailable

7

Cub Cadet HG-53246

Screw, Hex Flange 1/4-20 X 1.25

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-51062

Shaft, Input
(Superseded to HG-51062P)

$124.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2000022

Ring, Retaining

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50951

Spacer

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50329

Ring, Retaining

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-51161

Seal, Lip 17 X 40 X 7

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-50315

Bearing Ball 17mm ID X 40mm OD X 12mm

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-51064

Bolt, Hex Flange Head 5/16-24 X .94 (Patch)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-51140

Seal, Lip 18 X 32 X 7

$9.49

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-51121

Arm, Control

$

$

Not available

19

Cub Cadet HG-50551P

Bearing, Thrust 30 X 52 X 13

$27.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-51084

Check Plug Assembly, .027 Washer

$33.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-50966

Shaft, Motor

$60.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-51130

Gear, 13T Pinnion

$8.99

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-51129

Gear, 10T/48T

$49.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-51043

Gear 10T Jackshaft

$26.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51044

Gear, 60T Bull
(Superseded to HG-71829)

$91.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51088

Bushing, Sleeve (Inboard)

$10.99

$

In Stock, only 3 left!

0

32

Cub Cadet HG-51089

Bushing, Sleeve .75 X 1.575 X .625

$11.99

$

In Stock, only 4 left!

0

33

Cub Cadet HG-44875

Washer, 3/4 ID X 1-1/2 OD X .13 THK

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51066

Seal, Lip .75 X 1.577 X .250

$8.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 731-05846

Shaft, Axel .75 X 12.14 (Keyed, R.H.)

$22.99

$

In Stock, only 3 left!

0

36

Cub Cadet HG-51353

Shaft, Axel .75 X 17.74 (Keyed, L.H.)

$

$

Not available

37

Cub Cadet HG-71310

Kit, Miter Gear

$

$

Not available

37

Cub Cadet N/A

Gear, Miter 12T (Splined)

$

$

Currently unavailable

37

Cub Cadet N/A

Gear, Miter 12T (.50 ID)

$

$

Currently unavailable

37

Cub Cadet N/A

Bulletin, Miter Gear

$

$

Currently unavailable

39

Cub Cadet HG-50146

Shaft, Diff

$

$

Not available

40

Cub Cadet HG-44871

Ring, Spiral Retaining

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51083

Pin, Jackshaft

$30.99

$

Usually ships in 3-6 days

0

42

Cub Cadet HG-51100

Magnet, Ring

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-51136

Spring, Bypass

$

$

Not available

44

Cub Cadet HG-50016

Bolt, Hex Flange 3/8-24 X 2.5

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet HG-51581

Bottom, Filter

$12.99

$

Usually ships in 3-6 days

0

46

Cub Cadet HG-51580

Base, Filter with Poppet

$

$

Not available

47

Cub Cadet HG-51091

Actuator, Bypass

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet HG-51098

Rod, Actuator Bypass

$23.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-51135

Arm, Bypass

$7.99

$

In Stock, only 1 left!

0

50

Cub Cadet HG-51116

Ring, Retaining .250 External

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-51081

Seal, Lip .250 X .750 X .250 TC

$7.49

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-44371

Washer, Flat 5/8 ID X 1.0 OD X .05

$14.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-44145

Ring, Retaining

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-51071

Bushing, Center Block

$

$

Not available

55

Cub Cadet HG-2003014

Spring, Block

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-2003017

Washer, Thrust

$3.99

$

Usually ships in 3-6 days

0

58

Cub Cadet HG-62589

Kit, Brake Yoke

$42.99

$

Usually ships in 3-6 days

0

58

Cub Cadet N/A

Yoke, Brake

$

$

Currently unavailable

58

Cub Cadet N/A

Bolt, SQ.HD. 5/16-24- Ribbed

$

$

Currently unavailable

59

Cub Cadet HG-51072

Rotor, Brake

$16.99

$

In Stock, Qty 7

0

60

Cub Cadet 917-0678

Puck, Brake

$6.99

$

In Stock, Qty 20+

0

61

Cub Cadet 917-0682

Plate, Puck

$9.49

$

In Stock, Qty 7

0

62

Cub Cadet 941-0343

Pin, Brake Actuating
(Superseded to 741-0343)

$

$

Not available

63

Cub Cadet HG-51146

Screw, Special Flange 1/4-20 X 2 W/ Patch

$3.49

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-23711

Spacer

$11.99

$

Usually ships in 3-6 days

0

66

Cub Cadet HG-51607

Spring, Brake Arm Bias

$

$

Not available

68

Cub Cadet HG-44094

Arm, Brake

$8.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 912-0273

Nut, Castle 5/16-24

$4.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 914-0507

Pin, Cotter 3/32 X 3/4

$4.49

$

In Stock, Qty 19

0

71

Cub Cadet HG-50919

Spring, Compression Brake Anti-Drag

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet HG-50132

Washer, HT .5 ID X 1 OD X .032

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 736-0371

Washer, Flat 11/32 ID X 7/8 OD

$4.49

$

In Stock, Qty 7

0

74

Cub Cadet HG-70719

Seal, Lip .625 X 1.0 X .25

$13.99

$

Usually ships in 3-6 days

0

84

Cub Cadet HG-51143

Fitting, 5/16 SAE 5/32 Tube

$14.99

$

Usually ships in 3-6 days

0

85

Cub Cadet HG-51147

Hose, Expansion Tank

$4.99

$

Usually ships in 3-6 days

0

87

Cub Cadet HG-51251

Cap, Expansion

$

$

Not available

88

Cub Cadet HG-50653

Bolt, Self Tapping 10-32 X1/2

$

$

Not available

93

Cub Cadet HG-51118

Spring Clip, Housing Thrust

$

$

Not available

94

Cub Cadet HG-44147

Bearing, Ball .62 ID X 1.38 X .44

$34.99

$

Usually ships in 3-6 days

0

95

Cub Cadet HG-50837

Screw, Socket Head Cap 5/16-24 X 1-1/2

$3.49

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-51200

Spacer, Locating

$6.99

$

Usually ships in 3-6 days

0

97

Cub Cadet HG-50870

Screw, Countersunk 5/16-18 X 1

$

$

Not available

98

Cub Cadet HG-51356

Arm, Return

$

$

Not available

99

Cub Cadet HG-51097

Puck, Adjusting

$10.99

$

Usually ships in 3-6 days

0

100

Cub Cadet HG-51122

Washer, .32 OD X 1.60 ID X .24
(Superseded to HG-52493)

$4.99

$

Usually ships in 3-6 days

0

101

Cub Cadet HG-51131

Spring, Extension Double Loop

$5.49

$

Usually ships in 3-6 days

0

102

Cub Cadet HG-51123

Spacer, .260 ID X .560 OD X .870

$

$

Not available

103

Cub Cadet HG-51355

Bracket, Torque

$

$

Not available

107

Cub Cadet HG-51134

Deflector

$

$

Not available

108

Cub Cadet HG-51069

Washer, Motor Shaft .71 ID X 1.15 OD X .030 THK

$3.99

$

Usually ships in 3-6 days

0

109

Cub Cadet HG-9005110-5600

Plug, 9/16-18 (Metal)

$18.99

$

Usually ships in 3-6 days

0

110

Cub Cadet HG-50868

Screw, Torx Head 5/16-18 T.F.

$2.99

$

Usually ships in 3-6 days

0

111

Cub Cadet HG-51144

O-Ring .103 ID X .299 OD

$4.49

$

Usually ships in 3-6 days

0

113

Cub Cadet HG-51179

Bracket, Support Expansion Tank

$3.49

$

Usually ships in 3-6 days

0

114

Cub Cadet HG-51184

Spring Guide

$

$

Not available

117

Cub Cadet HG-51124

Pin, Spring

$

$

Not available

119

Cub Cadet HG-50848

Fan, 7 IN 10 Blade

$19.99

$

Usually ships in 3-6 days

0

120

Cub Cadet HG-51434

Pulley, 4.79 Inch

$29.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 912-0346

Nut, Hex Lock 1/2-20 (Nylon Insert)
(Superseded to 712-0346)

$4.49

$

In Stock, Qty 19

0

122

Cub Cadet HG-50851

Screw, Tapping, Hex Washer Head, 12-24 X .50

$

$

Not available

124

Cub Cadet HG-70759

Center Section, Filter, Bypass Assembly

$210.99

$

Usually ships in 3-6 days

0

124

Cub Cadet N/A

Center Section

$

$

Currently unavailable

124

Cub Cadet N/A

Base, Filter with Poppet

$

$

Currently unavailable

124

Cub Cadet N/A

Check Plug Assembly, .027 Washer

$

$

Currently unavailable

124

Cub Cadet N/A

Spring, Bypass

$

$

Currently unavailable

124

Cub Cadet N/A

Actuator, Bypass

$

$

Currently unavailable

124

Cub Cadet N/A

Deflector

$

$

Currently unavailable

124

Cub Cadet N/A

Bottom, Filter

$

$

Currently unavailable

124

Cub Cadet N/A

Bushing, .707 X .788 X .591

$

$

Currently unavailable

125

Cub Cadet HG-70756

Filter Assembly

$25.99

$

Usually ships in 3-6 days

0

125

Cub Cadet N/A

Bottom, Filter

$

$

Currently unavailable

125

Cub Cadet N/A

Base, Filter with Poppet

$

$

Currently unavailable

125

Cub Cadet N/A

Spring, Bypass

$

$

Currently unavailable

125

Cub Cadet N/A

Actuator, Bypass

$

$

Currently unavailable

125

Cub Cadet N/A

Deflector

$

$

Currently unavailable

126

Cub Cadet N/A

Kit, Fan/Pulley

$

$

Currently unavailable

126

Cub Cadet N/A

Fan, 7 IN 10 Blade

$

$

Currently unavailable

126

Cub Cadet N/A

Pulley, 4.79 Inch

$

$

Currently unavailable

126

Cub Cadet N/A

Nut, Hex Lock 1/2-20 (Nylon Insert)

$

$

Currently unavailable

126

Cub Cadet N/A

Screw, Tapping, Hex Washer Head, 12-24 X .50

$

$

Currently unavailable

128

Cub Cadet HG-70503

Kit, Expansion Tank

$35.99

$

Usually ships in 3-6 days

0

128

Cub Cadet N/A

Tank, Expansion

$

$

Currently unavailable

128

Cub Cadet N/A

Cap, Expansion

$

$

Currently unavailable

128

Cub Cadet N/A

Bolt, Self Tapping 10-32 X1/2

$

$

Currently unavailable

128

Cub Cadet N/A

Bracket, Support Expansion Tank

$

$

Currently unavailable

Cub Cadet HG-70463

Seal, O-Ring Kit

$39.99

$

Usually ships in 3-6 days

0

Cub Cadet N/A

Seal, Lip 17 X 40 X 7

$

$

Currently unavailable

Cub Cadet N/A

Seal, Lip 18 X 32 X 7

$

$

Currently unavailable

Cub Cadet N/A

Seal, Lip .75 X 1.577 X .250

$

$

Currently unavailable

Cub Cadet N/A

Seal, Lip .250 X .750 X .250 TC

$

$

Currently unavailable

Cub Cadet N/A

Seal, Lip .625 X 1.0 X .25

$

$

Currently unavailable

Cub Cadet N/A

O-Ring .103 ID X .299 OD

$

$

Currently unavailable

Cub Cadet HG-50928

Sealant

$96.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Drive System Fluid
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 20+

0
