56A703OE750 - Cub Cadet 50 Gallon Sprayer (2011) Frame Assembly - 50 Gallon Parts Diagram

50 Gallon Sprayer

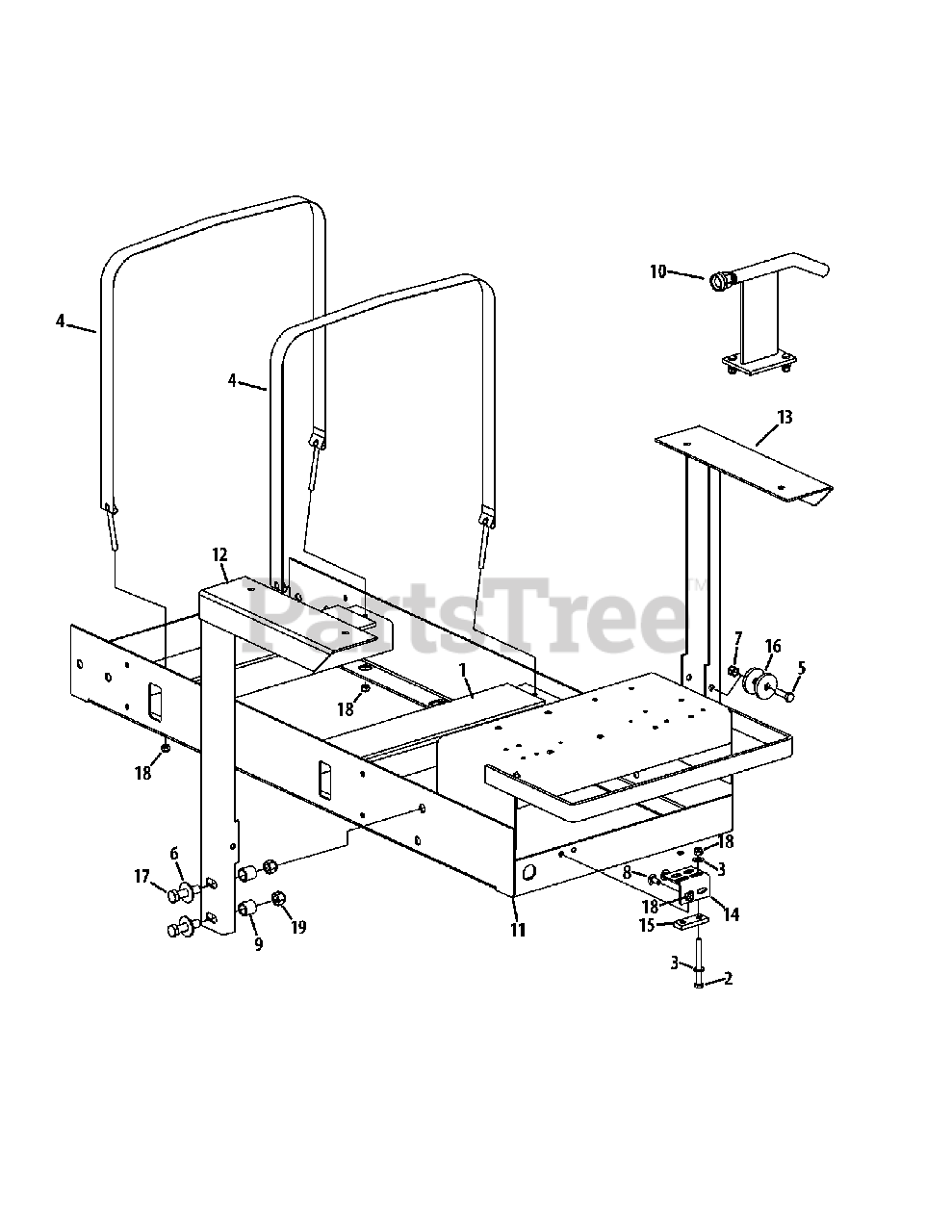

Frame Assembly - 50 Gallon Parts Diagram

  • Title

1

Cub Cadet 00008382

Adhesive Backed Foam 4 x 1/4

$

$

Not available

2

Cub Cadet 00009015

Hex Screw, 5/16-18 x 3.25

$

$

Not available

3

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

4

Cub Cadet 00010836

Tank Strap

$108.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00011444

Hex Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 00011459

Washer, .563 x 1.38 x .109

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .750

$6.49

$

In Stock, only 3 left!

0

9

Cub Cadet 750-3065

Spacer, .635 x .875 x .860

$9.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01001047

Air Gap Filler

$179.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01002009

Main Frame

$

$

Not available

12

Cub Cadet 01002028

LH Reel Support Assembly

$

$

Not available

13

Cub Cadet 01002029

RH Reel Support Assembly

$

$

Not available

14

Cub Cadet 01002641-0637

Mounting Bracket

$15.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01003525

Strainer Block Spacer

Variations

Cub Cadet 01003525-0637

BLOCK-STRAINER SPA - POWDER BLACK (0637)

$5.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-04131

Washer, .438 x 1.745 x .250

$14.99

$

In Stock, only 4 left!

0

17

Cub Cadet 710-0489

Hex Screw, 1/2-13 x 2.00

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0
