56A703QR750 - Cub Cadet 200 Gallon Sprayer (2011) Frame & Tank Assembly - 200 Gallon Compact Parts Diagram

200 Gallon Sprayer

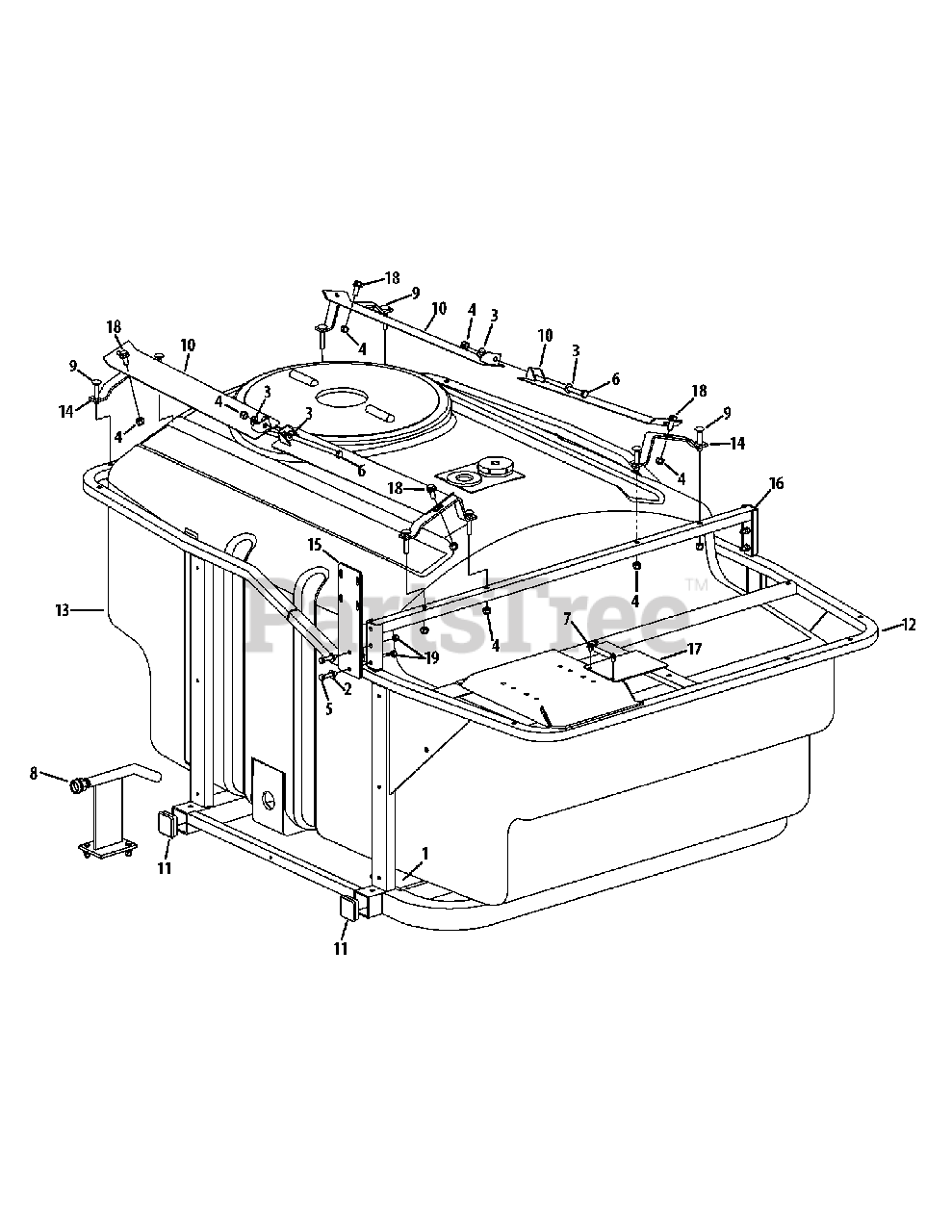

Frame & Tank Assembly - 200 Gallon Compact Parts Diagram

  • Title

1

Cub Cadet 00008382

Adhesive Backed Foam

$

$

Not available

2

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

3

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.49

$

In Stock, Qty 10

0

4

Cub Cadet 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012382

Hex Screw, 5/16-18 x 1.50

$

$

Not available

6

Cub Cadet 00035881

Hex Screw, 3/8-16 x 5.00

$

$

Not available

7

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01001047

Air Gap Filler

$179.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01002011

Carriage Bolt, 3/8-16 x 2.0

$

$

Not available

10

Cub Cadet 01004536

Tank Strap

$

$

Not available

11

Cub Cadet 01005160

Square Tube Plug

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01005185-0637

Main Frame
(Superseded to 01005200)

$

$

Not available

13

Cub Cadet 01005222

Tank Assembly

$

$

Not available

14

Cub Cadet 01005335-0637

Tank Strap Mount

$

$

Not available

15

Cub Cadet 01005506-0637

Strainer Mount Bracket

$

$

Not available

16

Cub Cadet 01005543-0637

Tank Strap Mount

$

$

Not available

17

Cub Cadet 01006351-0637

Decal Plate

$

$

Not available

18

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0
