56A843VK750 - Cub Cadet Commercial Turf Renovator Deck Assembly Kawasaki Parts Diagram

Commercial Turf Renovator

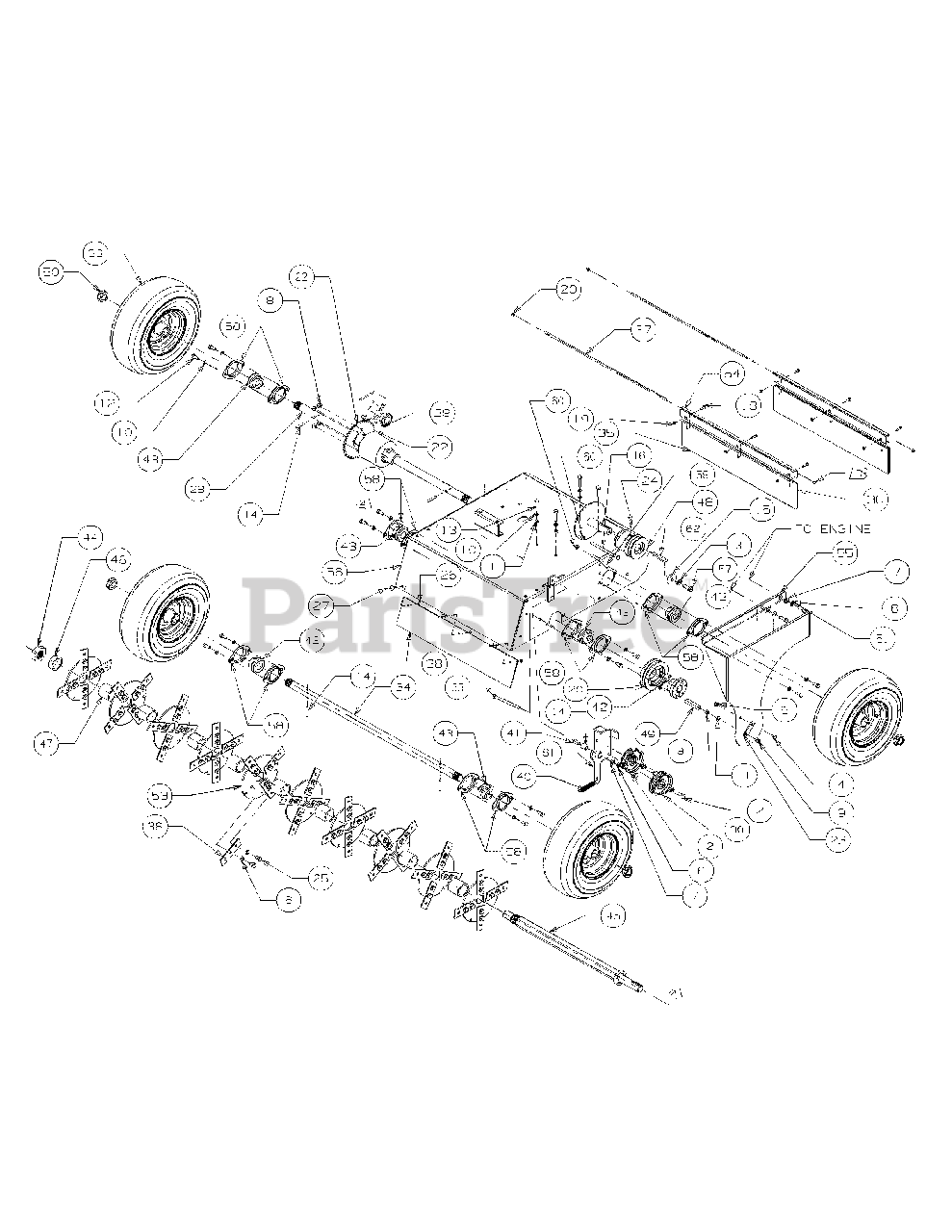

Deck Assembly Kawasaki Parts Diagram

  • Title

1

Cub Cadet 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012062

Lock Washer, M10

$

$

Not available

4

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x 1/2

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$3.99

$

In Stock, only 1 left!

0

6

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

10

Cub Cadet 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 00012179

Hex Cap Screw, 5/16-18 x 3/4

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

14

Cub Cadet 00013397

Groove Pin, 1/4 x 1-1/2

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00013675

Clutch Washer

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 00014394

Hex Cap Screw, M8-1.25, 120.0

$

$

Not available

17

Cub Cadet 00014601

Chain, Master Link 21-1/2

$230.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00014602

Round Head Machine Screw, 10-32 x 3/4

$

$

Not available

19

Cub Cadet 00014651

Nut, Keeper, #10-32

Note: NLA

$

$

Not available

20

Cub Cadet 00014655

Sheave Pulley

$241.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 00014673

Sheave Bushing

$88.99

$

In Stock, only 1 left!

0

22

Cub Cadet 00016338

Sprocket

$181.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 00016344

Belt Guard Bracket

$

$

Not available

24

Cub Cadet 00016358

Cap Screw, 5/16-18 x 5/16

$

$

Not available

25

Cub Cadet 00016362

Hex Cap Screw, 3/8-24 x 1/2

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet 00016771

Flat Washer, 3/16

$

$

Not available

27

Cub Cadet 00017732

POP, Rivet, 3/16

$

$

Not available

28

Cub Cadet 00021795P

Differential

$699.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 00021804

Push-On Cap, 1/4

$

$

Not available

30

Cub Cadet 00021810

Pulley

$25.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 00021811

Power Wedge COG 26.1" OD, Pump Belt

$40.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 00021812

2 Rib Blade Belt

$141.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 00021813

Wheel Assy, 13-5 x 6

$161.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 00021818

Shaft Agitator

$

$

Not available

35

Cub Cadet 00021819

Brush

$56.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 00021822

Brush Guard

$55.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 00021824

Brush Mounting Shaft

$

$

Not available

38

Cub Cadet 00030001

Heavy Duty Blade

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 00030014

Sprocket Drive Motor

$106.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 00030020

Reel Enlargement Spring

$12.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 00030342

Bellecrank Pivot Tube

$

$

Not available

42

Cub Cadet 00033670

Key, 1/4 x 1/4 x 1-1/4

$

$

Not available

43

Cub Cadet 00034995P

Flanged Ball Bearing

$112.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 00035603

Hex Lock Nut, 1-1/4-12

Note: NLA

$

$

Not available

45

Cub Cadet 00063635

Disc Shaft Assembly

$282.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 00064498

Disc Blade Spacer Assembly

$

$

Not available

47

Cub Cadet 00064591

Blade Disc Spacer

$

$

Not available

48

Cub Cadet 01000165

Double Pulley, 2.65 Dia. 3.15 Dia.

$251.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 01000395

Spacer, Stop Deck

$

$

Not available

50

Cub Cadet 712-3075

Jam Nut Insertion Lock, 1.0 -14
(Superseded to 712-05008)

$13.99

$

In Stock, Qty 5

0

51

Cub Cadet 710-3206A

Hex Cap Screw, M8-1.25 x 25mm

$3.99

$

In Stock, Qty 13

0

53

Cub Cadet 02004309

Disc Blade

$33.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 01002328-0637

Brush Clip Assembly

$47.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 01002369-4021

Belt Guard Assembly

$

$

Not available

56

Cub Cadet 01002373-4021

Power Deck Assembly

$

$

Not available

57

Cub Cadet 01002885

Hex Cap Screw, M10x1.5, 30mm, GR10.9

$

$

Not available

58

Cub Cadet 741-0242

Flange Bearing Cover

$10.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 01004981

Belt Guide Rod, M8-1.25

$

$

Not available

60

Cub Cadet 01004982

Hex Nut Center Lock, M8

$

$

Not available

61

Cub Cadet 00030341

Blade Clutch with Bearings, Bellecrank Assembly

$

$

Not available

62

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2-3/4

$11.99

$

In Stock, only 1 left!

0

63

Cub Cadet 02002974

Tap Bolt, 5/16-18 x 4.00

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 01001002

8HP Kawasaki Engine

$

$

Not available

Cub Cadet KM-11013-2128

Air Filter

$20.99

$

In Stock, only 2 left!

0

Cub Cadet KM-11013-2129

Pre Filter

$2.99

$

In Stock, Qty 9

0

Cub Cadet KM-49019-2051

Fuel Filter, Tank

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-49069-22779X

Muffler

$

$

Not available

Cub Cadet KM-11009-2487

Gasket Muffler

$4.99

$

In Stock, Qty 6

0

Cub Cadet KM-BPR5ES

Spark Plug

$3.49

$

In Stock, Qty 20+

0
