56A843VK750 - Cub Cadet Commercial Turf Renovator Hydraulic Assembly Parts Diagram

Commercial Turf Renovator

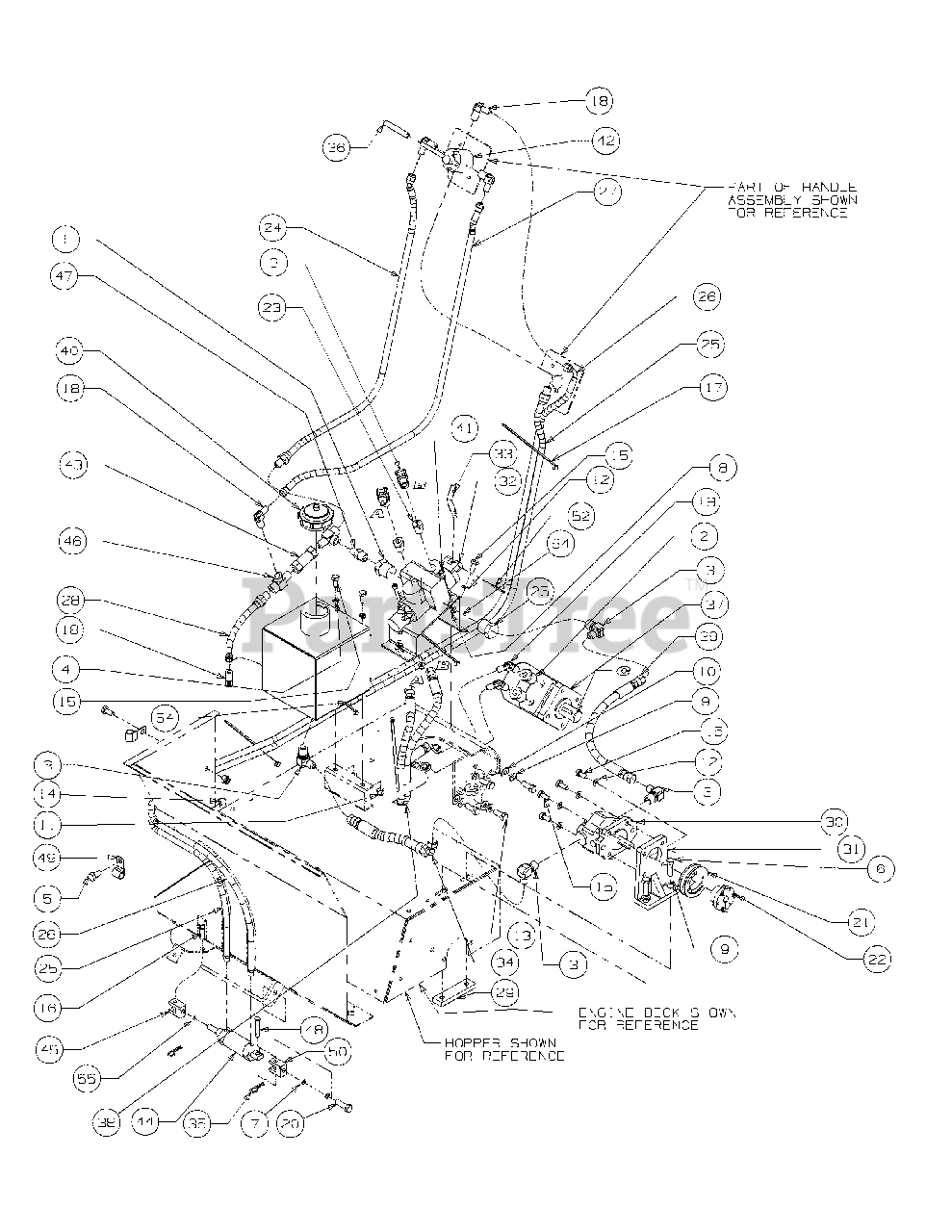

Hydraulic Assembly Parts Diagram

  • Title

1

Cub Cadet 00007615

Reducer Fitting, 3/4 x 3/8

$

$

Not available

2

Cub Cadet 00009164

Reducer Fitting, 1/2 x 1/4

$

$

Not available

3

Cub Cadet 00009758

Elbow Fitting

$

$

Not available

4

Cub Cadet 00011075

Flat Washer, 5/16

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x 3/4

$7.49

$

In Stock, Qty 18

0

6

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 00011453

Jam Hex Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 00012158

Flat Washer, 3/8

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 00012171

Hex Cap Screw, 3/8-16 x 1

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04065

Lock Nut, Nylon Insert 3/8-16

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 00012179

Hex Cap Screw, 5/16-18 x 3/4

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 00012191

Clevis Pin, 5/16 x 1

$

$

Not available

17

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 00012474

Hydraulic Fitting

$

$

Not available

19

Cub Cadet 00012529

Reel Return Line Sleeve, 1.25

$

$

Not available

20

Cub Cadet 00013575

Hex Cap Screw, 3/8-24 x 1-1/4

$

$

Not available

21

Cub Cadet 00014694

Sheave Pulley

$

$

Not available

22

Cub Cadet 00014717

Sheave Bushing Pulley Hub

$

$

Not available

23

Cub Cadet 00015971

Reducer Fitting, 3/8 x 1/4

Note: NLA

$

$

Not available

24

Cub Cadet 00021721

Valve To Valve Hose

$

$

Not available

25

Cub Cadet 00021722

Open Cylinder Hose

$116.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 00021723

Closed Cylinder Hose

$

$

Not available

27

Cub Cadet 00021724

Hose to Return Valve

$

$

Not available

28

Cub Cadet 00021725

Return Hose

$

$

Not available

29

Cub Cadet 00021788

Nut Bar, Pump

$

$

Not available

30

Cub Cadet 00021796

Pump

$805.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 00021798

Pump Mount

Note: NLA

$

$

Not available

32

Cub Cadet 00021814P

Valve

$

$

Not available

33

Cub Cadet 00021835

Handle Valve

$

$

Not available

34

Cub Cadet 00021836

Hydraulic Tank Blower Hose

$

$

Not available

35

Cub Cadet 00021956

3/8"-1/2" Hair Pin
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 00024084

Grip
(Superseded to 720-04183)

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 00030015

Hydraulic Motor

$

$

Not available

38

Cub Cadet 00030017

Hydraulic Motor Hose

$

$

Not available

39

Cub Cadet 00030018

Pressure Hose

$

$

Not available

40

Cub Cadet 00030261

Hydraulic Oil Tank Cap

$39.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 00031672

Capscrew, 1/4-20 x 1-1/2

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 00032035

Brand Select Valve

$

$

Not available

43

Cub Cadet 00032036

Pressure Relief Valve

$

$

Not available

44

Cub Cadet 00032060

Cylinder, 1-1/8 Bore

$

$

Not available

45

Cub Cadet 00032061

Clevis Cylinder

$

$

Not available

46

Cub Cadet 00032087

Aeroquip, Fitting

$

$

Not available

47

Cub Cadet 00032119

Aeroquip, Fitting

$

$

Not available

48

Cub Cadet 00032153

Clevis Pin, 5/16 x 1-5/8

$

$

Not available

49

Cub Cadet 00061502

Support Clamp, 3/4

$

$

Not available

50

Cub Cadet 00082435

Mounting Cylinder, Yoke

$

$

Not available

51

Cub Cadet 01000189

Teflon Tape, 1/2" Wide

$

$

Not available

52

Cub Cadet 01001308

Spring Pin, 1/8 x 1-3/8

$

$

Not available

52

Cub Cadet 01001308

Spring Pin, 1/8 x 1-3/8

$

$

Not available

53

Cub Cadet 01002334-0637

Valve Mounting Bracket

$

$

Not available

54

Cub Cadet 01002362-4021

Hydraulic Tank Assembly

$

$

Not available

55

Cub Cadet 712-3007

Jam Lock Nut, 5/16-18

$7.49

$

Usually ships in 3-6 days

0
