56A843VK750 - Cub Cadet Commercial Turf Renovator Kawasaki FE250D-AS09 Carburetor Parts Diagram

Commercial Turf Renovator

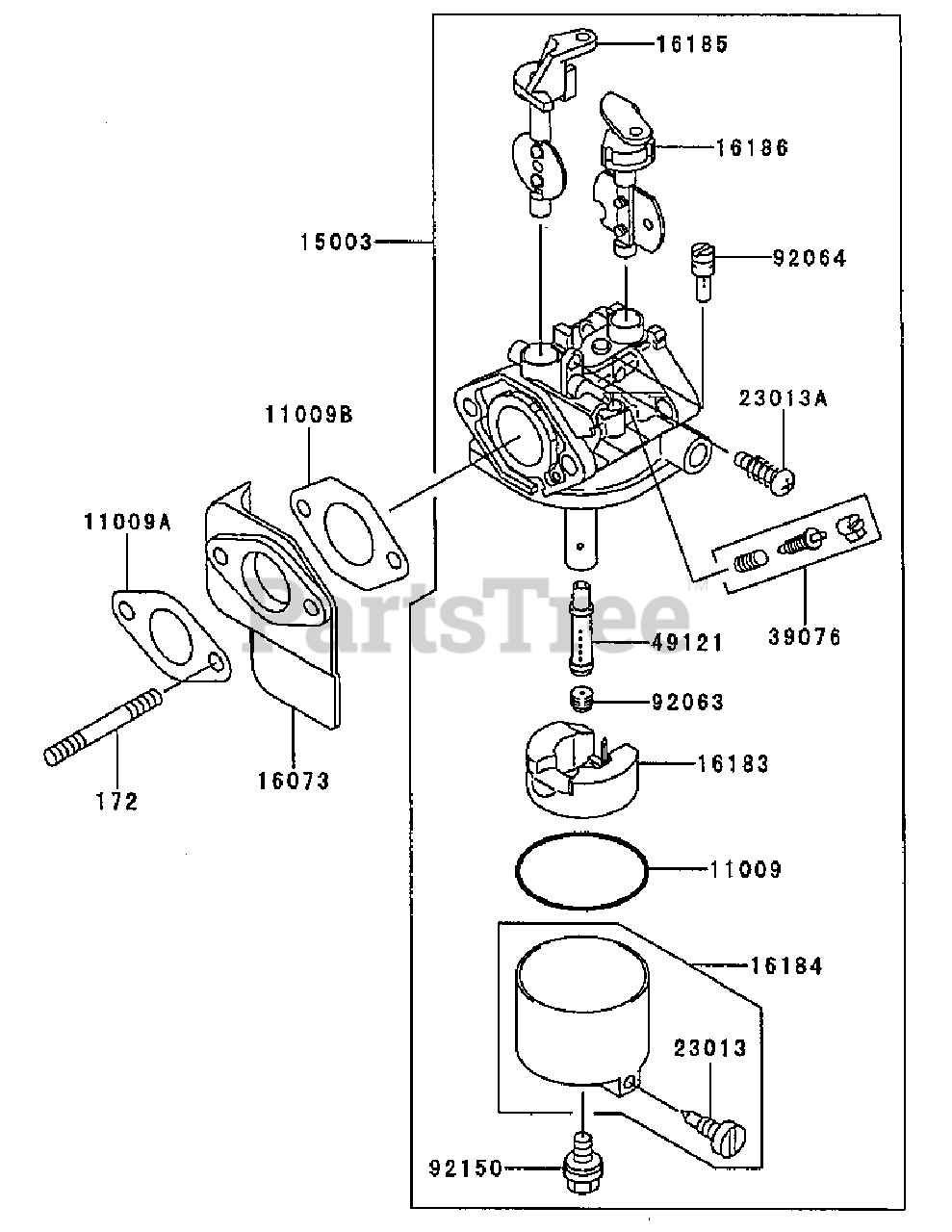

Kawasaki FE250D-AS09 Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11060-2335

Gasket

$1.99

$

In Stock, Qty 9

0

11009A

Cub Cadet KM-11060-2336

Gasket, Insulator

$1.49

$

In Stock, Qty 19

0

11009B

Cub Cadet KM-11009-2928

Gasket, Carburetor

$

$

Currently unavailable

15003

Cub Cadet KM-15003-2646

Carburetor- Assy

$274.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-2150

Insul;ator

$5.99

$

In Stock, only 4 left!

0

16183

Cub Cadet KM-16183-2005

Float-Assy

$54.99

$

In Stock, only 1 left!

0

16184

Cub Cadet KM-16184-2002

Chamber-Assy-Float

$55.99

$

Usually ships in 2-5 days

0

16185

Cub Cadet KM-16185-2003

Valve-Assy-Throttle

$64.99

$

In Stock, only 1 left!

0

16186

Cub Cadet KM-16186-2002

Valve-Assy-Choke

$72.99

$

Usually ships in 2-5 days

0

23013

Cub Cadet KM-23013-2053

Screw-Assy

$13.99

$

Usually ships in 2-5 days

0

23013A

Cub Cadet KM-23013-2054

Screw-Assy

$10.99

$

Usually ships in 2-5 days

0

39076

Cub Cadet KM-39076-2055

Limiter

$13.99

$

Usually ships in 2-5 days

0

49121

Cub Cadet KM-49121-2210

Nozzle-Main

$20.99

$

Usually ships in 2-5 days

0

92063

Cub Cadet KM-92063-2284

Jet-Main, #80

$12.99

$

In Stock, only 1 left!

0

92064

Cub Cadet KM-92064-2086

Jet-Pilot, #40

$16.99

$

In Stock, only 1 left!

0

92150

Cub Cadet KM-92150-2209

Bolt

$9.49

$

In Stock, only 1 left!

0

172

Cub Cadet KM-172G0677

Bolt-Stud

$

$

Not available
