56A843VK750 - Cub Cadet Commercial Turf Renovator Kawasaki FE250D-AS09 Cylinder & Crankcase Parts Diagram

Commercial Turf Renovator

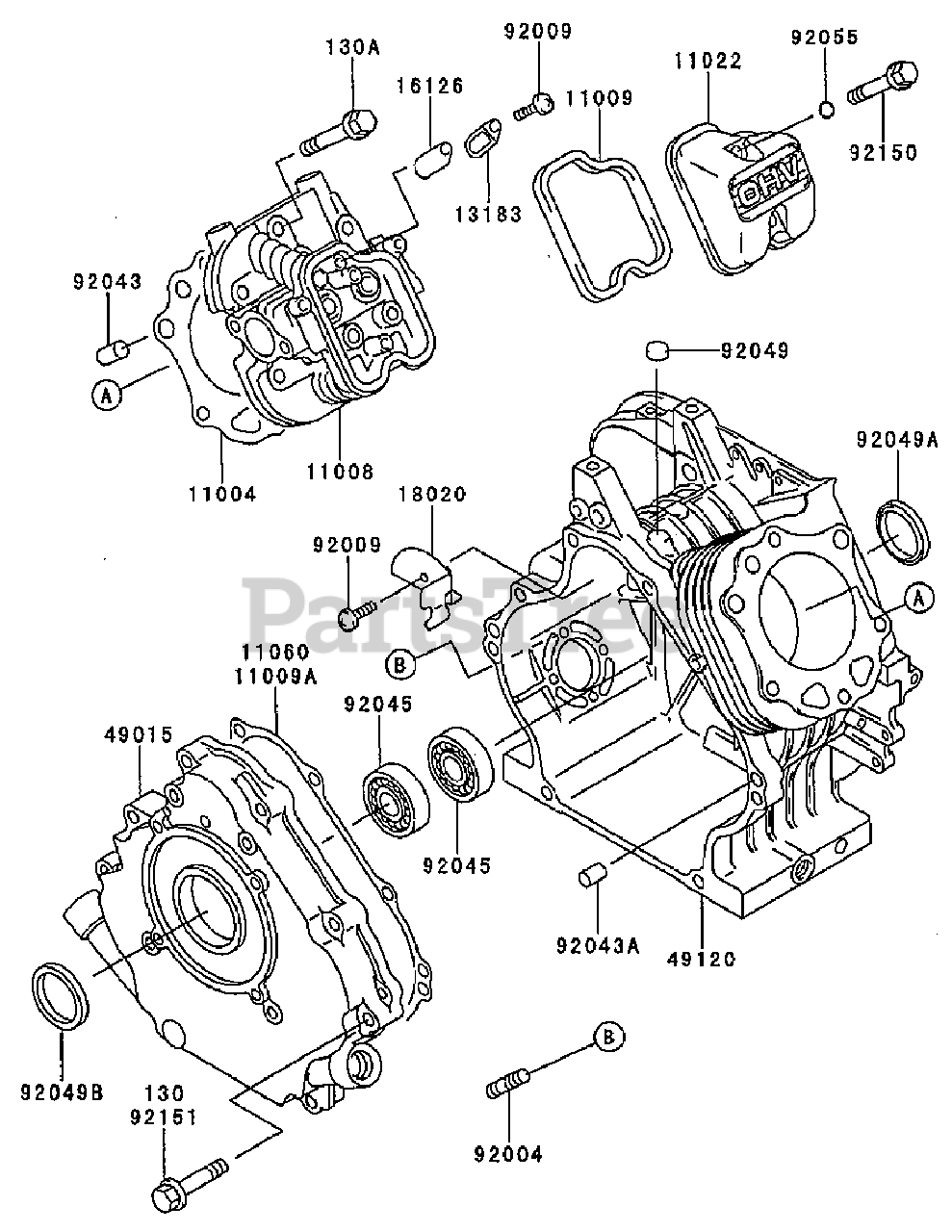

Kawasaki FE250D-AS09 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-2106

Gasket-Head

$12.99

$

Usually ships in 2-5 days

0

11008

Cub Cadet KM-11008-2086

Head-Comp-Cylinder

$261.99

$

Usually ships in 2-5 days

0

11009

Cub Cadet KM-11009-2923

Gasket- Rocker Case

$9.49

$

Usually ships in 2-5 days

0

11009A

Cub Cadet N/A

Gasket, Crankcase Cover

$

$

Currently unavailable

11022

Cub Cadet KM-11022-6002

Case, Rocker

$35.99

$

Usually ships in 2-5 days

0

11060

Cub Cadet KM-11061-2069

Gasket

$

$

Currently unavailable

13183

Cub Cadet KM-13183-2299

Plate

$1.49

$

In Stock, Qty 9

0

16126

Cub Cadet KM-16126-2107

Valve

$0.99

$

In Stock, Qty 11

0

18020

Cub Cadet KM-18020-2073

Baffle

$

$

Not available

49015

Cub Cadet KM-49015-6108

Cover Crankcase

$

$

Not available

49120

Cub Cadet KM-49120-2224

Crankcase Complete

$

$

Not available

92004

Cub Cadet KM-92004-2083

Stud, 6 X 14

$1.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 5

0

92043

Cub Cadet KM-92043-1037

Pin

$0.99

$

In Stock, Qty 16

0

92043A

Cub Cadet KM-92043-1263

Pin

$0.99

$

In Stock, Qty 20+

0

92045

Cub Cadet KM-92045-2188

Bearing-Ball, 6206CM

$22.99

$

Usually ships in 2-5 days

0

92049

Cub Cadet KM-92049-2097

Seal-Oil

$2.49

$

In Stock, Qty 10

0

92049A

Cub Cadet KM-92049-2199

Seal-Oil

$6.49

$

In Stock, only 1 left!

0

92049B

Cub Cadet KM-92049-2220

Seal-Oil

$9.49

$

In Stock, only 3 left!

0

92055

Cub Cadet KM-92055-1343

Ring-O

$0.99

$

In Stock, Qty 10

0

92150

Cub Cadet KM-92150-2145

Bolt, 6 X 35

$0.99

$

Usually ships in 2-5 days

0

92151

Cub Cadet KM-92151-2130

Bolt, 8 X 40

$2.49

$

Usually ships in 2-5 days

0

130

Cub Cadet N/A

Bolt-Flanged

$

$

Currently unavailable

130A

Cub Cadet KM-130T0845

Bolt-Flanged
(Superseded to KM-130CA0845)

$1.49

$

In Stock, Qty 5

0

Cub Cadet 01001002

Replacement Engine

Note: (Not shown)

$

$

Not available
