56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Drive Assembly Parts Diagram

Tank Ride-On Sprayer/Spreader

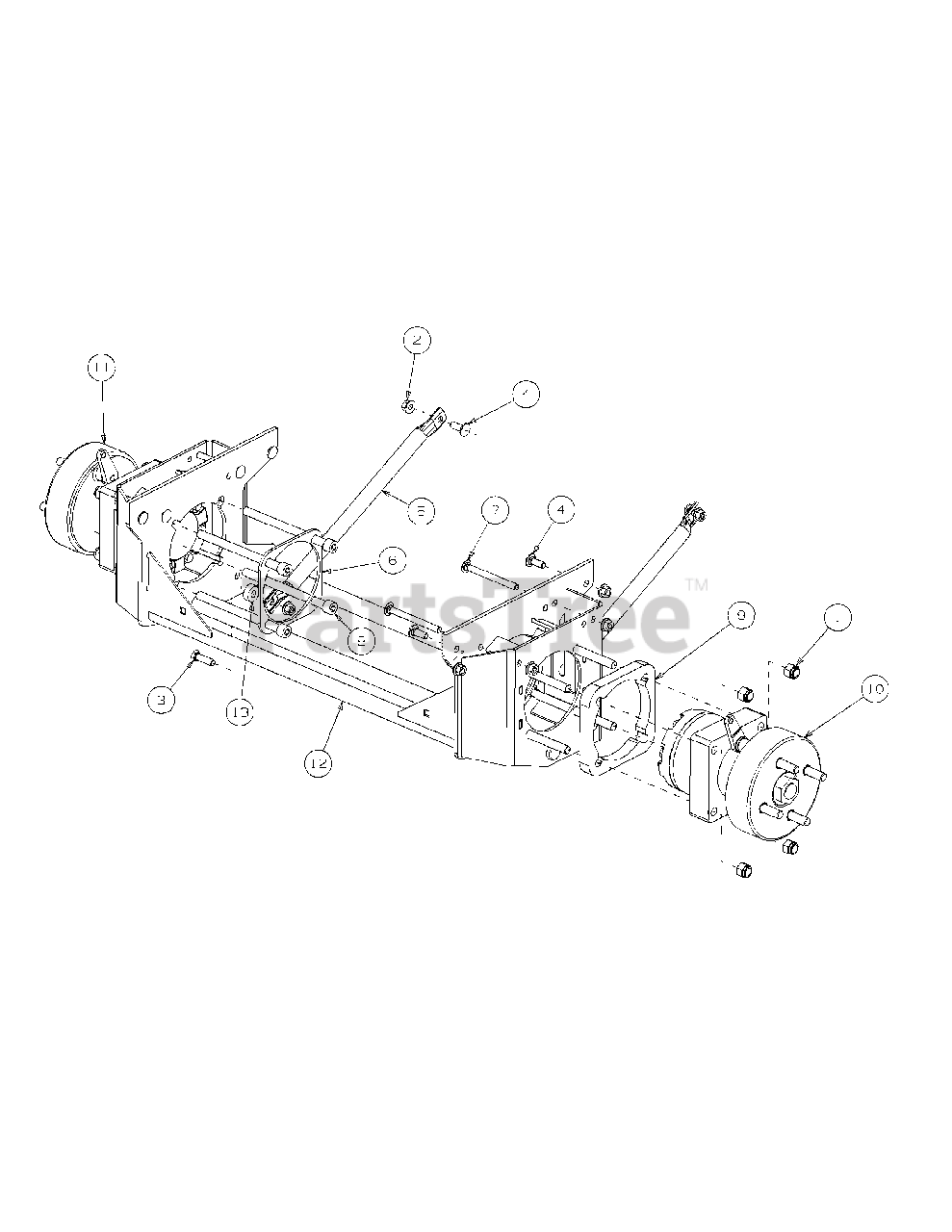

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 712-3083

Lock Nut, Nylon Insert, 1/2-13

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3005

Hex Cap Screw, 2/8 -16 x 1.25

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.99

$

In Stock, only 4 left!

0

5

Cub Cadet 01002593

Strut Frame

Variations

Cub Cadet 01002593-0637

Strut Frame - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01002593-4021

STRUT-FRAME - CUB YELLOW 2 (4021)

$

$

Not available

$

$

6

Cub Cadet 01006949

Hydro Wheel Motor Backup Plate

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4"
(Superseded to 710-05384)

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01008449

Socket Head Capscrew, 1/2-13 x 6-1/2

$13.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01009775

Hydro Motor Spacer

$61.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02000391P

Hyd. Motor, White Left Hand

$2020.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 02000392P

Hyd. Motor, White Right Hand
(Superseded to 02004442P)

$2780.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02004648-0637

Hydro Motor Frame Assembly

$

$

Not available

13

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$12.99

$

In Stock, only 3 left!

0
