56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Spray Boom Assembly Parts Diagram

Tank Ride-On Sprayer/Spreader

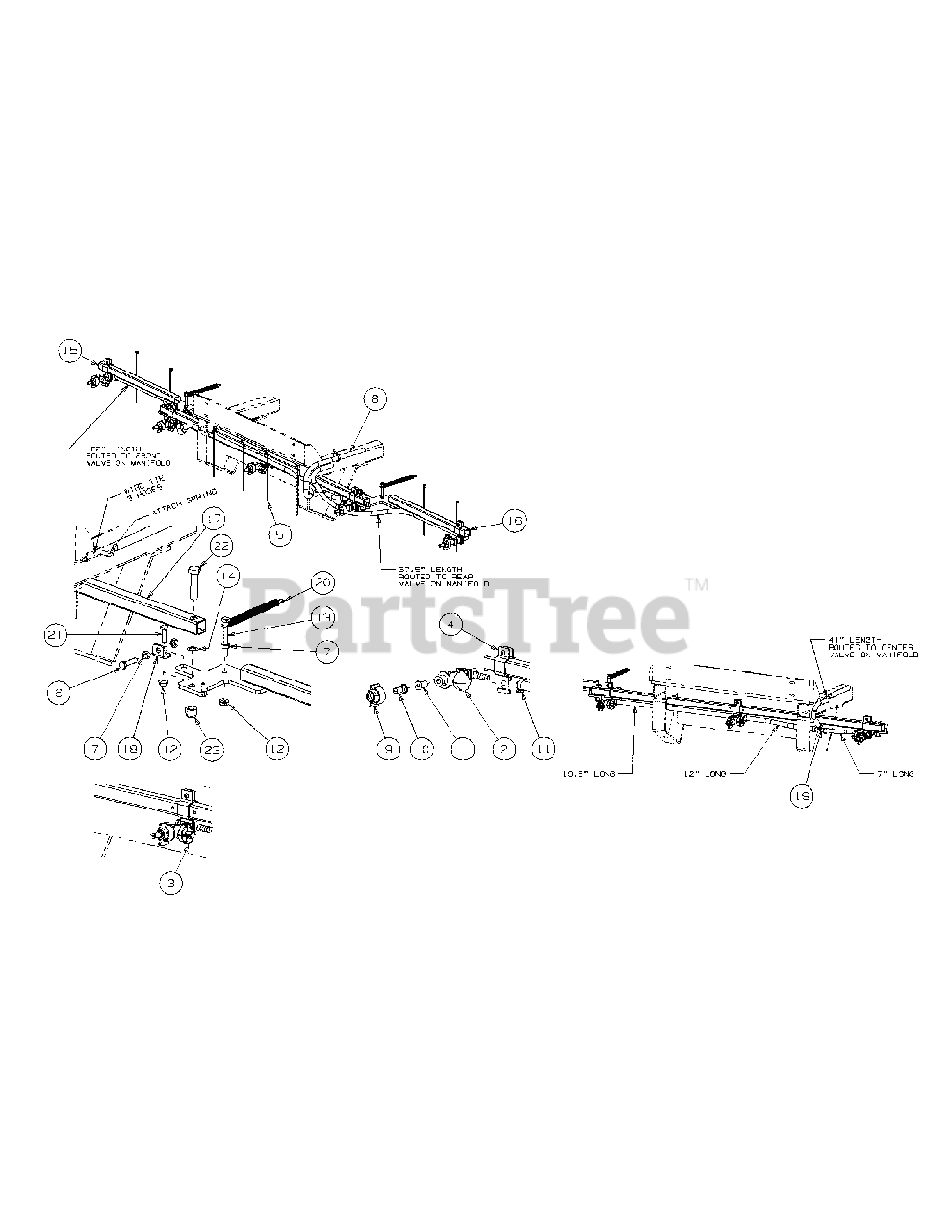

Spray Boom Assembly Parts Diagram

  • Title

1

Cub Cadet 00005173

Strainer Screen, 50 Mesh, SS

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00009288

Nozzle, Single Body, Dry Boom

$36.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00009314

Nozzle, Double Body, Dry Boom

$

$

Not available

4

Cub Cadet 00009679

Clamp, Body Nozzle

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet 00013116

HHCS, 5/16-18 x 1.25

$5.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00013433

Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

8

Hose, 3/8

Note: Purchase locally

$

$

Not available

9

Cub Cadet 00480210

Cap
(Superseded to 00480210P)

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00480213

Nozzle, Turbo Flood Jet - Red - Very Fine

$42.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 737-04287

Nozzle, Turbo Flood Jet - Brown - Med

$23.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 737-04288

Nozzle, Turbo Flood Jet - White - Extremely Coarse

$

$

Not available

11

Cub Cadet 01000215

Hose Clamp

$

$

Not available

12

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01001972

HHCS, 5/16-18 x 2.75

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01005282

Washer, .50 ID x .75 OD x .031

$

$

Not available

15

Cub Cadet 01008892-0637

Boom Arm Assembly, LH

$69.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008894-0637

Boom Arm Assembly, RH

$72.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01008896-0637

Boom Mount

$118.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01009223-0637

Boom Stop Arm

$

$

Not available

19

Cub Cadet 01009337

T-Fitting, 3/8

$

$

Not available

20

Cub Cadet 01009376

Extension Spring

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0376

HHCS, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 16

0

22

Cub Cadet 710-0489

HHCS, 1/2-13 x 2.00

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-3083

Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0
