570 - Husqvarna Chainsaw (2009-08) Carburetor & Air Filter Parts Diagram

Chainsaw

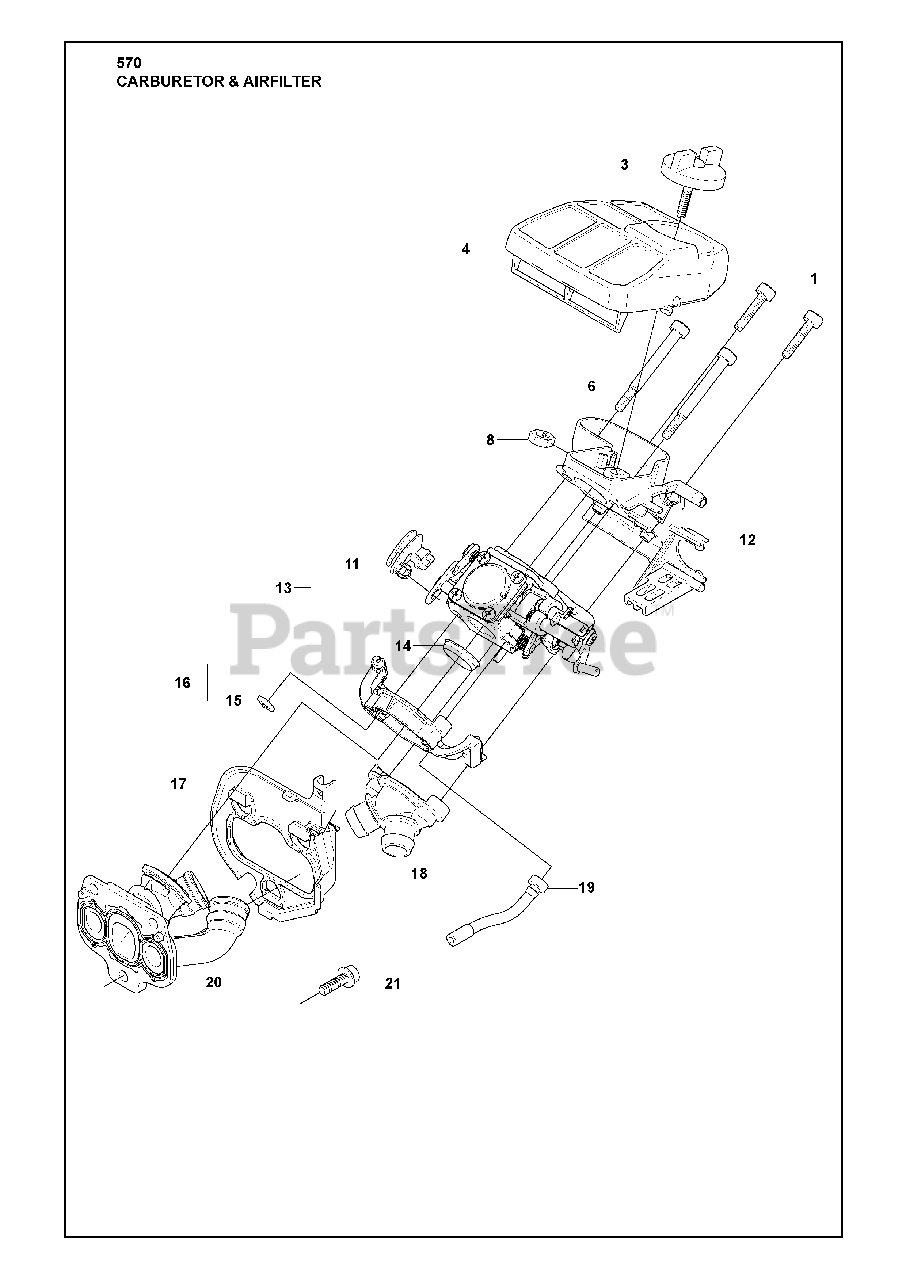

Carburetor & Air Filter Parts Diagram

  • Title

1

Husqvarna 503202520

SCREW

$3.49

$

In Stock, Qty 8

0

3

Husqvarna 537213201

KNOB

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537206601

RP AIR FILTER
(Superseded to 576486304)

Note: 80 My

$39.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537206602

RP AIR FILTER
(Superseded to 576486305)

Note: 44 My

$37.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537206603

%AIR FILTER
(Superseded to 576486306)

Note: Felt

$28.99

$

In Stock, only 2 left!

0

6

Husqvarna 503203901

SCREW 4X46

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503212616

SCREW

$3.49

$

In Stock, Qty 11

0

8

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 537213701

LEVER

$

$

Not available

12

Husqvarna 537205001

FILTER HOLDER

$7.99

$

In Stock, only 2 left!

0

13

Husqvarna 544199801

RP CARBURETOR
(Superseded to 580735801)

$148.99

$

In Stock, only 2 left!

0

14

Husqvarna 537204601

SLEEVE

$5.99

$

In Stock, only 1 left!

0

15

Husqvarna 503226503

NUT

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 537204501

FLANGE

$13.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537204701

PARTITION

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 537204901

FLANGE

$13.99

$

In Stock, only 3 left!

0

19

Husqvarna 537203701

HOSE

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 537204301

PIPE

$39.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503200216

SCREW

$3.49

$

In Stock, Qty 20+

0
