570 - Husqvarna Chainsaw (SN: 20051400001 - 20070100000) CLUTCH & OIL PUMP 2 Parts Diagram

Chainsaw

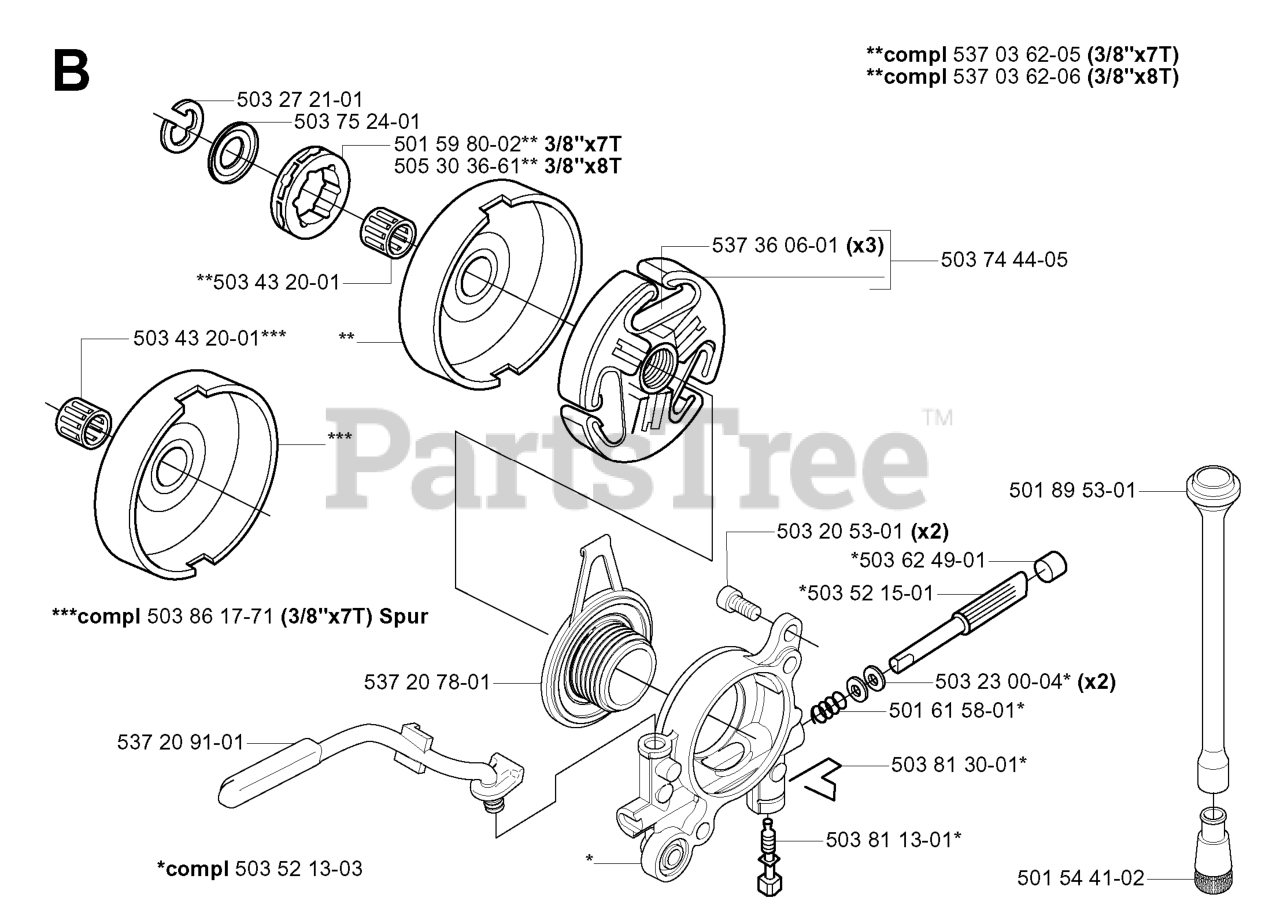

CLUTCH & OIL PUMP 2 Parts Diagram

  • Title

503 86 17-71

Husqvarna 503861771

CLUTCH DRUM
(Superseded to 503861703)

Note: (3/8X7T) SPUR

$65.99

$

In Stock, only 1 left!

0

503 81 30-01

Husqvarna 503813001

SPRING CLIP

$4.99

$

In Stock, only 2 left!

0

537 20 91-01

Husqvarna 537209101

HOSE

$15.99

$

In Stock, only 3 left!

0

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$20.99

$

In Stock, only 2 left!

0

503 20 53-01

Husqvarna 503205301

SCREW

$

$

Not available

503 27 21-01

Husqvarna 503272101

RETAINING RING

$3.99

$

In Stock, Qty 8

0

503 52 13-03

Husqvarna 503521303

OIL PUMP
(Superseded to 503521305)

$102.99

$

In Stock, only 2 left!

0

503 43 20-01

Husqvarna 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, only 3 left!

0

503 62 49-01

Husqvarna 503624901

PLUG

$9.99

$

In Stock, only 1 left!

0

537 20 78-01

Husqvarna 537207801

PINION
(Superseded to 582270104)

$14.99

$

In Stock, Qty 6

0

537 03 62-05

Husqvarna 537036205

CLUTCH DRUM
(Superseded to 586980601)

Note: 3/8X7T

$45.99

$

Usually ships in 3-10 days

0

537 03 62-06

Husqvarna 537036206

CLUTCH DRUM
(Superseded to 586980602)

Note: 3/8X8T

$65.99

$

In Stock, only 2 left!

0

503 75 24-01

Husqvarna 503752401

WASHER

$4.99

$

In Stock, Qty 7

0

503 74 44-05

Husqvarna 503744405

CLUTCH
(Superseded to 586798402)

$167.99

$

In Stock, only 1 left!

0

537 36 06-01

Husqvarna 537360601

SPRING

$7.49

$

In Stock, only 2 left!

0

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$3.99

$

Usually ships in 3-10 days

0

501 61 58-01

Husqvarna 501615801

SPRING

$8.49

$

In Stock, only 2 left!

0

501 89 53-01

Husqvarna 501895301

HOSE.

$15.99

$

In Stock, only 2 left!

0

503 81 13-01

Husqvarna 503811301

SCREW

$3.49

$

In Stock, Qty 10

0

503 52 15-01

Husqvarna 503521501

PUMP PISTON

$20.99

$

In Stock, only 2 left!

0

505 30 36-61

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

Note: 3/8X8T

$7.99

$

Usually ships in 3-10 days

0

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8X7T

$7.99

$

In Stock, Qty 6

0
