570 II - Husqvarna Chainsaw (2017-06) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

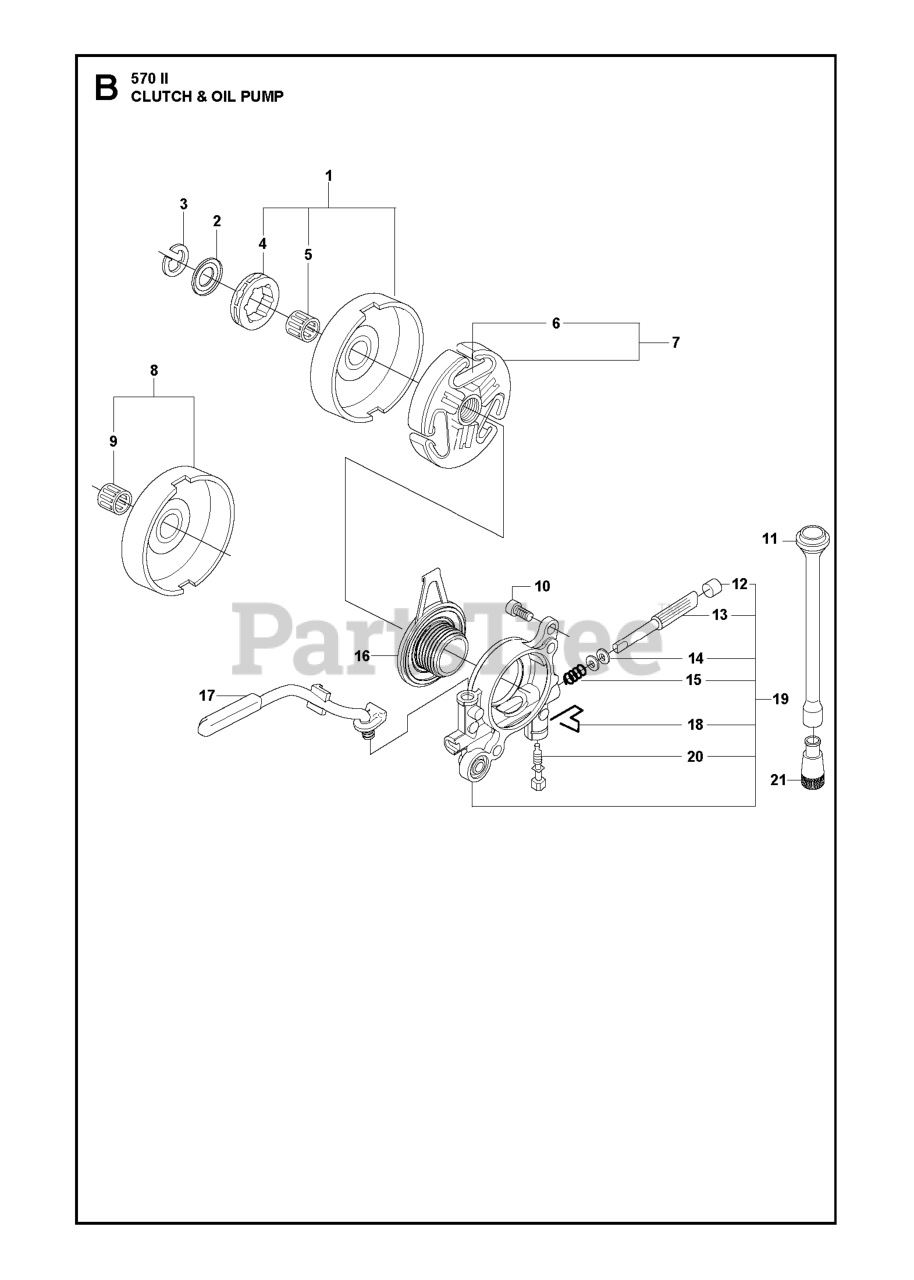

CLUTCH & OIL PUMP Parts Diagram

  • Title

7

Husqvarna 586798402

CLUTCH ASSY M14X1.25-6H

$148.99

$

In Stock, only 2 left!

0

21

Husqvarna 501544102

OIL SCREEN

$20.99

$

In Stock, only 2 left!

0

11

Husqvarna 501895301

HOSE.

$13.99

$

In Stock, only 2 left!

0

1

Husqvarna 504547202

CLUTCH DRUM ASSY

Note: 3/8 x 7T

$56.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501615801

SPRING

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503230004

WASHER 6.1X9

$2.49

$

In Stock, only 2 left!

0

8

Husqvarna 503861703

CLUTCH DRUM

$56.99

$

In Stock, only 2 left!

0

16

Husqvarna 537207804

PINION
(Superseded to 582270104)

$13.99

$

In Stock, only 4 left!

0

10

Husqvarna 503205301

SCREW

$

$

Not available

13

Husqvarna 503521501

PUMP PISTON

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8 x 7T

$9.49

$

In Stock, only 4 left!

0

9

Husqvarna 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, Qty 12

0

2

Husqvarna 503752401

WASHER

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 503813001

SPRING CLIP

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 503521303

OIL PUMP
(Superseded to 503521305)

$102.99

$

In Stock, only 2 left!

0

12

Husqvarna 503624901

PLUG

$6.99

$

In Stock, only 2 left!

0

5

Husqvarna 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, Qty 12

0

1

Husqvarna 504547203

CLUTCH DRUM ASSY STD 7 SPLINES

Note: 3/8 x 8T

$62.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537360601

SPRING

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503811301

SCREW

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 537209101

HOSE

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

Note: 3/8 x 8T

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503272101

RETAINING RING

$1.99

$

In Stock, Qty 20+

0
