57002 - Toro 25" Lawn Tractor (SN: 009000001 - 009999999) (1969) 905 AND 910 FRAME ASSEMBLY Parts Diagram

25" Lawn Tractor

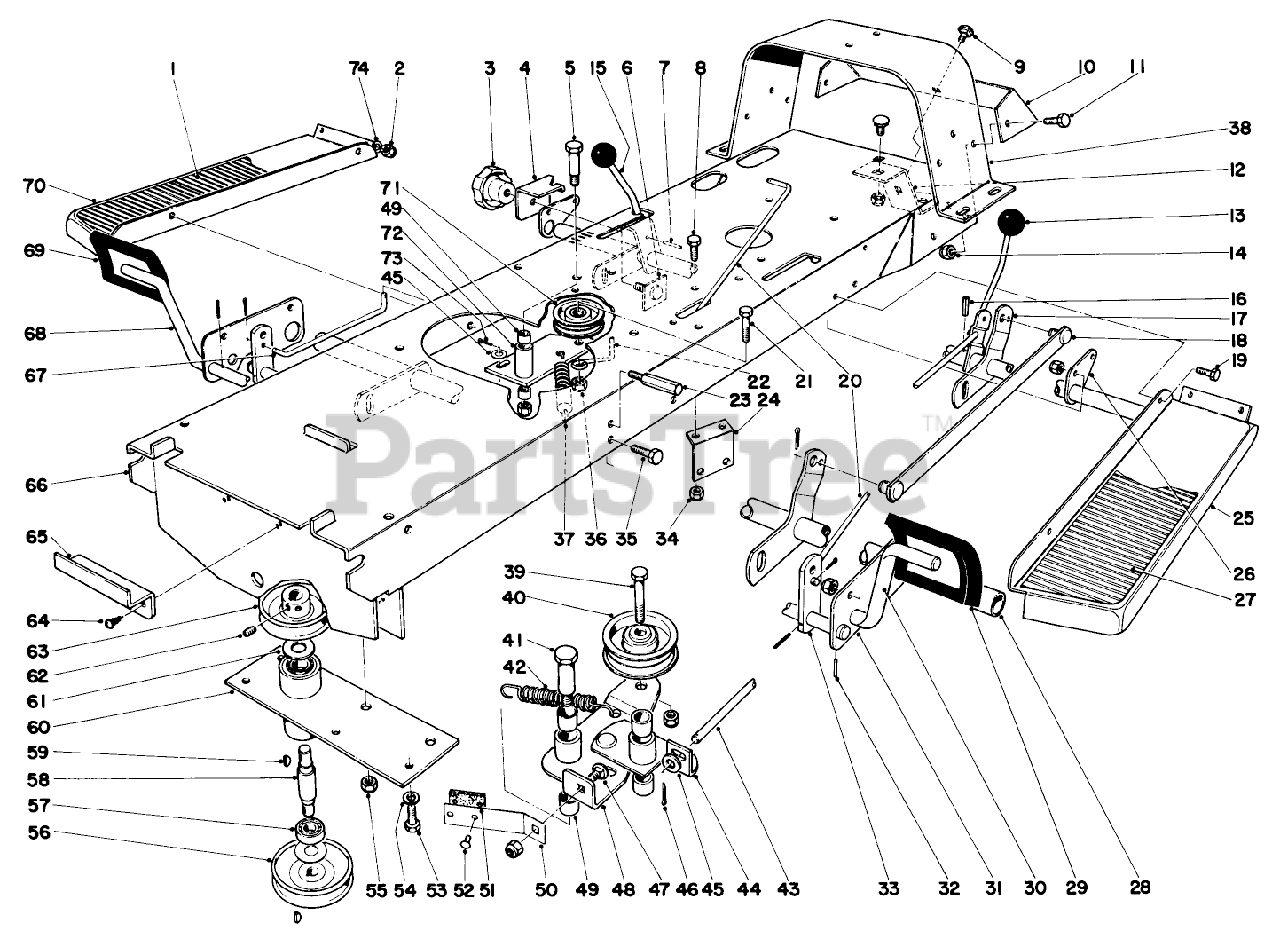

905 AND 910 FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3894

Foot Pad

$

$

Currently unavailable

2

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

3

Toro 7-3902

Knob

$

$

Not available

4

Toro 7-3772

Slide Height Adj.

$

$

Not available

5

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

6

Toro 7-3667

Knob Plate

$

$

Currently unavailable

7

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

8

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

10

Toro 7-3790

Frame Member Rear

$

$

Currently unavailable

11

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

12

Toro 7-3775

Bracket Hitch

$

$

Currently unavailable

13

233-22S

Knob

$

$

Not available

14

Toro 32152-2S

Nut

$

$

Currently unavailable

15

Toro 7-3763

Rod Control Hgt. Adj.

$

$

Currently unavailable

16

Toro 32121-29

1/8 X 1-3/8 ROLL PIN

$

$

Not available

17

Toro 7-3758

Rear Height Adj. Tube

$

$

Not available

18

Toro 7-3761

Height Adj. Link

$

$

Currently unavailable

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 7-3736

Brake Rod

$

$

Currently unavailable

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 7-0751

Belt Retainer

$

$

Currently unavailable

23

Toro 7-3668

Pedal Stop

$

$

Currently unavailable

24

Toro 7-3967

Belt Guide

$

$

Currently unavailable

25

Toro 7-3681

Footrest

$

$

Currently unavailable

26

Toro 7-3671

Bracket Tube

$

$

Currently unavailable

27

Toro 7-3895

Foot Pad L.H.

$

$

Currently unavailable

28

Toro 7-3737

Front Height Adj. Tube

$

$

Not available

29

Toro 7-3901

CLUTCH PAD

$

$

Currently unavailable

30

Toro 7-3688

Clutch Pedal

$

$

Currently unavailable

31

Toro 7-3670

Plate Tube

$

$

Currently unavailable

32

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

33

Toro 7-3683

Arm Lever

$

$

Currently unavailable

34

32152-1S

Nut

$

$

Not available

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 32152-2S

Nut

$

$

Currently unavailable

37

Toro 7-3970

Spring

$

$

Not available

38

Toro 7-3735

Rear Support

$

$

Currently unavailable

39

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 3 left!

0

41

Toro 7-0731

Shoulder Bolt

$

$

Currently unavailable

42

Toro 7-3970

Spring

$

$

Not available

43

Toro 7-3885

Clutch Rod Blade

$

$

Currently unavailable

44

Toro 7-3800

Pivot Bracket

$

$

Currently unavailable

45

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

47

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

48

Toro 7-3751

Idler Plate

$

$

Currently unavailable

49

Toro 256-172S

Bushing

$

$

Currently unavailable

50

Toro 7-3801

Clutch Brake

$

$

Currently unavailable

51

Toro 7-0643

BLADE BRAKE LINING

$

$

Not available

52

Toro 3290-287

Rivet

$

$

Not available

53

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

54

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

55

Toro 32152-2S

Nut

$

$

Currently unavailable

56

Toro 7-3793

Pulley

$

$

Not available

57

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

58

Toro 7-3728

Pulley Shaft

$

$

Currently unavailable

59

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

60

Toro 7-3730

Pulley Tube

$

$

Not available

61

Toro 7-0777

Bearing Washer

$

$

Not available

62

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

63

Toro 7-3796

Pulley

$

$

Not available

64

Toro 32140-58

10-32 X 1/2 PHILLIPS

$

$

Not available

65

Toro 7-3886

Spring Clip

$

$

Currently unavailable

66

Toro 7-3750

Frame

$

$

Currently unavailable

67

Toro 7-3741

Clutch Rod

$

$

Currently unavailable

68

Toro 7-3690

Brake Pedal

$

$

Currently unavailable

69

Toro 7-3900

PAD-BRAKE

$31.99

$

In Stock, only 3 left!

0

70

Toro 7-3680

Footrest

$

$

Currently unavailable

71

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 3 left!

0

72

Toro 7-3740

Idler Arm

$

$

Currently unavailable

73

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

74

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
