57043 - Toro 25" Lawn Tractor (SN: 001000001 - 001999999) (1971) HOOD AND ENGINE ASSEMBLY Parts Diagram

25" Lawn Tractor

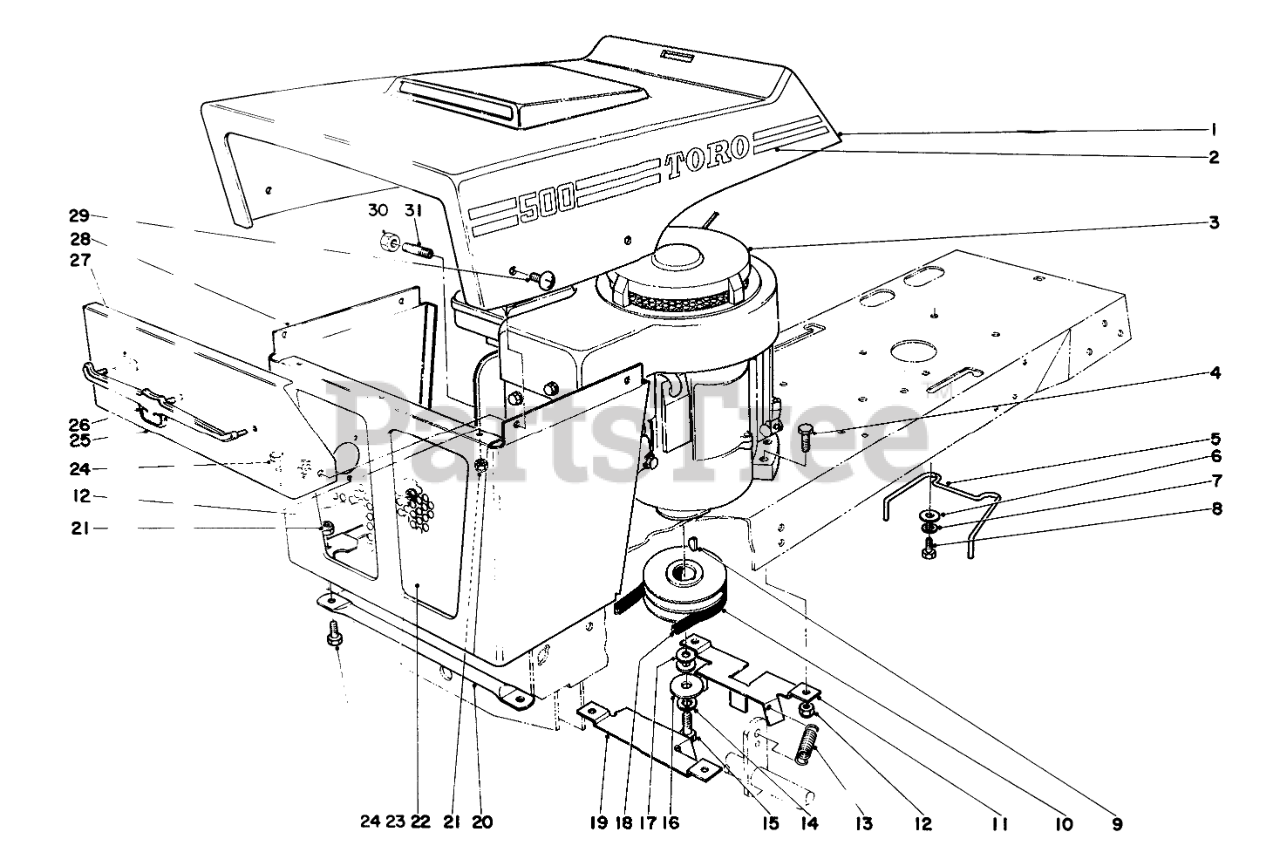

HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4980

Hood

$

$

Currently unavailable

2

Toro 7-8070

Decal Hood Model 57043

$

$

Currently unavailable

Toro 7-8090

Decal Hood Model 57077

Note: Not illustrated

$

$

Currently unavailable

Toro 7-8060

Decal Hood Model 57043

Note: Not illustrated

$

$

Currently unavailable

Toro 7-8080

Decal Hood Model 57077

Note: Not illustrated

$

$

Currently unavailable

3

Toro 221-372

Engine Model 57043

$

$

Currently unavailable

Toro 221-373

Engine Model 57077

Note: Not illustrated

$

$

Currently unavailable

4

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 7-4310

Belt Retainer

$

$

Currently unavailable

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

10

Toro 7-3748

Engine Pulley

$

$

Currently unavailable

11

Toro 7-5050

Belt Guide

$

$

Not available

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

13

Toro 7-3968

Spring Tension

$

$

Currently unavailable

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

15

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

16

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 7-3887

ENGINE BELT

$

$

Not available

19

Toro 7-3766

Belt Guide

$

$

Currently unavailable

20

Toro 7-3682

Rod Grille Mount

$

$

Currently unavailable

21

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

22

Toro 7-5040

Grille Panel

$

$

Currently unavailable

23

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

24

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

25

Toro 7-8000

Panel Grille

$

$

Currently unavailable

26

Toro 7-3441

Bullshead

$

$

Currently unavailable

27

Toro 3290-275

Timmerman Nut

$

$

Currently unavailable

28

Toro 7-7050

Grille

$

$

Currently unavailable

29

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

30

Toro 7-8720

Cap-Pipe

$

$

Currently unavailable

31

Toro 289-36

NIPPLE 3/8NPTX 1.50

$

$

Not available

Toro 7-8310

Hose Adapter Model 57077

Note: Not illustrated

$

$

Currently unavailable

Toro 7-8320

Hose Model 57077

Note: Not illustrated

$

$

Currently unavailable
