57054 - Toro 25" Lawn Tractor (SN: 000000001 - 000999999) (1970) 25" MOWER ASSEMBLY Parts Diagram

25" Lawn Tractor

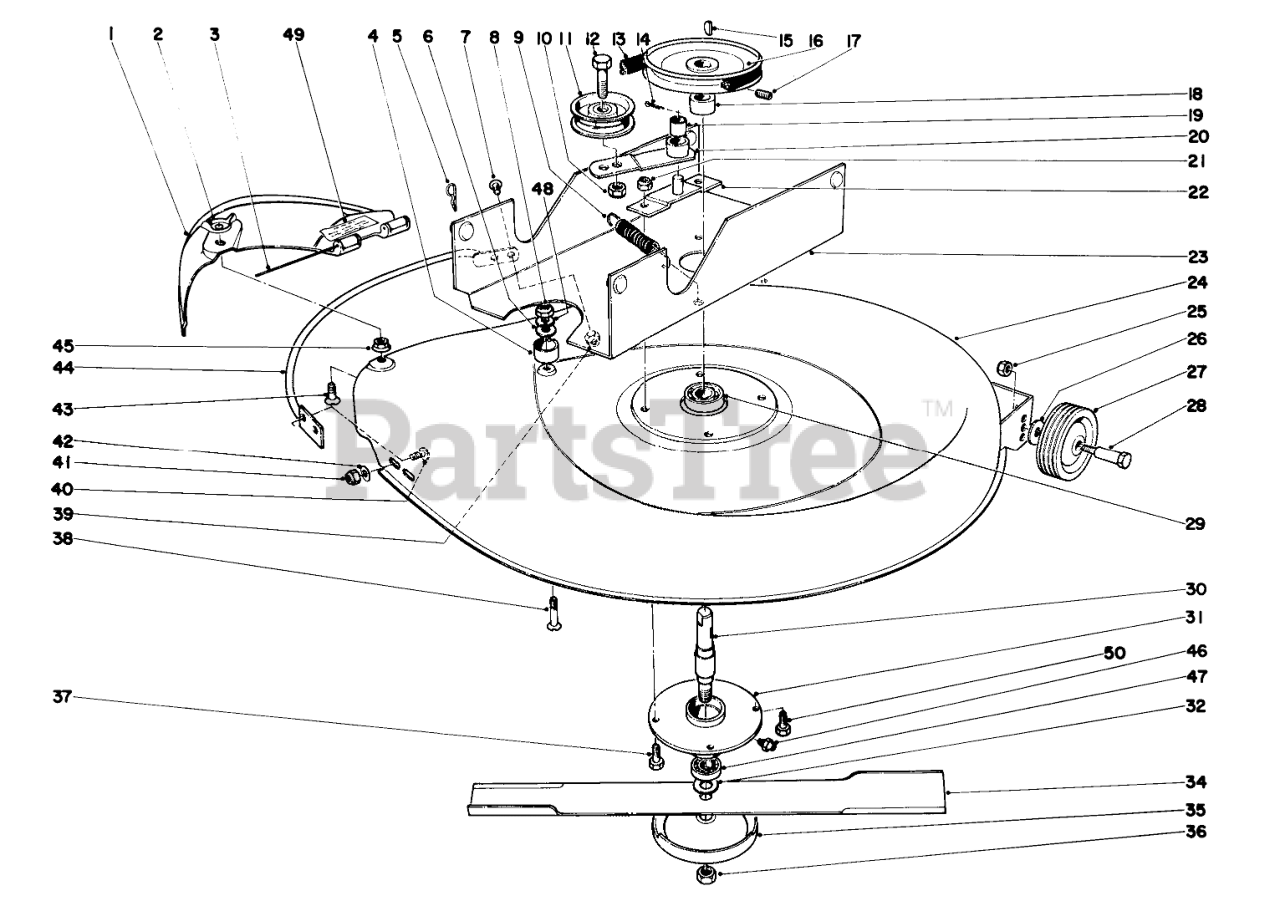

25" MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3-0674

DEFLECTOR

$

$

Not available

2

Toro 3-2625

Wing Nut

$

$

Not available

3

Toro 3-1176

Hinge Pin

$

$

Currently unavailable

4

Toro 3-5528

Spacer

$

$

Not available

5

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

7

Toro 32122-33

5/16-18X5/8 TRS HD MS

$

$

Not available

8

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

9

Toro 7-3984

Spring

$

$

Not available

10

Toro 32152-2S

Nut

$

$

Currently unavailable

11

Toro 7-0448

Idler Pulley
(Superseded to 12-6700)

$31.99

$

In Stock, only 1 left!

0

12

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 7-3888

FRONT PULLEY BELT

$

$

Not available

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 16

0

16

Toro 7-3795

PULLEY

$

$

Not available

17

Toro 3246-3

SCREW-HSH

$14.99

$

Usually ships in 3-6 days

0

18

Toro 7-3747

Spacer

$

$

Not available

19

Toro 256-172S

Bushing

$

$

Currently unavailable

20

Toro 7-3768

Idler Plate

$

$

Not available

21

32152-1S

Nut

$

$

Not available

22

Toro 7-3798

Pivot Bracket

$

$

Not available

23

Toro 7-3697

Channel

$

$

Not available

24

Toro 7-4251

Housing

$

$

Currently unavailable

25

Toro 32152-2S

Nut

$

$

Currently unavailable

26

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

27

Toro 7-0261

Wheel

$

$

Currently unavailable

28

Toro 7-0262

Axle

$

$

Currently unavailable

29

Toro 251-5

Bearing
(Superseded to 38-7820)

$14.99

$

In Stock, Qty 20+

0

30

Toro 7-3744

Blade Spindle

$

$

Not available

31

Toro 7-0287

MOWER SPINDLE HOUSING

$

$

Not available

32

Toro 7-3590

WASHER

$2.99

$

Usually ships in 3-6 days

0

34

Toro 7-3467

Blade

$

$

Currently unavailable

35

Toro 7-3522

Cup
(Superseded to 92-6313)

$55.99

$

In Stock, only 2 left!

0

36

Toro 32152-6S

Nut

$

$

Currently unavailable

37

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 32108-7

Screw

$

$

Not available

39

32152-1S

Nut

$

$

Not available

40

Toro 3290-145

SCREW

$6.49

$

Usually ships in 3-6 days

0

41

Toro 32152-4S

Nut

$

$

Currently unavailable

42

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 32108-21

5/16-18X7/8 FLT HD MS

$

$

Currently unavailable

44

Toro 7-5030

Blade Guard

$

$

Not available

45

Toro 3290-147

PAL NUT

$

$

Not available

46

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

47

Toro 251-123

.6693 RP BALL BEARING

$

$

Not available

48

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

49

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.99

$

Usually ships in 3-6 days

0

50

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
