57054 - Toro 25" Lawn Tractor (SN: 000000001 - 000999999) (1970) ELECTRICAL DIAGRAM (ELECTRIC START ONLY) Parts Diagram

25" Lawn Tractor

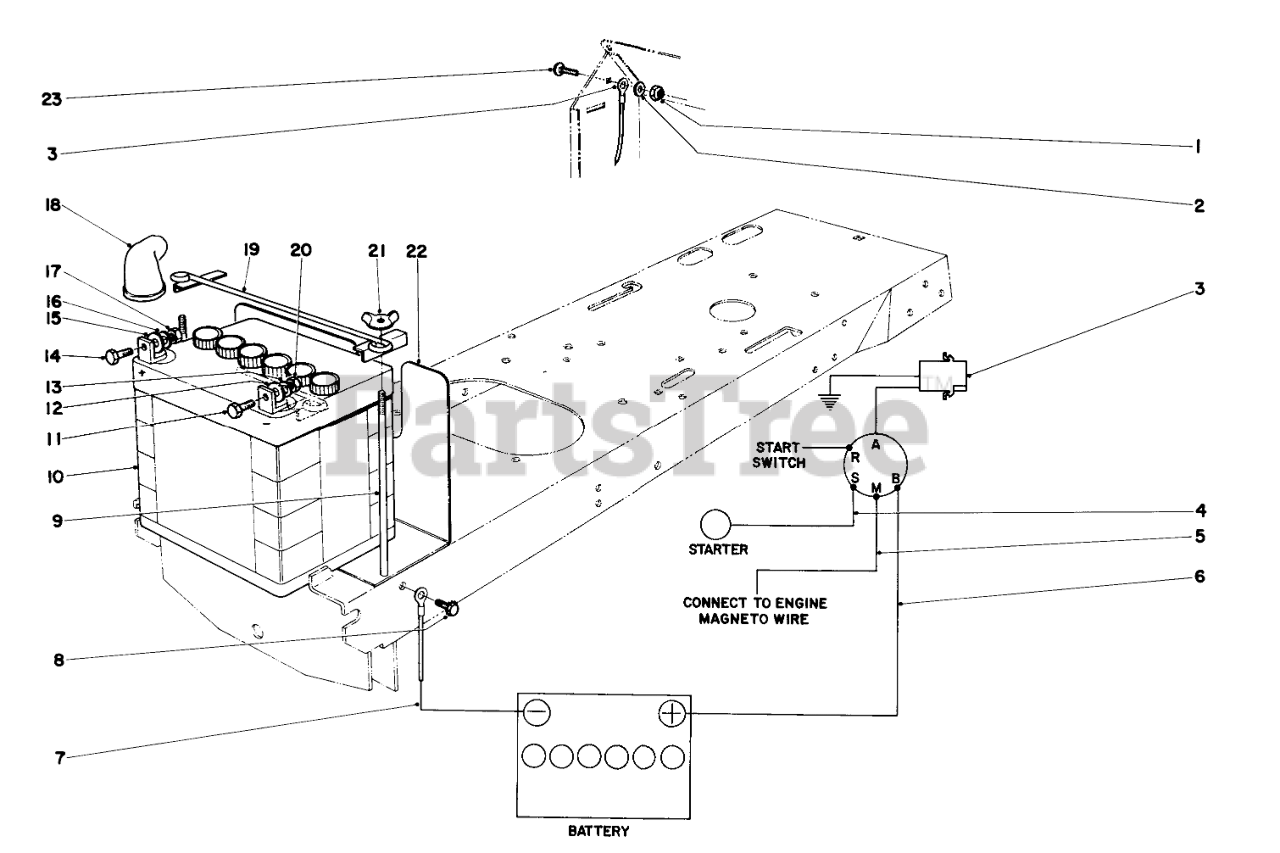

ELECTRICAL DIAGRAM (ELECTRIC START ONLY) Parts Diagram

  • Title

1

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

2

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 7-5230

Wire Assembly

$

$

Not available

4

Toro 7-6160

Wire Assembly

$

$

Currently unavailable

5

Toro 7-6480

Wire Assembly

$

$

Currently unavailable

6

Toro 7-4082

Wire

$

$

Currently unavailable

7

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

8

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

9

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

10

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

18

Toro 218-331

BATTERY BOOT

$

$

Currently unavailable

19

Toro 7-5000

Clamp

$

$

Not available

20

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

21

Toro 32103-19

WING NUT

$1.49

$

In Stock, only 2 left!

0

22

Toro 7-6310

Heat Shield Battery

$

$

Currently unavailable

23

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
