57060 - Toro 25" Lawn Tractor (SN: 000000001 - 000999999) (1970) HOOD AND ENGINE ASSEMBLY Parts Diagram

25" Lawn Tractor

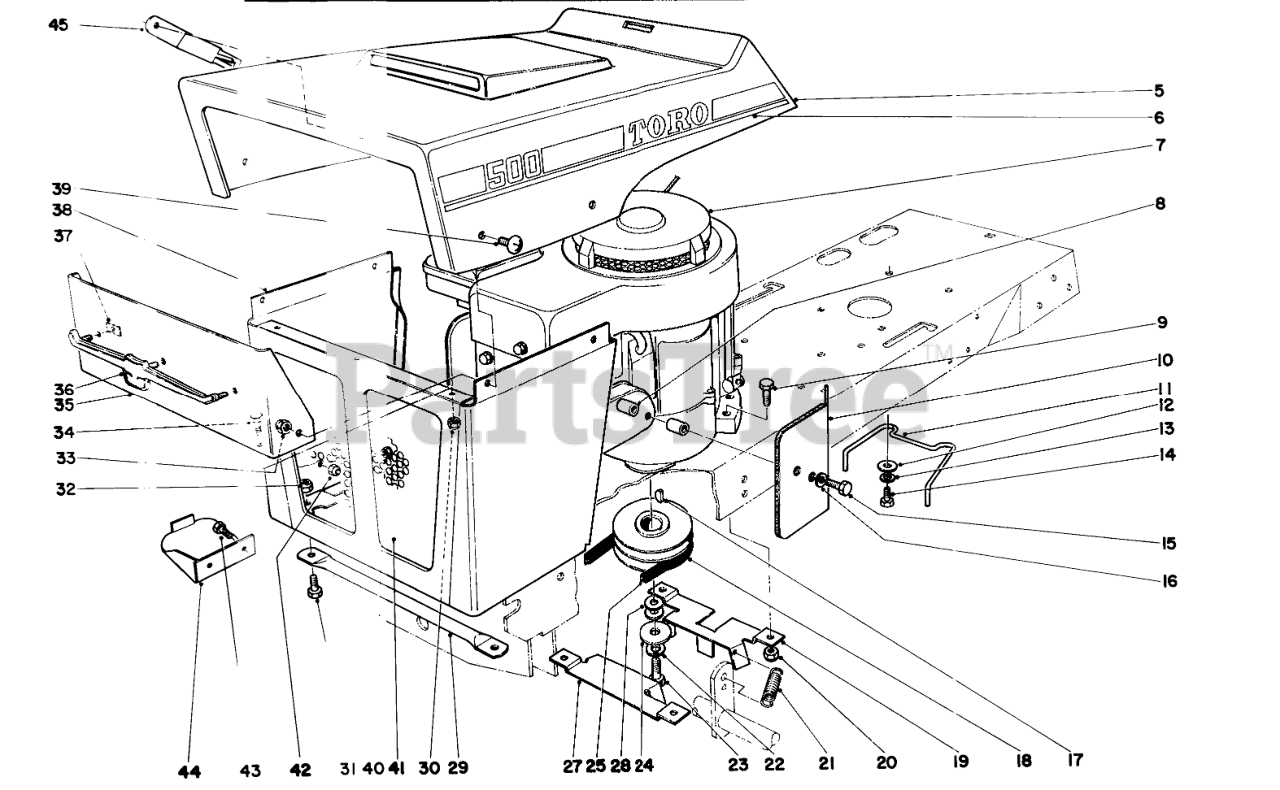

HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

5

Toro 7-4980

Hood

$

$

Currently unavailable

6

Toro 7-6410

Decal Hood L.H. (Recoil)

$

$

Currently unavailable

Toro 7-6400

Decal Hood R.H. (Recoil)

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6420

Holder Screen

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6430

Decal Hood L.H. (Elec.)

Note: Not illustrated

$

$

Currently unavailable

7

Toro 221-296

Engine

$

$

Currently unavailable

Toro 221-343

Engine (Electric)

Note: Not illustrated

$

$

Currently unavailable

8

Toro 7-0746

Spacer

$

$

Not available

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 7-4216

Baffle Assembly

$

$

Not available

11

Toro 7-4310

Belt Retainer

$

$

Currently unavailable

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

18

Toro 7-3748

Engine Pulley

$

$

Currently unavailable

19

Toro 7-5050

Belt Guide

$

$

Not available

20

32152-1S

Nut

$

$

Not available

21

Toro 7-3970

Spring

$

$

Not available

22

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

23

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

24

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

25

Toro 7-3887

ENGINE BELT

$

$

Not available

27

Toro 7-3766

Belt Guide

$

$

Currently unavailable

28

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 7-3682

Rod Grille Mount

$

$

Currently unavailable

30

Toro 32152-4S

Nut

$

$

Currently unavailable

31

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

32

Toro 32152-4S

Nut

$

$

Currently unavailable

33

32152-1S

Nut

$

$

Not available

34

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

35

Toro 7-3451

Grille Panel

$

$

Currently unavailable

36

Toro 7-3441

Bullshead

$

$

Currently unavailable

37

Toro 3290-275S

Tinnerman Nut

$

$

Currently unavailable

38

Toro 7-5170

Grille Assembly (Recoil)

$

$

Currently unavailable

Toro 7-4910

Grille Assembly (Electric)

Note: Not illustrated

$

$

Currently unavailable

39

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

40

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

41

Toro 7-5040

Grille Panel

$

$

Currently unavailable

42

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

43

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

44

Toro 7-4510

Trimmer Support

$

$

Currently unavailable

45

Toro 7-4610

Clip Trimmer

$

$

Currently unavailable
