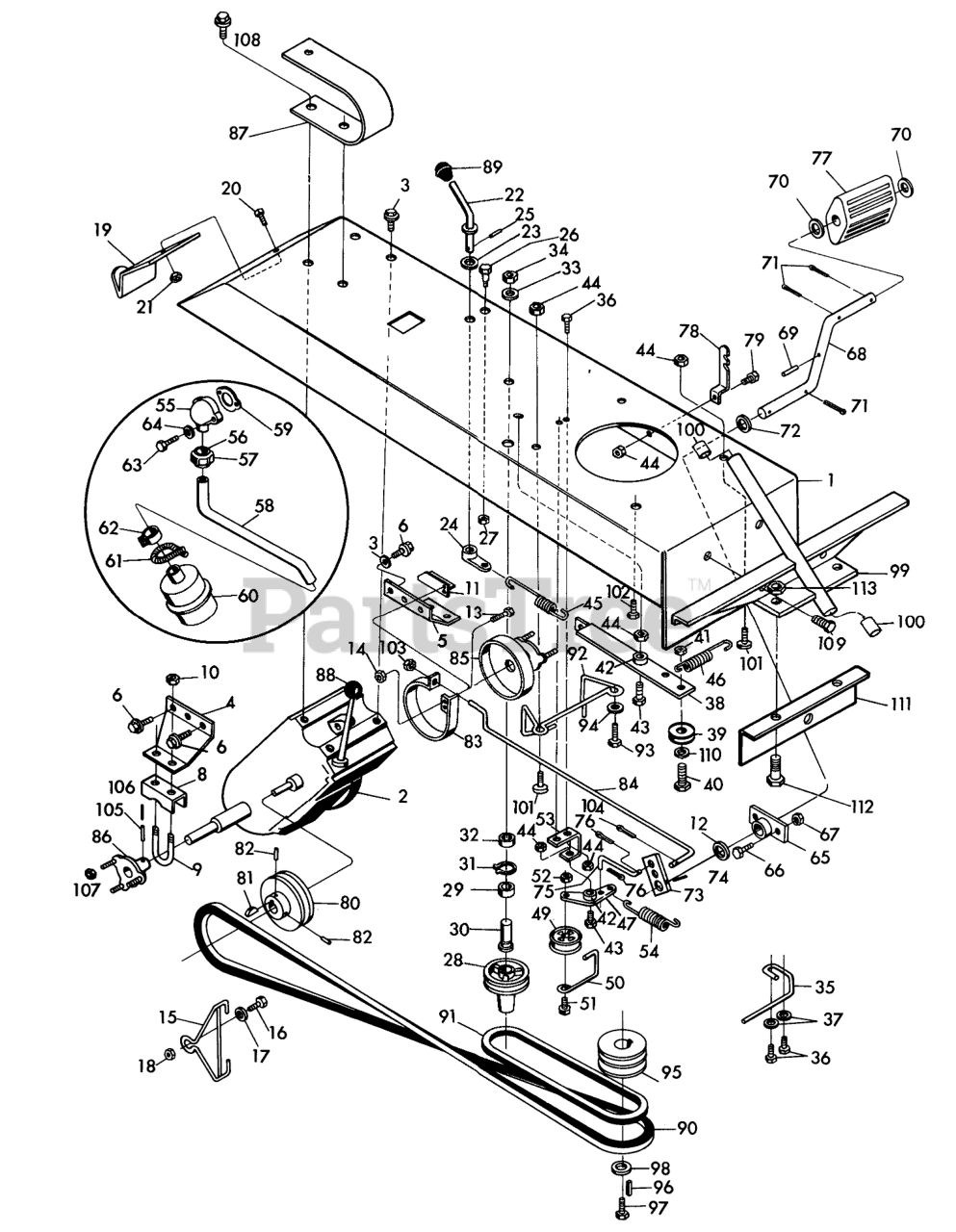

57101 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) CHASSIS ASSEMBLY PARTS LIST Parts Diagram

25" Lawn Tractor

CHASSIS ASSEMBLY PARTS LIST Parts Diagram

  • Title

1

Toro 7-3428

Chassis

$

$

Currently unavailable

2

Toro 7-0194

Transmission

$

$

Currently unavailable

3

Toro 32140-33

Sems Screw

$

$

Currently unavailable

4

Toro 7-0198

Right Wheel Bracket

$

$

Currently unavailable

5

Toro 7-0200

Left Wheel Bracket

$

$

Currently unavailable

6

32140-51(s

Screw & Washer

$

$

Not available

7

Toro 7-0024

Washer

$

$

Currently unavailable

8

Toro 7-0203

Axle Bracket

$

$

Currently unavailable

9

Toro 7-0202

U-Bolt

$

$

Currently unavailable

10

32152-5(s

Nut

$

$

Not available

11

Toro 7-0201

Brake Mounting Bracket

$

$

Currently unavailable

12

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, only 2 left!

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 12

0

14

32152-4(s

Nut

$

$

Not available

15

Toro 7-0151

Rear Belt Guide

$

$

Currently unavailable

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 7-0152

Washer
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

18

32152-4(s

Nut

$

$

Not available

19

Toro 7-0157

Hitch

$

$

Currently unavailable

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

32152-2(s

Nut

$

$

Not available

22

Toro 7-0138

Blade Rod Assy

$

$

Currently unavailable

23

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

24

Toro 7-0137

Lever

$

$

Currently unavailable

25

Toro 32121-5

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

26

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

32152-2(s

Nut

$

$

Not available

28

Toro 7-0190

Pulley

$

$

Currently unavailable

29

Toro 251-5

Bearing
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

30

Toro 7-0191

Adapter

$

$

Currently unavailable

31

Toro 32151-18(s

Snap Ring

$

$

Currently unavailable

32

Toro 7-0150

Spacer

$

$

Currently unavailable

33

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 13

0

35

Toro 7-0165

Belt Guide

$

$

Currently unavailable

36

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 7-0134

Brake Arm

$

$

Currently unavailable

39

Toro 7-0136

Pulley
(Superseded to 3-4244)

$27.99

$

In Stock, only 3 left!

0

40

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

42

Toro 256-168(s

Bushing

$

$

Currently unavailable

43

Toro 7-0135

Bolt

$

$

Not available

44

Toro 32152-1(s

Nut

$

$

Currently unavailable

45

Toro 7-0140

Spring

$

$

Currently unavailable

46

Toro 7-0141

Spring

$

$

Not available

47

Toro 7-2857

Clutch Lever (with bushing)

$

$

Currently unavailable

49

Toro 7-0145

Pulley

$

$

Not available

50

Toro 7-0146

Belt Retainer

$

$

Currently unavailable

51

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

53

Toro 7-0143

Clutch Bracket

$

$

Currently unavailable

54

Toro 7-0818

Spring

$

$

Currently unavailable

55

Toro 7-0231

Manifold

$

$

Currently unavailable

56

Toro 7-0234

Ferrule

$

$

Currently unavailable

57

Toro 7-0235

Nut

$

$

Currently unavailable

58

Toro 7-0236

Exhaust Pipe

$

$

Currently unavailable

59

Toro 7-0230

Manifold Gasket

$

$

Currently unavailable

60

Toro 2212-15(s

Muffler

$

$

Currently unavailable

61

Toro 7-0237

Spring

$

$

Currently unavailable

62

Toro 2412-28(s

Muffler Clamp

$

$

Currently unavailable

63

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

64

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

65

Toro 7-0132

Clutch Arm

$

$

Currently unavailable

66

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

67

32152-4(s

Nut

$

$

Not available

68

Toro 7-3421

Clutch Arm

$

$

Currently unavailable

69

Toro 32121-4(s

Roll Pin

$

$

Currently unavailable

70

Toro 7-0130

Washer

$

$

Currently unavailable

71

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

72

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, only 2 left!

0

73

Toro 7-0132

Clutch Arm

$

$

Currently unavailable

74

Toro 32121-71(s

Roll Pin

$

$

Currently unavailable

75

Toro 7-0147

Clutch Rod

$

$

Currently unavailable

76

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

77

Toro 7-0128

Pedal

$

$

Currently unavailable

78

Toro 7-3468

Brake Strap

$

$

Currently unavailable

79

Toro 7-0163

Shoulder Bolt
(Superseded to 37-8770)

$1.49

$

In Stock, only 1 left!

0

80

Toro 7-0195

Pulley

$

$

Currently unavailable

81

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

82

Toro 3242-13(s

Set Screw

$

$

Currently unavailable

83

Toro 7-0155

Brake Band Assembly Consists of

$

$

Currently unavailable

Toro 7-0206

a. Brake Band

$

$

Currently unavailable

Toro 7-0207

b. Lining

$

$

Currently unavailable

Toro 3290-287(s

Rivet

$

$

Currently unavailable

84

Toro 7-3466

Brake Rod

$

$

Currently unavailable

85

Toro 7-0204

Hub L.H. (with brake drum)

$

$

Currently unavailable

86

Toro 7-0205

Hub R.H.

$

$

Currently unavailable

87

Toro 7-3581

Seat Spring

$

$

Currently unavailable

88

233-21(s

Knob

$

$

Not available

89

Toro 233-22(s

Knob

$

$

Currently unavailable

90

Toro 7-3476

BELT

$

$

Not available

91

Toro 7-0162

Belt

$

$

Not available

92

Toro 7-0240

Belt Guide

$

$

Currently unavailable

93

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

94

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

95

Toro 7-0232

Pulley

$

$

Currently unavailable

96

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

97

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

98

Toro 7-0233

Washer

$

$

Currently unavailable

Toro 221-297

Engine (Lauson V60 Recoil)

Note: Not illustrated

$

$

Currently unavailable

Toro 221-298

Engine (Lauson V60 Electric )

Note: Not illustrated

$

$

Currently unavailable

99

Toro 7-3425

Steering Support

$

$

Currently unavailable

100

256-167(s

Bushing

$

$

Not available

101

Toro 32141-83(s

Bolt

$

$

Currently unavailable

102

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

103

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

104

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

105

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 11

0

106

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

107

Toro 242-32

LUG NUT

$

$

Currently unavailable

108

Toro 32140-52(s

Screw

$

$

Currently unavailable

109

Toro 32140-33(s

Screw

$

$

Currently unavailable

110

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

111

Toro 7-3622

Axle Support

$

$

Currently unavailable

112

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

113

32152-2(s

Nut

$

$

Not available
