57111 - Toro 32" Lawn Tractor (SN: 001000001 - 001999999) (1971) Front Axle Assembly Parts Diagram

32" Lawn Tractor

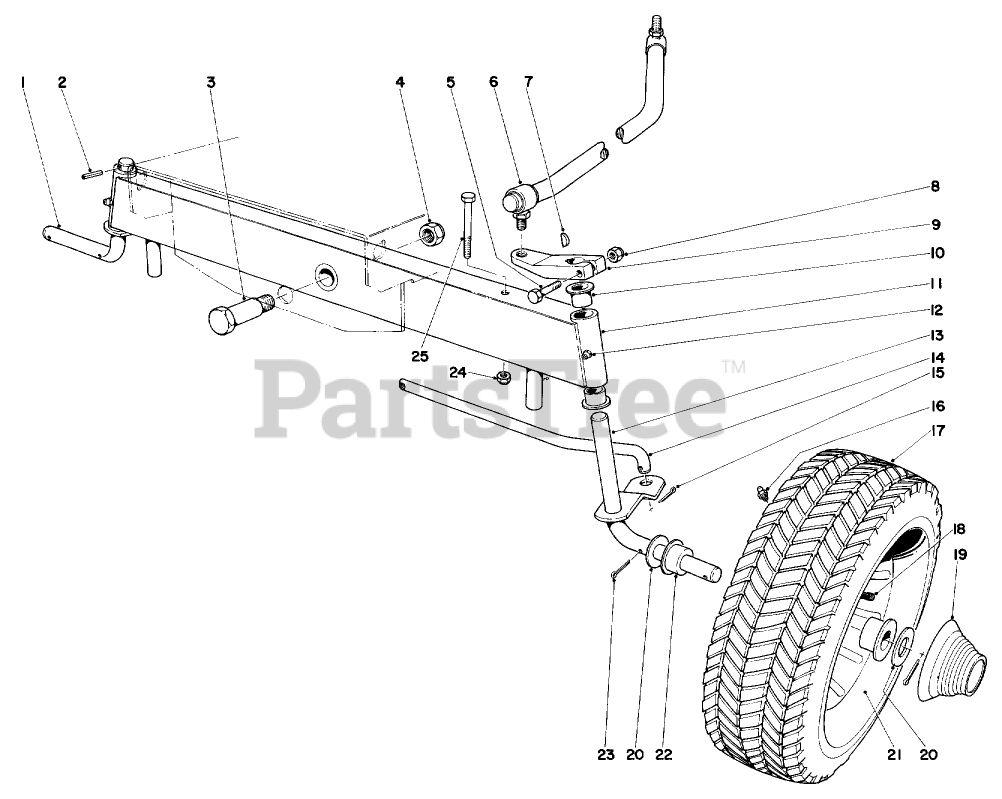

Front Axle Assembly Parts Diagram

  • Title

1

Toro 7-3718

DISCONTINUED

$

$

Not available

2

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, Qty 5

0

3

Toro 7-3884

DISCONTINUED

$

$

Not available

4

Toro 32152-3

DISCONTINUED

$

$

Not available

5

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

6

Toro 7-4760

Steering Rod

$

$

Currently unavailable

7

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

9

Toro 7-3706

Arm Steering

$

$

Currently unavailable

10

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 4 left!

0

11

Toro 7-3698

Front Axle

$

$

Currently unavailable

12

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

13

Toro 7-3715

DISCONTINUED

$

$

Not available

14

Toro 7-3776

Tie Rod

$

$

Currently unavailable

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 231-55

DISCONTINUED

$

$

Not available

18

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

19

Toro 7-3932

DISCONTINUED

$

$

Not available

20

Toro 7-0131

See Supercession: 3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 8

0

21

Toro 217-80

RIM

$231.99

$

Usually ships in 3-6 days

0

22

Toro 256-170

BUSHING

$

$

Not available

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 8

0

24

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

25

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0
