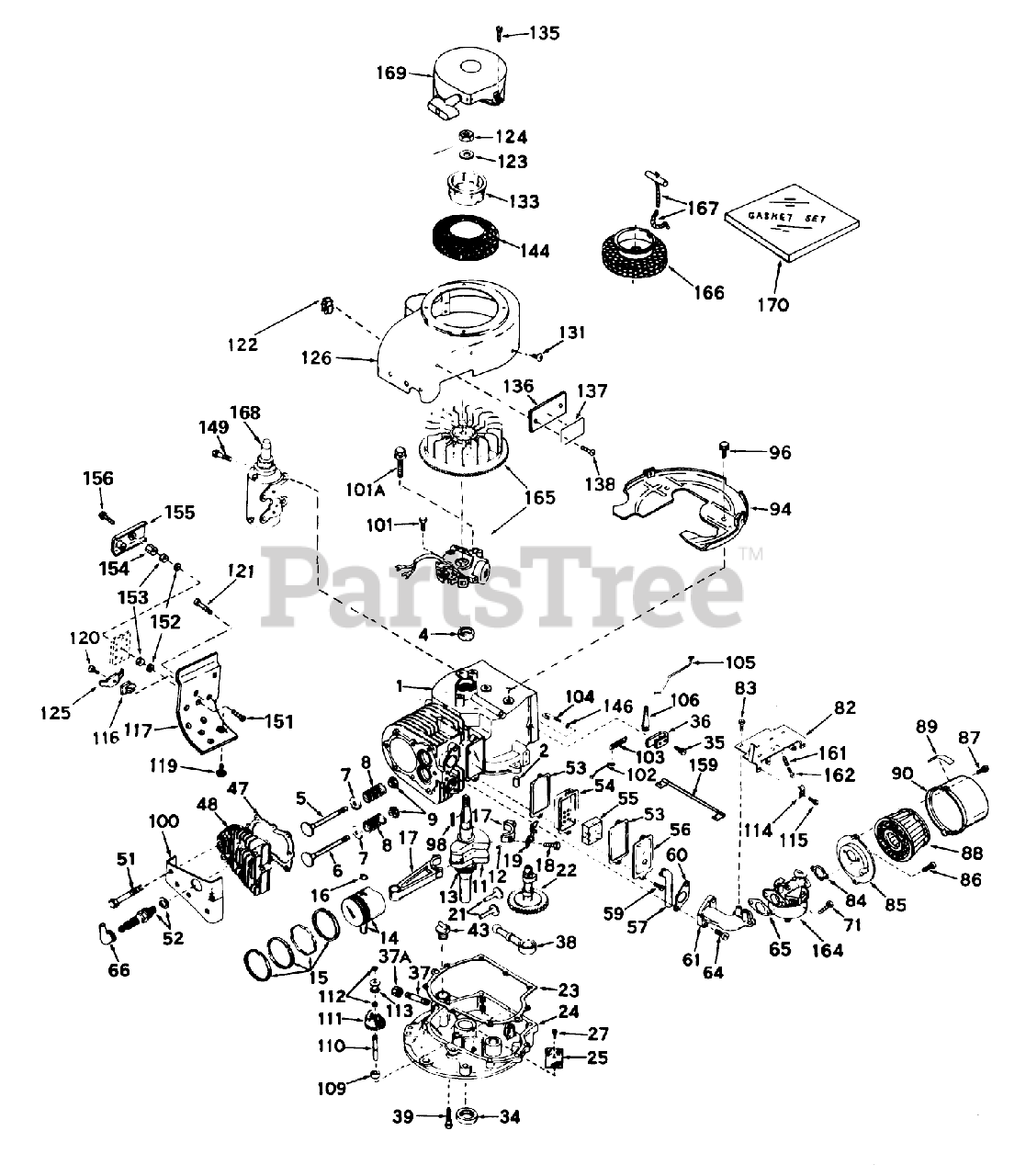

57241 - Toro 32" Lawn Tractor (SN: 002000001 - 002999999) (1972) Engine Tecumseh Model No. V70-125169 7 H.p. Lawn Tractor (recoil) V70-125168 7 H.p. Lawn Tractor (electric) Parts Diagram

32" Lawn Tractor

Engine Tecumseh Model No. V70-125169 7 H.p. Lawn Tractor (recoil) V70-125168 7 H.p. Lawn Tractor (electric) Parts Diagram

  • Title

1

Toro 32640

Cylinder Assy. (Incl Nos. 2 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 32925A

Crankshaft Assy. (Incl. Nos. 12 13)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 32592

Piston Pin Assy. (Incl. 2 of No. 16)(Standard)

$

$

Currently unavailable

14

Toro 32593

Piston Pin Assy. (Incl. 2 of No. 16)(.010 oversize)

$

$

Currently unavailable

14

Toro 32594

Piston Pin Assy. (Incl. 2 of No. 16)(.020 oversize)

$

$

Currently unavailable

15

Toro 32595

ORing

$

$

Currently unavailable

15

Toro 32596

Ring Set (.010" OS)

$

$

Currently unavailable

15

Toro 32597

Ring Set (.020" OS)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 32591A

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

18

Toro 650662

Screw, Hex Hd.

$

$

Currently unavailable

19

Toro 32590

Plate, Lock

$

$

Currently unavailable

21

Toro 27893

Lifter Valve

$

$

Currently unavailable

22

Toro 32114

Screw

$

$

Currently unavailable

23

Toro 30684

Gasket-Cover, Cylinder

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

24

Toro 31471

B Flange Assy., Mounting (Incl. Nos.25, 27, 34, 43 110)

$

$

Currently unavailable

25

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

27

Toro 29117

Screw

$

$

Currently unavailable

34

Toro 27897

Seal-Oil

$

$

Currently unavailable

35

Toro 650548

Screw

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 32213

Nipple, Pipe

$

$

Currently unavailable

37A

Toro 30969

Cap-Pipe

$

$

Currently unavailable

38

Toro 31356

Pump, Oil

$

$

Currently unavailable

39

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

43

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

47

Toro 32631

Gasket-Cylinder Head

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

48

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

51

Toro 650697

Screw Hex Hd. Cap

$

$

Currently unavailable

52

Toro 21943

SPARK PLUG

$

$

Currently unavailable

53

Toro 27896

Gasket-Breather

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

54

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

55

Toro 28424

Element-Breather

$

$

Currently unavailable

56

Toro 28425

Cover-Valve

$

$

Currently unavailable

57

Toro 27627

Tube-Breather

$

$

Currently unavailable

59

Toro 650128

Screw

$

$

Currently unavailable

60

Toro 27915

Gasket-Intake

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

61

Toro 32632

Pipe-Intake
(Superseded to 741323)

$

$

Not available

64

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

65

Toro 26756

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

66

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

71

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

82

Toro 32181

Control Assy., Speed (Incl. Nos. 161 162)

$

$

Currently unavailable

83

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

84

Toro 27272

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

85

Toro 31691

Bracket

$

$

Currently unavailable

86

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

87

Toro 650152

Screw

$

$

Currently unavailable

88

Toro 30727

Element

$

$

Currently unavailable

89

Toro 31752

Decal

$

$

Not available

90

Toro 31692

Body

$

$

Currently unavailable

94

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

96

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

98

Toro 32589

Key-Flywheel

$

$

Currently unavailable

100

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

101

Toro 650489

Screw

$

$

Currently unavailable

101A

Toro 650516

Screw, Hex Hd. Cap, Sems

$

$

Currently unavailable

101A

Toro 650489

Screw

$

$

Currently unavailable

102

Toro 32582

Link Governor Spring

$

$

Currently unavailable

103

Toro 31361

Spring Governor

$

$

Currently unavailable

104

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

105

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

106

Toro 31357

Lever-Governor

$

$

Currently unavailable

109

Toro 31707

Spacer

$

$

Currently unavailable

110

Toro 30668

Shaft, Governor

$

$

Currently unavailable

111

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

112

Toro 29193

Ring-Retaining

$

$

Currently unavailable

113

Toro 30588A

Spool-Governor

$

$

Currently unavailable

114

Toro 27793

Conduit

$

$

Currently unavailable

115

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

116

Toro 28545

Grommet

$

$

Currently unavailable

117

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

119

Toro 650128

Screw

$

$

Currently unavailable

120

Toro 650643

Screw

$

$

Currently unavailable

121

Toro 30688

Screw

$

$

Currently unavailable

121

Toro 30063

Screw

$

$

Currently unavailable

122

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

123

Toro 650490

Washer

$

$

Currently unavailable

124

Toro 8116

DISCONTINUED

$

$

Not available

125

Toro 33356

Terminal, Ground

$

$

Currently unavailable

126

Toro 32223A

Housing, Blower

$

$

Currently unavailable

131

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

133

Toro 32125

Cup-Starter

$

$

Currently unavailable

135

Toro 29716

Screw

$

$

Currently unavailable

136

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

137

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

138

Toro 29309

DRIVE STUD

$

$

Currently unavailable

144

Toro 590417

Screen, Air

$

$

Currently unavailable

146

Toro 28277

Washer-Flat

$

$

Currently unavailable

149

Toro 30688

Screw

$

$

Currently unavailable

151

Toro 28726

56008 ADN.KIT 28727

$3.23

$

Usually ships in 3-6 days

0

152

Toro 28727

Lockwasher (Model V70-125149)

$

$

Currently unavailable

153

Toro 28728

33144C/45C/49A/53A

$3.23

$

Usually ships in 3-6 days

0

154

Toro 30065

Nut, Long (Model V70-125149)

$

$

Currently unavailable

155

Toro 30064

Cover, Panel

$

$

Currently unavailable

156

Toro 30066

Screw

$

$

Currently unavailable

159

Toro 28468

Wire, Ground

$

$

Currently unavailable

159

Toro 30831

Wire, Ground

$

$

Currently unavailable

161

Toro 31342

Spring-Compression

$

$

Currently unavailable

162

Toro 650549

Screw

$

$

Currently unavailable

164

Toro 631447

Carburetor

$

$

Currently unavailable

165

Toro 610689A

Magneto

$

$

Currently unavailable

165

Toro 610681A

Magneto, Alternator (Model V70-125149)

$

$

Currently unavailable

166

Toro 28301

Hub Screen, Rope Starter

$

$

Currently unavailable

167

Toro 590343

Rope Assy., Starter

$

$

Currently unavailable

168

Toro 32468B

Motor, Starter

$

$

Currently unavailable

169

Toro 590420

Starter, Rewind

$

$

Currently unavailable

170

Toro 33239

Gasket Set

$

$

Currently unavailable
