57300 (8-32) - Toro Lawn Tractor (SN: 007000001 - 007999999) (1977) Rear Body Seat Assembly Parts Diagram

Lawn Tractor

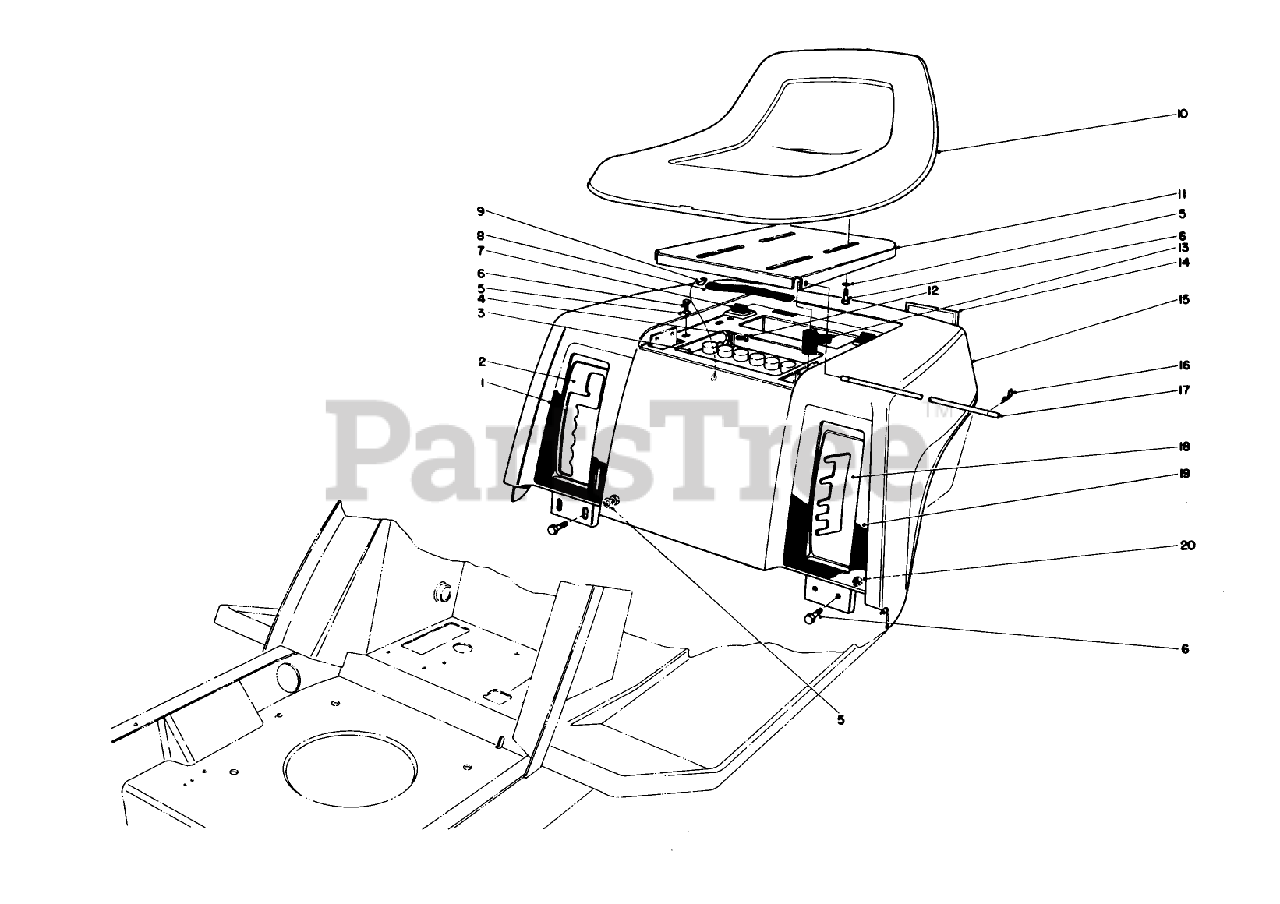

Rear Body Seat Assembly Parts Diagram

  • Title

1

Toro 28-4260

See Supercession: 63-5700
(Superseded to 63-5700)

$

$

Not available

2

Toro 28-0370

DISCONTINUED

$

$

Not available

3

Toro 28-1400

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

6

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

7

Toro 28-9440

DISCONTINUED

$

$

Not available

8

Toro 28-4190

DISCONTINUED

$

$

Not available

9

Toro 28-4170

DISCONTINUED

$

$

Not available

10

Toro 27-9060

See Supercession: 38-0840
(Superseded to 38-0840)

$

$

Not available

Toro 28-9420

Seat (Model #57300)

Note: Not illustrated

$

$

Currently unavailable

11

Toro 28-5360

DISCONTINUED

$

$

Not available

12

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 28-8080

BOOT-TERMINAL

$26.99

$

Usually ships in 3-6 days

0

14

Toro 218-491

REFLECTOR

$

$

Not available

15

Toro 27-8850

See Supercession: 14-3379
(Superseded to 14-3379)

$

$

Not available

16

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

17

Toro 28-2400

PIVOT-SEAT

$71.99

$

Usually ships in 3-6 days

0

18

Toro 28-0530

DISCONTINUED

$

$

Not available

19

Toro 28-4270

See Supercession: 44-5840
(Superseded to 44-5840)

$

$

Not available

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0
