57300 (8-32) - Toro Lawn Tractor (SN: 007000001 - 007999999) (1977) TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

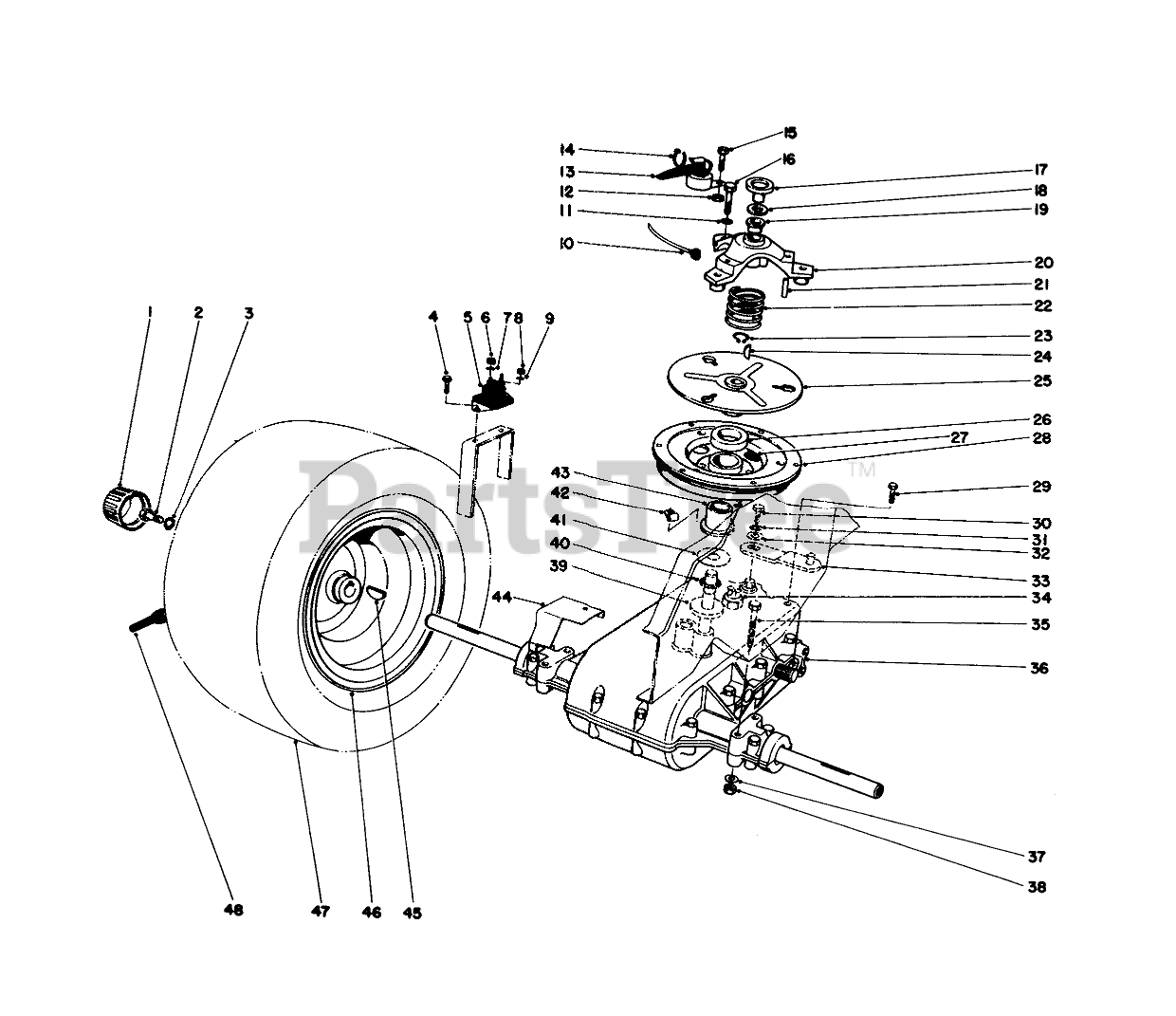

TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.49

$

In Stock, Qty 20+

0

2

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

4

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

5

Toro 28-4210

SOLENOID

$64.99

$

In Stock, only 3 left!

0

6

Toro 3218-13

NUT-JAM, BRASS

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

9

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

10

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

11

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

12

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

13

Toro 28-4140

SEAT SWITCH

$

$

Not available

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 14

0

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 27-8830

Cap Clutch
(Superseded to 36-2130)

$24.99

$

In Stock, only 1 left!

0

18

Toro 252-94

THRUST RACE

$8.49

$

In Stock, only 3 left!

0

19

Toro 256-259

BUSHING-FLANGE

$3.49

$

In Stock, only 1 left!

0

20

Toro 28-2560

Cover Assembly (Incl. Ref. #19 & 21)

$

$

Not available

21

Toro 252-92

NEEDLE BRG

$25.99

$

Usually ships in 3-6 days

0

22

Toro 27-8750

Spring Compression
(Superseded to 36-2220)

$

$

Not available

23

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

24

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

25

Toro 27-9030

Clutch Plate

$

$

Not available

26

Toro 28-4220

WASHER FELT

$8.99

$

Usually ships in 3-6 days

0

27

Toro 2410-40

PLUG

$4.99

$

Usually ships in 3-6 days

0

28

Toro 27-9170

Sheave Assembly (Incl. Ref. #43)
(Superseded to 11-0119)

$

$

Not available

29

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

30

Toro 329-2

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

31

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 28-2380

SHIFT LEVER WA B

$

$

Not available

34

Toro 28-4250

NEUTRAL SWITCH

$40.99

$

Usually ships in 3-6 days

0

35

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

36

Toro 27-8880

Transaxle

$

$

Not available

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

38

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

39

Toro 27-8810

THRUST WASHER

$

$

Not available

40

Toro 252-58

NEEDLE BRG

$37.99

$

Usually ships in 3-6 days

0

41

Toro 27-8820

THRUST WASHER

$

$

Not available

42

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

43

Toro 28-4150

Bushing
(Superseded to 11-0119)

$

$

Not available

44

Toro 29-6940

GRASS SHIELD B

$

$

Not available

45

Toro 3257-38

WOODRUFF KEY

$10.99

$

Usually ships in 3-6 days

0

46

Toro 242-61

Rim
(Superseded to 47-5130)

$

$

Not available

47

Toro 231-93

16 X 7.5-8 REAR TIRE

$

$

Not available

48

Toro 232-37

TUBE

$33.99

$

In Stock, only 2 left!

0
