57300 (8-32) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) BRIGGS & STRATTON MODEL 191707-5633-01 (MODEL 57300) Parts Diagram

Lawn Tractor

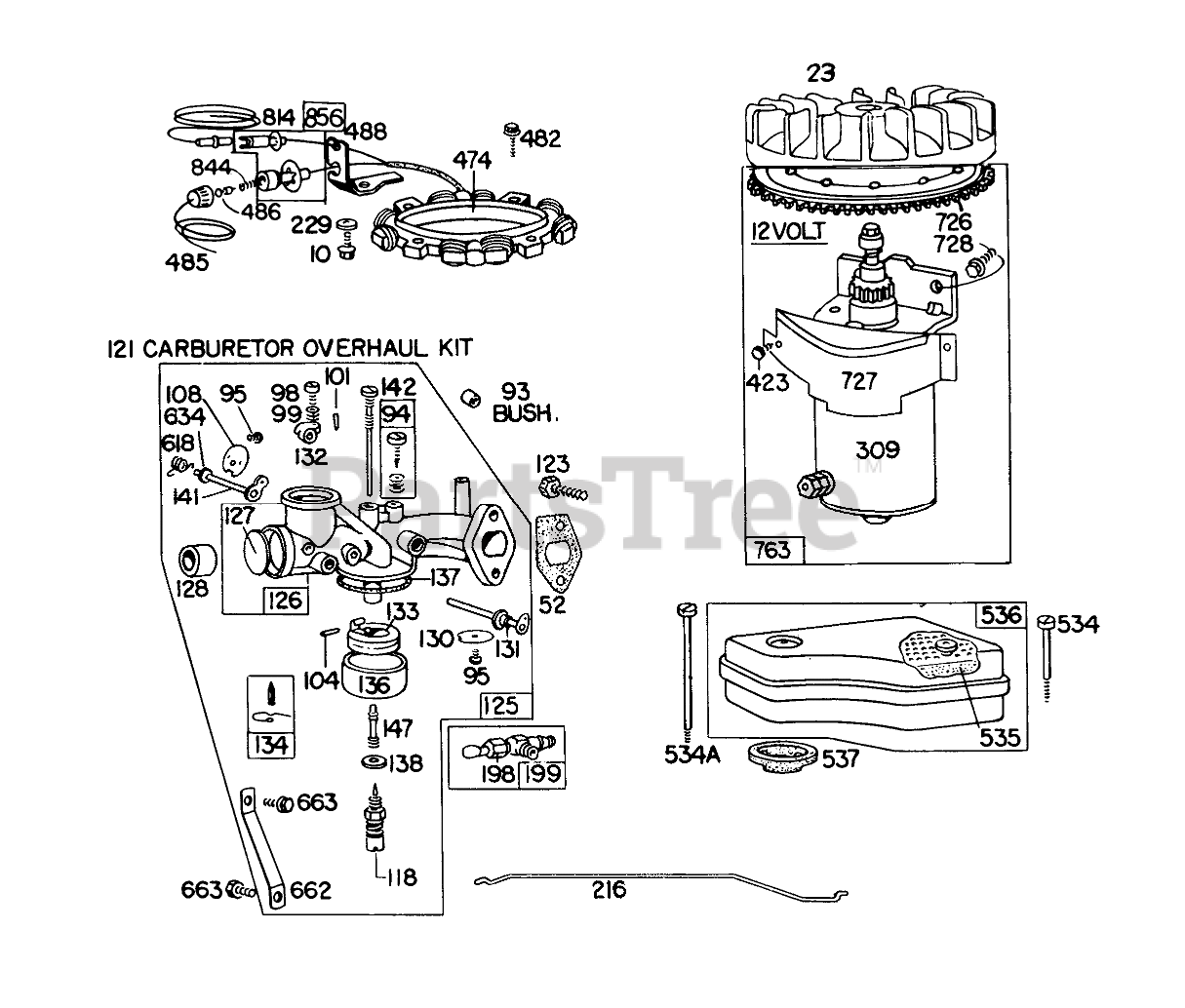

BRIGGS & STRATTON MODEL 191707-5633-01 (MODEL 57300) Parts Diagram

  • Title

10

Briggs & Stratton 93536

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

23

Briggs & Stratton 391983

Flywheel

$

$

Not available

52

Briggs & Stratton 270824

Gasket-Carb. Mtg.
(Superseded to 272554S)

$5.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 299852.22

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

$3.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 222010

Valve

$7.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 391233

Valve-Needle
(Superseded to 396795)

$17.99

$

In Stock, only 3 left!

0

121

Briggs & Stratton 299852

Carburetor OverhauI Kit

$

$

Not available

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 390811

Carburetor Assembly
(Superseded to 491590)

$249.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 299851

Body Assy. Carburetor

$94.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211682

Venturi-Carburetor

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 221986

Valve-Throltle

$7.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 391512

Shaft & Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$13.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.22

$7.99

$

In Stock, Qty 16

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852.22

$3.49

$

In Stock, Qty 9

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 299852.22

$4.99

$

In Stock, Qty 11

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 299852.22

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 230932

Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 299852.22

$

$

Not available

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$28.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 261117

Link-Choke

$6.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

309

Motor-Starting (12 Volt) See Chart for Replacement Parts for Starting Motors on Page 23.

$

$

Not available

423

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 391520

Stator-Alternator
(Superseded to 592831)

$101.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 390888

Knob Assembly-Fuse

$14.99

$

Usually ships in 2-12 days

0

486

Briggs & Stratton 391507

Diode-Alternator

$17.99

$

Usually ships in 2-12 days

0

488

Briggs & Stratton 222211

Bracket-Fuse

$6.49

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93622

Screw Air Cleaner

$6.49

$

In Stock, only 2 left!

0

534A

Briggs & Stratton 93323

Screw-AirCleaner

$7.49

$

In Stock, only 3 left!

0

535

Briggs & Stratton 270528

Element-Air Cleaner
(Superseded to 270528S)

$15.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 391399

Cleaner Assy.-Air Uses:
(Superseded to 390379)

$37.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 270539

Gasket-Air Cleaner

$8.99

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 261116

Spring Choke

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

662

Briggs & Stratton 222027

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

726

Briggs & Stratton 392134

Gear-Ring (Aluminum) (Includes Mtg. Parts)
(Superseded to 696537)

$50.99

$

In Stock, only 1 left!

0

727

Briggs & Stratton 390233

Starter Pinion Cover
(Superseded to 395405)

$

$

Not available

728

Briggs & Stratton 93523

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

763

Briggs & Stratton 391604

Electric Starter Kit-12 Volt (Gear Drive)
(Superseded to 394952)

$

$

Not available

814

Briggs & Stratton 390867

Spring

$18.99

$

Usually ships in 2-12 days

0

844

Briggs & Stratton 261269

Spring

$2.49

$

Usually ships in 2-12 days

0

856

Briggs & Stratton 393304

Fuse Holder Parts

$2.99

$

Usually ships in 2-12 days

0
