57300 (8-32) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1979) CUTTING DECK Parts Diagram

Lawn Tractor

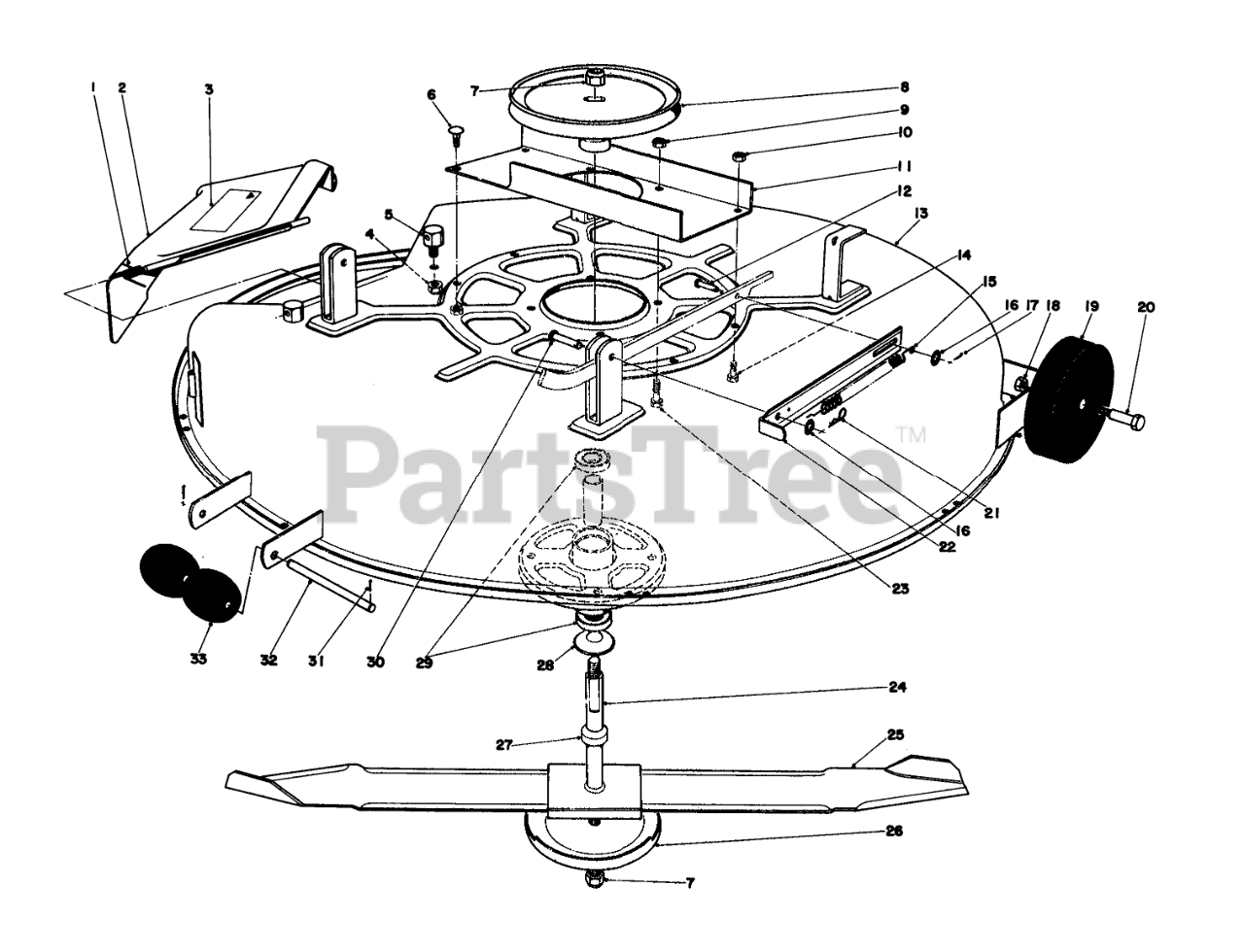

CUTTING DECK Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$20.99

$

Usually ships in 3-6 days

0

2

Toro 28-8190

Deflector Assembly (Incl. Ref. #3)

$

$

Not available

3

Toro 12-2890

Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

4

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 20+

0

5

Toro 28-7350

POST-PIVOT

$33.99

$

Usually ships in 3-6 days

0

6

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 17-0980

Nut

$9.99

$

In Stock, Qty 5

0

8

Toro 28-8000

PULLEY(BLADE DRIVE)

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

10

Toro 321534

Nut

$

$

Currently unavailable

11

Toro 36-1290

REINFORCEMENT CHANNEL

$

$

Not available

12

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

13

Toro 384760

Cutter Deck

$

$

Currently unavailable

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

15

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

18

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

19

Toro 29-6010

DECK WHEEL

$

$

Not available

20

Toro 3-2652

Bolt

$

$

Not available

21

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

22

Toro 28-2230

Strap-Deck Spring
(Superseded to 39-5370)

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 284280

Spindle Assembly (Incl. Ref. #27-29)

$

$

Currently unavailable

25

Toro 334750

Blade

$

$

Currently unavailable

26

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

27

Toro 38-3180

SPACER

$

$

Not available

28

Toro 38-0470

DUST COVER

$

$

Not available

29

Toro 37-0200

BEARING

$

$

Not available

30

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

31

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

32

Toro 7-0277

ROLLER SHAFT

$

$

Not available

33

Toro 294820

Roller

$

$

Currently unavailable
