57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) Carburetor No. 631982a Parts Diagram

32" Lawn Tractor

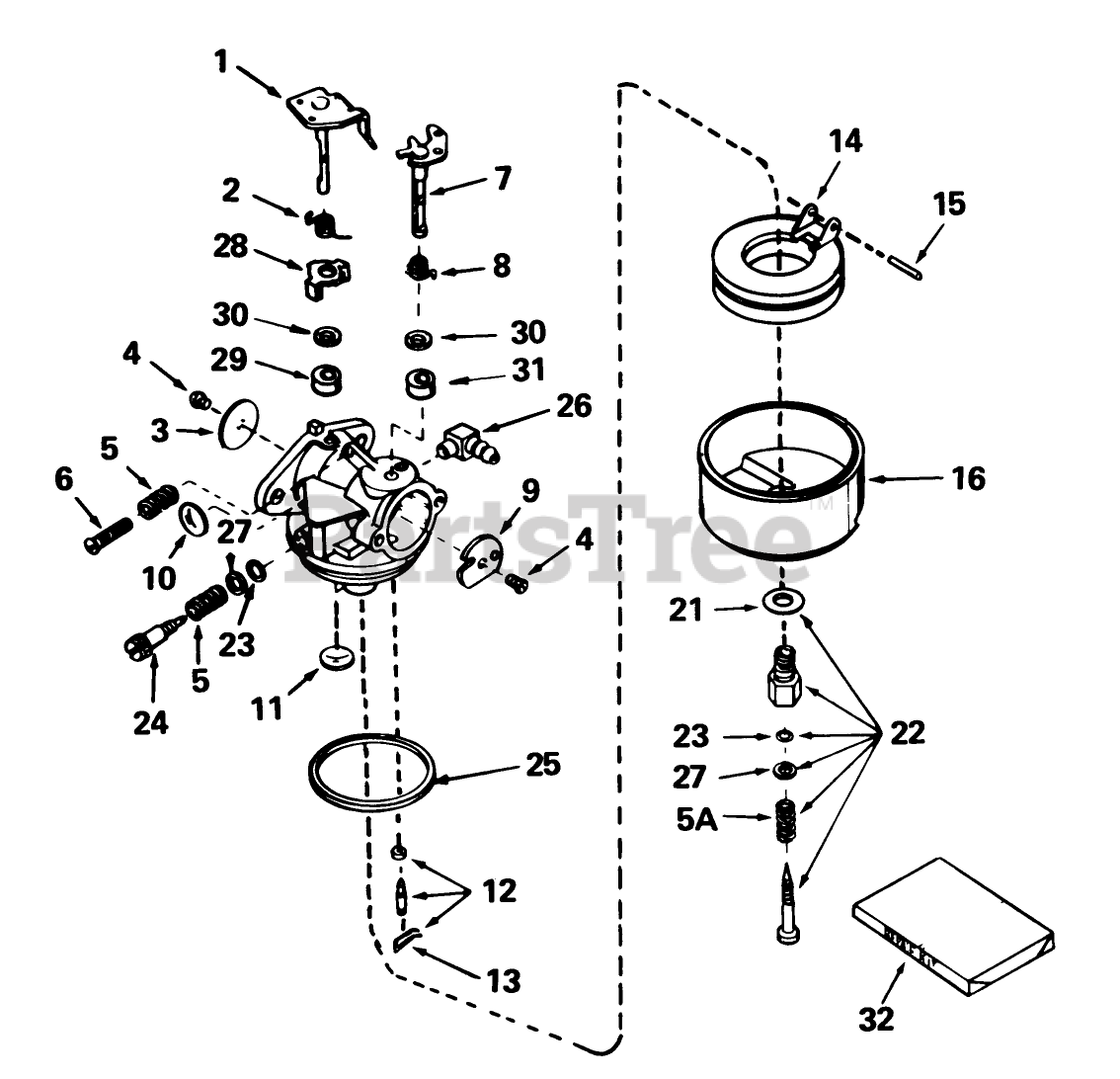

Carburetor No. 631982a Parts Diagram

  • Title

1

Toro 631776

Shaft/Lever-Throttle

$

$

Currently unavailable

2

Toro 631970

Spring-Return, Throttle

$

$

Currently unavailable

3

Toro 631778

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

5A

Toro 630738

Spring

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 631779

Shaft Lever Assy., Choke

$

$

Currently unavailable

8

Toro 631780A

Spring, Choke Return

$

$

Currently unavailable

9

Toro 631753

Choke Shutter

$

$

Currently unavailable

10

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

11

Toro 631027

Plug-Welch, Atmospheric Vent

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat Clip Assy. (Incl. No. 13)

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

13

Toro 631022

Clip-Spring

$

$

Currently unavailable

14

Toro 632019

Float

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

16

Toro 631867

Bowl-Float (no drain)

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

$

$

Currently unavailable

22

Toro 631583

Adjustment Screw Assembly, Main (Incl. Nos. 5A, 21, 23 27)

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

23

Toro 630740

ORing

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

24

Toro 630898

Screw Main Adjustment

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Indicates items included in repair kit part no. 631978.

$

$

Currently unavailable

26

Toro 631775

Fitting-Fuel

$

$

Currently unavailable

27

Toro 630739

Washer

$

$

Currently unavailable

28

Toro 631972

Retainer, Seal

$

$

Currently unavailable

29

Toro 631971

Seal-Dust

$

$

Currently unavailable

30

Toro 631184

Washer-Seal, Dust

$

$

Currently unavailable

31

Toro 631183

Seal-Dust

$

$

Currently unavailable

32

Toro 631978

Repair Kit

$

$

Currently unavailable
