57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) Engine Assembly Parts Diagram

32" Lawn Tractor

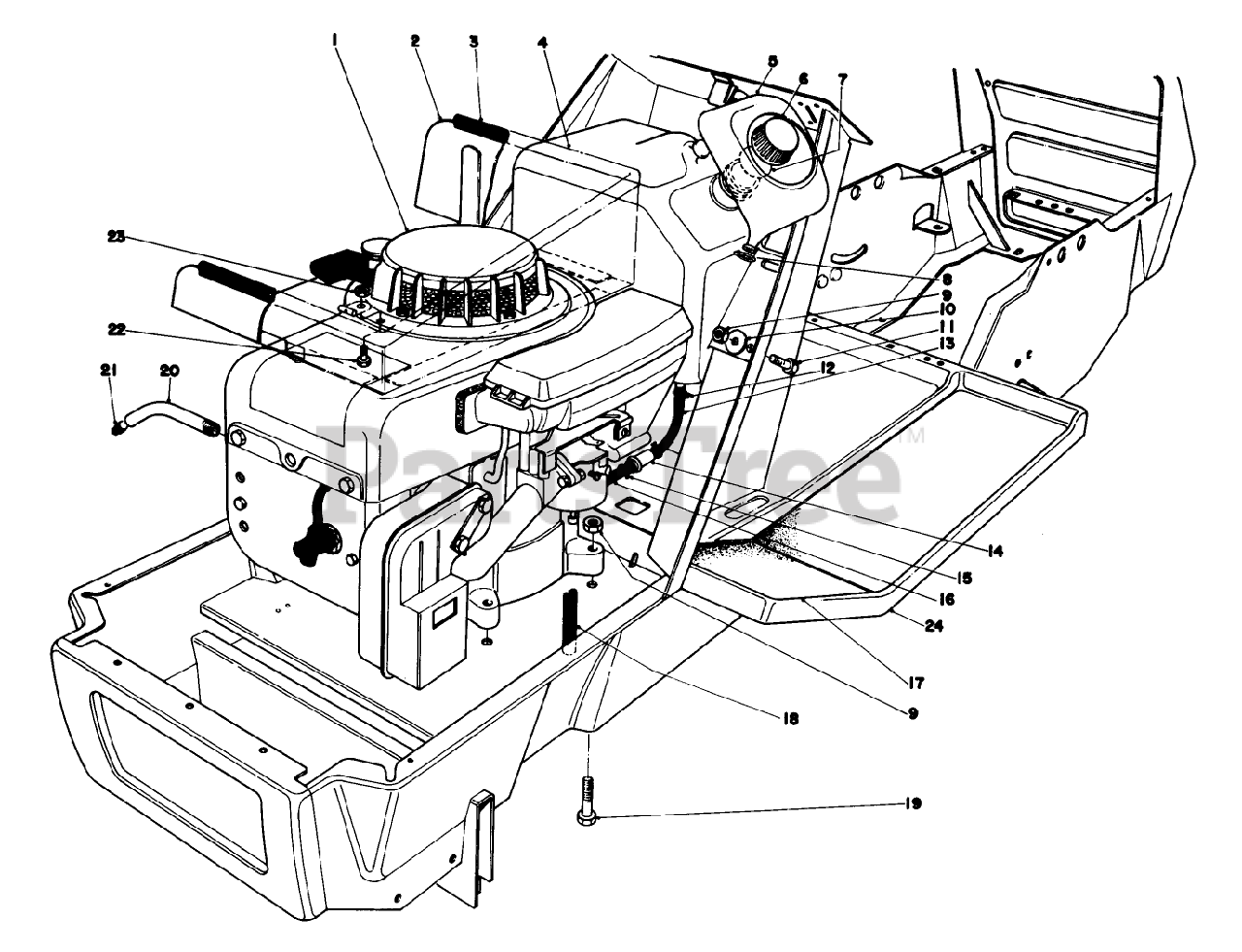

Engine Assembly Parts Diagram

  • Title

1

Toro 221-582

Engine

$

$

Currently unavailable

2

Toro 37-0530

AIR DUCT WA

$417.99

$

Usually ships in 3-6 days

0

3

Toro 37-0510

DISCONTINUED

$

$

Not available

4

Toro 36-3360

See Supercession: 13-0479
(Superseded to 13-0479)

$369.99

$

In Stock, only 1 left!

0

5

Toro 28-9450

See Supercession: 13-0479
(Superseded to 13-0479)

$369.99

$

In Stock, only 1 left!

0

6

Toro 28-9680

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

7

Toro 28-9670

See Supercession: 20-4620
(Superseded to 20-4620)

$11.99

$

Usually ships in 3-6 days

0

8

Toro 2412-62

DISCONTINUED

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, only 3 left!

0

10

Toro 5-1350

See Supercession: 5-4460
(Superseded to 5-4460)

$8.49

$

In Stock, Qty 6

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 8

0

13

Toro 37-0520

DISCONTINUED

$

$

Not available

14

Toro 2210-181

See Supercession: 56-6360
(Superseded to 56-6360)

$6.99

$

In Stock, only 4 left!

0

15

Toro 2412-33

See Supercession: 2412-98
(Superseded to 2412-98)

$1.99

$

In Stock, Qty 20+

0

16

Toro 28-9510

DISCONTINUED

$

$

Not available

17

Toro 27-9050

DISCONTINUED

$

$

Not available

Toro 27-9040

RH FOOT TREAD

Note: Not illustrated

$

$

Not available

18

Toro 28-9460

See Supercession: 39-4030
(Superseded to 39-4030)

$

$

Not available

19

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 16

0

20

Toro 28-8650

DISCONTINUED

$

$

Not available

21

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

24

Toro 36-1090

Frame

$

$

Currently unavailable
