57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) Engine Tecumseh Model No. Vm80-150120e Parts Diagram

32" Lawn Tractor

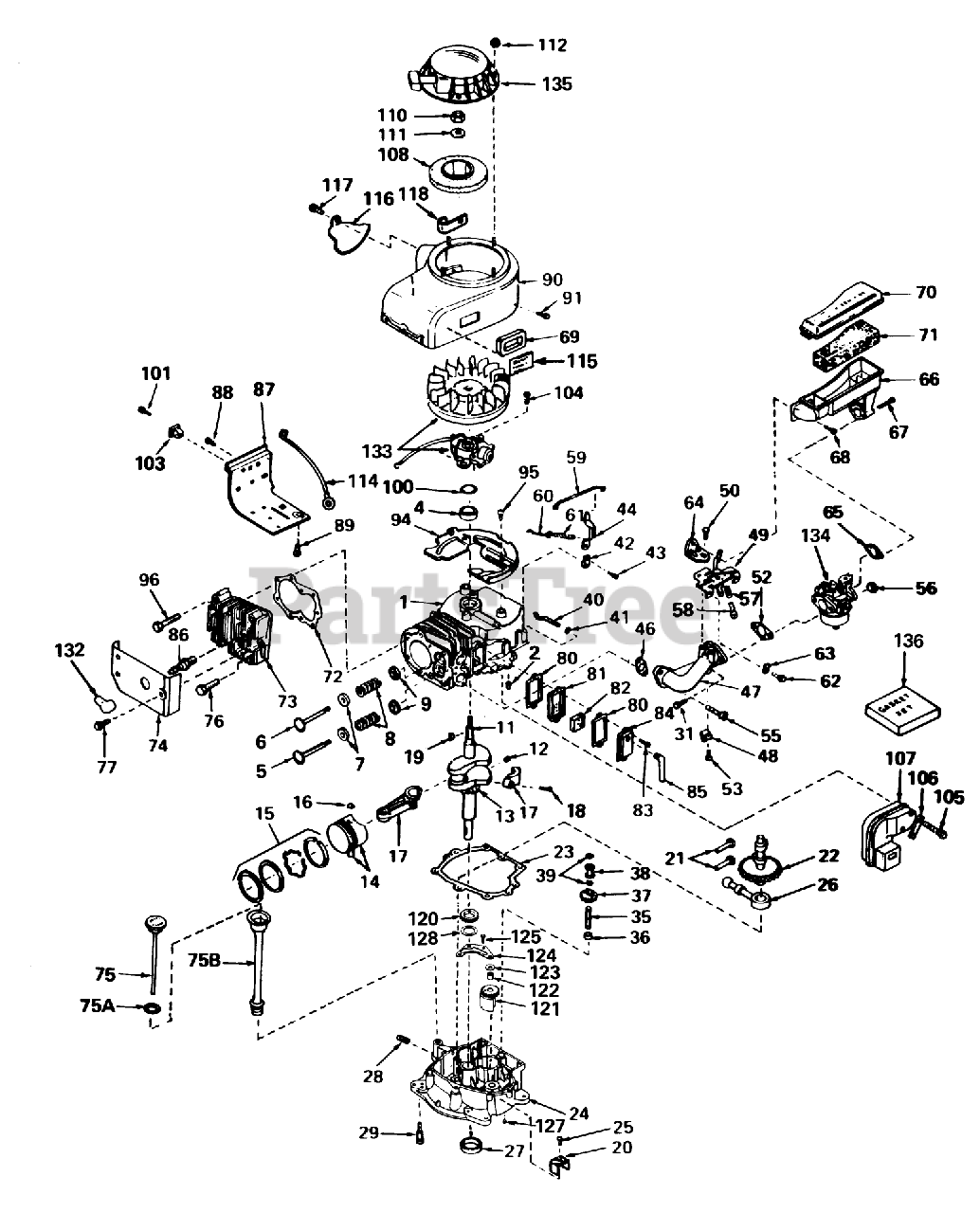

Engine Tecumseh Model No. Vm80-150120e Parts Diagram

  • Title

1

Toro 34328

Cylinder Assy. (Incl. Nos. 2 4)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 34035

Valve, Intake (Std.) (Incl. Ref. #58)

$

$

Currently unavailable

5

Toro 34036

Valve, Intake (1/32" oversize) (Incl. Ref. #58)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

11

Toro 34394

Crankshaft Assy. (Incl. Nos. 12, 13 120)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 33245

Gear, Crankshaft

$

$

Currently unavailable

14

Toro 34329

Piston, Pin Ring Assy. (Std.) (Incl. Nos. 15 16)

$

$

Currently unavailable

14

Toro 34330

Piston, Pin Ring. Assy. (.010 oversize) (Incl. Nos. 15 16)

$

$

Currently unavailable

14

Toro 34331

Piston, Pin Ring Assy. (.020 oversize) (Incl. Nos. 15 16)

$

$

Currently unavailable

15

Toro 34332

Ring Set (Std.)

$

$

Currently unavailable

15

Toro 34333

Ring Set (.010" OS)

$

$

Currently unavailable

15

Toro 34334

Ring Set (.020" OS)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

18

Toro 650662A

Bolt, Connecting Rod

$

$

Currently unavailable

19

Toro 32589

Key-Flywheel

$

$

Currently unavailable

20

Toro 33581

Screen, Oil Filter

$

$

Currently unavailable

21

Toro 34034

Lifter-Valve

$

$

Currently unavailable

22

Toro 34040

Camshaft (Mech. Compression Release)

$

$

Currently unavailable

23

Toro 33253

Gasket, Cylinder Cover
(Superseded to 742674)

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Not available

24

Toro 34398

Flange, Mounting (Incl. Nos. 20, 25, 27, 28, 35 127)

$

$

Currently unavailable

25

Toro 29117

Screw

$

$

Currently unavailable

26

Toro 31356

Pump, Oil

$

$

Currently unavailable

27

Toro 31950

Seal, Oil

$

$

Currently unavailable

28

Toro 31927

Plug, Drain

$

$

Currently unavailable

29

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

31

Toro 30088A

Screw (1/4-28x1)

$

$

Currently unavailable

35

Toro 30668

Shaft, Governor

$

$

Currently unavailable

36

Toro 31707

Spacer

$

$

Currently unavailable

37

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

38

Toro 30588A

Spool-Governor

$

$

Currently unavailable

39

Toro 29193

Ring-Retaining

$

$

Currently unavailable

40

Toro 33577

Rod, Governor

$

$

Currently unavailable

41

Toro 28277

Washer-Flat

$

$

Currently unavailable

42

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

43

Toro 650548

Screw

$

$

Currently unavailable

44

Toro 32651

Governor Lever

$

$

Currently unavailable

46

Toro 27915

Gasket-Intake

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Currently unavailable

47

Toro 33862

Pipe, Intake

$

$

Currently unavailable

48

Toro 33261

Bracket, Intake Pipe

$

$

Currently unavailable

49

Toro 33865B

Control Assy., Speed (Incl. Nos. 57 58)

$

$

Currently unavailable

50

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

52

Toro 33861

Gasket, Carburetor

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Currently unavailable

53

Toro 650738

Screw (1/4-20 X 5/8)

$

$

Currently unavailable

55

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

56

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

57

Toro 31342

Spring-Compression

$

$

Currently unavailable

58

Toro 650549

Screw

$

$

Currently unavailable

59

Toro 33860

Link, Throttle

$

$

Currently unavailable

60

Toro 33151

Link Governor Spring

$

$

Currently unavailable

61

Toro 31361

Spring Governor

$

$

Currently unavailable

62

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

63

Toro 27793

Conduit

$

$

Currently unavailable

64

Toro 33630

Bracket, Air Cleaner

$

$

Currently unavailable

65

Toro 33629

Clutch Arm Assembly
(Superseded to 740229)

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Not available

66

Toro 33633

Body, Air Cleaner

$

$

Currently unavailable

67

Toro 650762

Screw Fil Hd.

$

$

Currently unavailable

68

Toro 650707

Screw, Fil. Hd. Sems

$

$

Currently unavailable

69

Toro 33634

Gasket, Air Cleaner

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Currently unavailable

70

Toro 33632

Cover, Air Cleaner
(Superseded to 740051)

$

$

Not available

71

Toro 33631

Element, Air Cleaner

$

$

Currently unavailable

72

Toro 34041

Gasket-Cylinder Head

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Currently unavailable

73

Toro 34030

Head Cylinder

$

$

Currently unavailable

74

Toro 33272

Cover, Cylinder Head

$

$

Not available

75

Toro 33589A

Dipstick, Oil (Incl. No. 75A)

$

$

Currently unavailable

75A

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

75B

Toro 33992A

Tube, Oil Filler

$

$

Currently unavailable

76

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

77

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

80

Toro 27896

Gasket-Breather

Note: Indicates Parts Included in Gasket Set, Ref. No. 136.

$

$

Currently unavailable

81

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

82

Toro 28424

Element-Breather

$

$

Currently unavailable

83

Toro 650128

Screw

$

$

Currently unavailable

84

Toro 28425

Cover-Valve

$

$

Currently unavailable

85

Toro 27627

Tube-Breather

$

$

Currently unavailable

86

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

86

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

87

Toro 33273

Extension, Blower Housing

$

$

Currently unavailable

88

Toro 650128

Screw

$

$

Currently unavailable

89

Toro 30688

Screw

$

$

Currently unavailable

90

Toro 34094

Housing, Blower

$

$

Currently unavailable

91

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

94

Toro 29536

Baffle Blower Housing

$

$

Currently unavailable

95

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

96

Toro 650788

Screw (5/16-18x3/4)

$

$

Currently unavailable

100

Toro 33876

Gasket Stator

$

$

Currently unavailable

101

Toro 650643

Screw

$

$

Currently unavailable

103

Toro 28545

Grommet

$

$

Currently unavailable

104

Toro 650489

Screw

$

$

Currently unavailable

105

Toro 650729

Screw, Hex Hd.

$

$

Currently unavailable

106

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

107

Toro 34400

Muffler

$

$

Currently unavailable

108

Toro 33662

Hub Screen Assy., Starter

$

$

Currently unavailable

110

Toro 8116

DISCONTINUED

$

$

Not available

111

Toro 650490

Washer

$

$

Currently unavailable

112

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

114

Toro 30831

Wire, Ground

$

$

Currently unavailable

115

Toro 34374

Decal, Instruction

$

$

Currently unavailable

116

Toro 33013

Screw

$

$

Currently unavailable

117

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

118

Toro 33997

Clip Oil Tube

$

$

Currently unavailable

120

Toro 34395

Gear, Crankshaft Counterbalance

$

$

Currently unavailable

121

Toro 34396

Weight, Counterbalance Assy., (Incl. No. 122)

$

$

Currently unavailable

122

Toro 33501

Bearing, Needle

$

$

Currently unavailable

123

Toro 650810

Washer, Thrust

$

$

Currently unavailable

124

Toro 34397

Bracket, Shaft Retaining

$

$

Currently unavailable

125

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

127

Toro 28534

Plug-Pipe

$

$

Not available

128

Toro 650811

Washer, Thrust

$

$

Currently unavailable

132

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

133

Toro 610842

Magneto (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

134

Toro 631982A

Carburetor (Incl. No. 52)

$

$

Currently unavailable

135

Toro 590479

Starter, Rewind

$

$

Currently unavailable

136

Toro 33279C

Gasket Set

$

$

Currently unavailable
