57356 (11-42) - Toro Lawn Tractor (SN: 000000001 - 000999999) (1980) TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

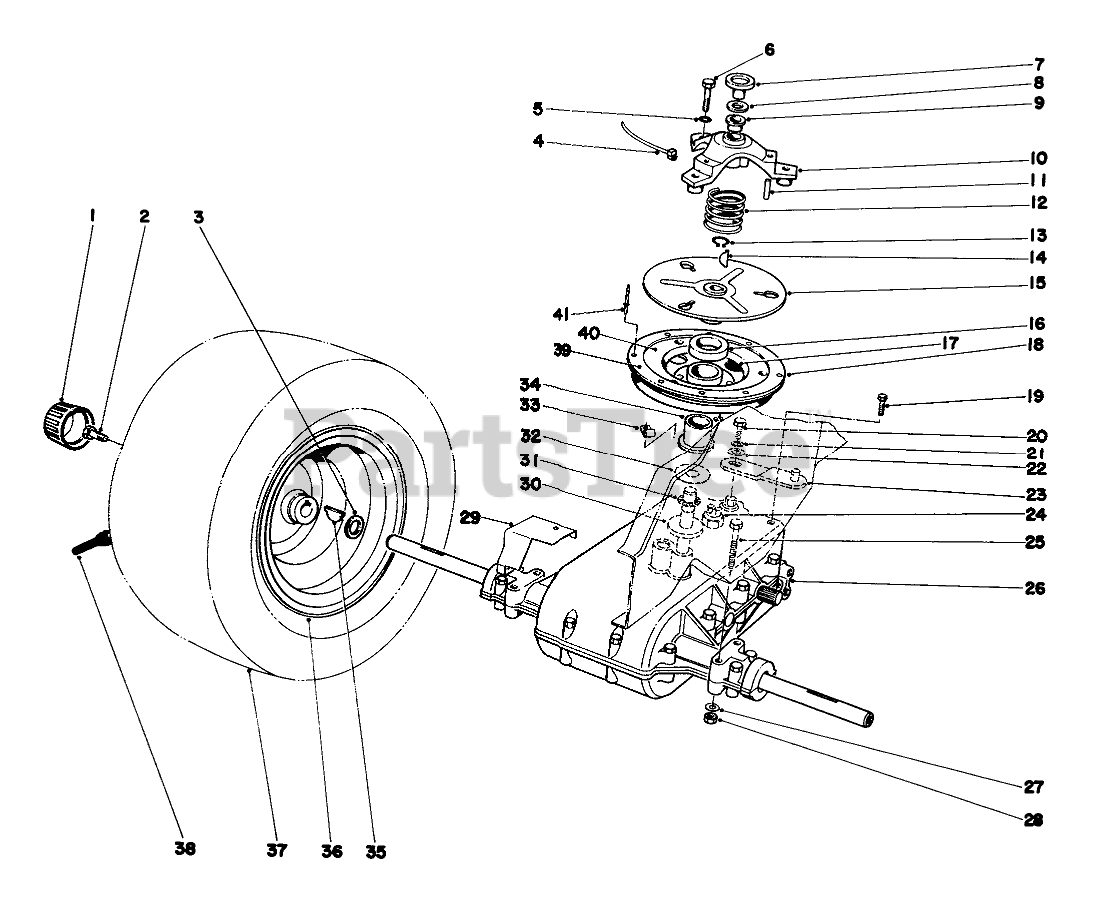

TRANSAXLE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.49

$

In Stock, Qty 20+

0

2

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 37-4700

SPACER-WHEEL

$43.99

$

Usually ships in 3-6 days

0

4

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

5

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 36-2130

CLUTCH CAP

$24.99

$

In Stock, only 1 left!

0

8

Toro 252-94

THRUST RACE

$8.49

$

In Stock, only 3 left!

0

9

Toro 256-259

BUSHING-FLANGE

$3.49

$

In Stock, only 1 left!

0

10

Toro 28-2560

Cover Clutch (Incl. Ref. #15 & 17)

$

$

Not available

11

Toro 252-92

NEEDLE BRG

$25.99

$

Usually ships in 3-6 days

0

12

Toro 36-2220

COMPRESSION SPRING

$

$

Not available

13

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

14

Toro 3257-30

KEY-WOODRUFF

$5.49

$

In Stock, only 4 left!

0

15

Toro 27-9030

Clutch Plate

$

$

Not available

16

Toro 28-4220

WASHER FELT

$8.99

$

Usually ships in 3-6 days

0

17

Toro 2410-40

PLUG

$4.99

$

Usually ships in 3-6 days

0

18

Toro 8-4899

Sheave Assembly (Incl. Ref. #34 & 39-41)
(Superseded to 11-0119)

$

$

Not available

19

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

20

Toro 329-2

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

21

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 28-2380

SHIFT LEVER WA B

$

$

Not available

24

Toro 28-4250

NEUTRAL SWITCH

$40.99

$

Usually ships in 3-6 days

0

25

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Toro 39-4780

Transaxle

$

$

Not available

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

29

Toro 29-6940

GRASS SHIELD B

$

$

Not available

30

Toro 39-4770

SPACER

$

$

Not available

31

Toro 252-58

NEEDLE BRG

$37.99

$

Usually ships in 3-6 days

0

32

Toro 27-8820

THRUST WASHER

$

$

Not available

33

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

34

Toro 28-4150

Bushing
(Superseded to 11-0119)

$

$

Not available

35

Toro 3257-40

KEY

$9.49

$

Usually ships in 3-6 days

0

36

Toro 242-66

Rim
(Superseded to 47-5150)

$

$

Not available

37

Toro 231-98

Tire

$

$

Not available

38

Toro 232-41

Tube
(Superseded to 232-37)

$33.99

$

In Stock, only 2 left!

0

39

Toro 27-8800

CLUTCH PAD

$

$

Not available

40

Toro 27-8790

Retainer Ring
(Superseded to 40-4630)

$

$

Not available

41

Toro 3295-13

Rivet
(Superseded to 60-9220)

$

$

Not available
