57356 (11-42) - Toro Lawn Tractor (SN: 002000001 - 002999999) (1982) Briggs Stratton Model 252707-0230-01 Parts Diagram

Lawn Tractor

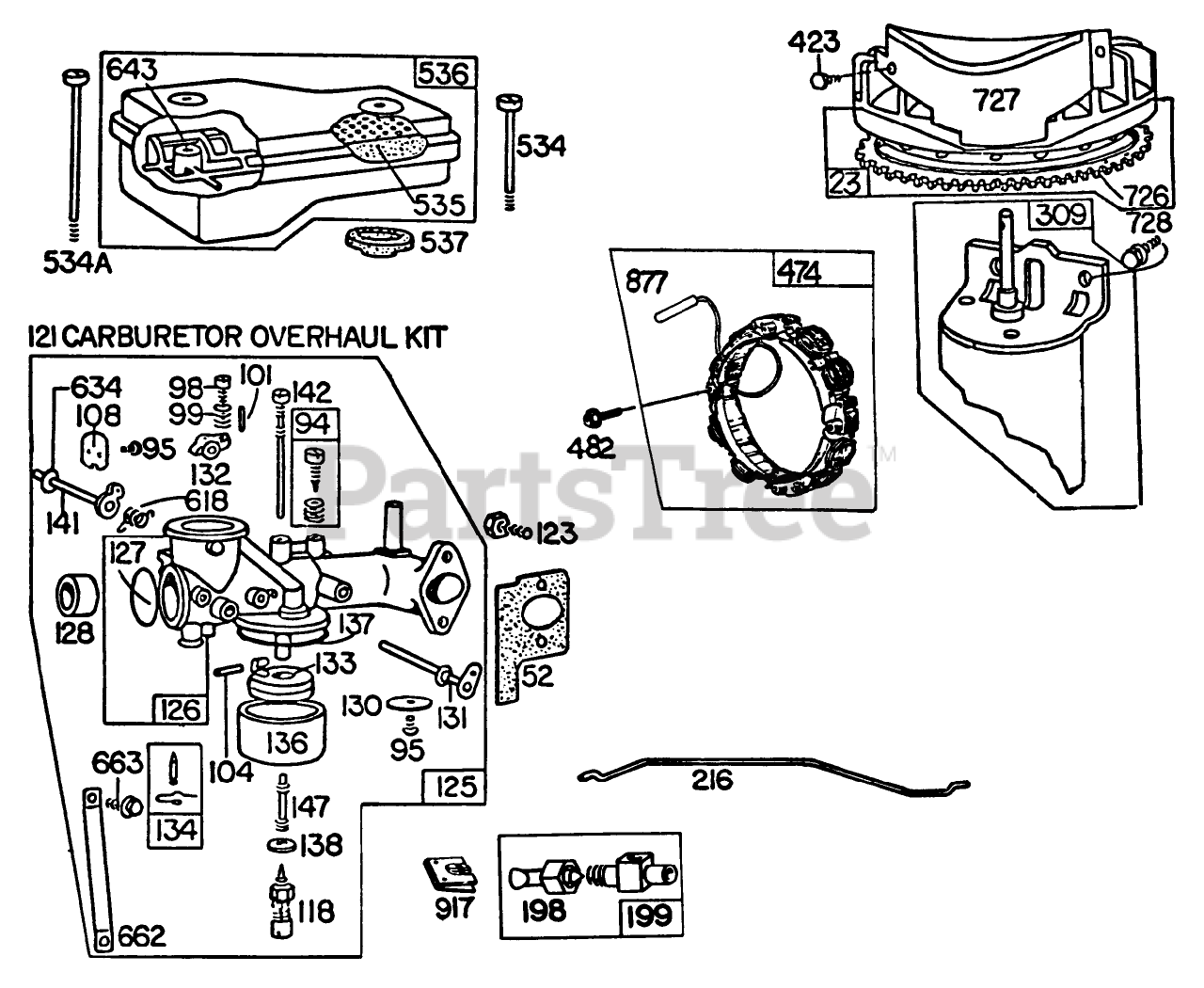

Briggs Stratton Model 252707-0230-01 Parts Diagram

  • Title

23

Toro 391988

Flywheel and Ring Gear

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-Part No. 393411

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

95

Toro 93499

Screw

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

108

Toro 222010

Valve

$

$

Currently unavailable

118

Toro 391233

Valve-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

121

Toro 299852

Carburetor OverhauI Kit

$

$

Currently unavailable

123

Toro 93357

Screw

$

$

Currently unavailable

125

Toro 393410

Carburetor Assembly

$

$

Currently unavailable

126

Toro 391787

Body Assy.-Carburetor

$

$

Currently unavailable

127

Toro 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

128

Toro 211960

Venturi-Carburetor

$

$

Currently unavailable

130

Toro 222858

Valve-Throttle

$

$

Currently unavailable

131

Toro 391512

Shaft Lever-Throttle

$

$

Currently unavailable

132

Toro 211712

Stop-Thottle

$

$

Currently unavailable

133

Toro 299707

Float-Carburetor

$

$

Currently unavailable

134

Toro 299096

Valve-FuelInlet

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

136

Toro 221995

Bowl-Float

$

$

Currently unavailable

137

Toro 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

138

Toro 222014

Washer-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

141

Toro 390684

Shaft and Lever

$

$

Currently unavailable

142

Toro 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

147

Toro 230932

Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 299852.

$

$

Currently unavailable

198

Toro 293934

Valve-Shut Off

$

$

Currently unavailable

199

Toro 390303

Outlet-Fuel Tank

$

$

Currently unavailable

216

Toro 261274

Link-Choke

$

$

Currently unavailable

309

Motor-Starting (see page 27 for parts breakdown)

$

$

Not available

423

Toro 93410

Screw

$

$

Currently unavailable

474

Toro 392595

Alternator

$

$

Currently unavailable

482

Toro 93621

Screw

$

$

Currently unavailable

534

Toro 93622

Screw Air Cleaner

$

$

Currently unavailable

534A

Toro 93323

Screw-AirCleaner

$

$

Currently unavailable

535

Toro 270843

Element-Air Cleaner

$

$

Currently unavailable

536

Toro 391786

Cleaner Assembly-Air

$

$

Currently unavailable

537

Toro 270853

Gasket-Air Cleaner

$

$

Currently unavailable

618

Toro 261116

Spring Choke

$

$

Currently unavailable

634

Toro 270382

Washer

$

$

Currently unavailable

643

Toro 280118

Support-Element

$

$

Currently unavailable

662

Toro 222311

Bracket-Carburetor

$

$

Currently unavailable

663

Toro 93572

Screw

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 390233

Starter Pinion Cover

$

$

Currently unavailable

728

Toro 93523

Screw

$

$

Currently unavailable

877

Toro 393537

Connector-Wire, Tri Circuit

$

$

Currently unavailable

917

Toro 223271

Valve Handle

$

$

Currently unavailable
