57356 (11-42) - Toro Lawn Tractor (SN: 004000001 - 004999999) (1984) Engine Briggs Stratton Model 253707-0157-01 (continued) Parts Diagram

Lawn Tractor

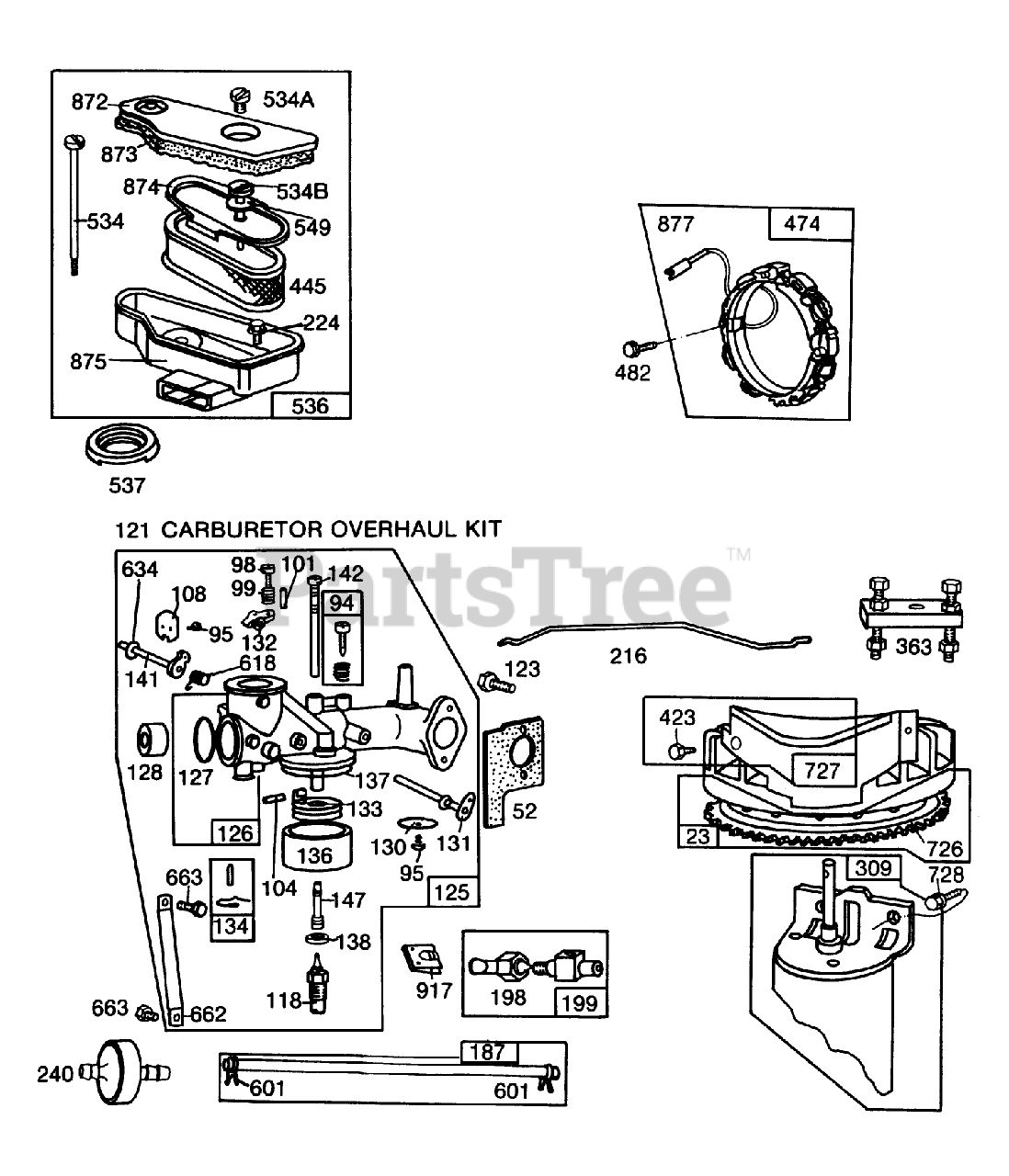

Engine Briggs Stratton Model 253707-0157-01 (continued) Parts Diagram

  • Title

23

Toro 391988

Flywheel and Ring Gear

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Indicates items included in gasket set part no. 393411.

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

95

Toro 93499

Screw

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

108

Toro 222010

Valve

$

$

Currently unavailable

118

Toro 396568

Valve Needle

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

121

Toro 394698

Kit-Carburetor

$

$

Currently unavailable

123

Toro 93357

Screw

$

$

Currently unavailable

125

Toro 396501

Carburetor Assembly

$

$

Currently unavailable

126

Toro 396574

Body Assy.-Carburetor (Two 271013 Foam Washers Included in All Ref.126)

$

$

Currently unavailable

127

Toro 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

128

Toro 211960

Venturi-Carburetor

$

$

Currently unavailable

130

Toro 222858

Valve-Throttle

$

$

Currently unavailable

131

Toro 391512

Shaft Lever-Throttle

$

$

Currently unavailable

132

Toro 211712

Stop-Thottle

$

$

Currently unavailable

133

Toro 299707

Float-Carburetor

$

$

Currently unavailable

134

Toro 299096

Valve-FuelInlet

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

136

Toro 221995

Bowl-Float

$

$

Currently unavailable

137

Toro 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

138

Toro 222014

Washer-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

141

Toro 390684

Shaft and Lever

$

$

Currently unavailable

142

Toro 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

147

Toro 231323

Screw

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Not available

167

Toro 299146

Line-Fuel (28" long) (Cut to Suit)

$

$

Currently unavailable

198

Toro 293934

Valve-Shut Off

$

$

Currently unavailable

199

Toro 390303

Outlet-Fuel Tank

$

$

Currently unavailable

216

Toro 261610

Link-Choke

$

$

Currently unavailable

224

Toro 94018

Screw

$

$

Currently unavailable

240

Toro 298090

Filter

$

$

Currently unavailable

309

Motor Starting (12 Volt) (See Individual Breakdown)

$

$

Not available

363

Toro 19203

Puller-Flywheel

$

$

Currently unavailable

423

Toro 93984

Screw

$

$

Currently unavailable

445

Toro 393725

Cartridge-Air Cleaner

$

$

Currently unavailable

474

Toro 392595

Alternator

$

$

Currently unavailable

482

Toro 93621

Screw

$

$

Currently unavailable

534

Toro 93911

Screw-Air Cleaner

$

$

Currently unavailable

534A

Toro 93913

Screw-Cover Mtg.

$

$

Currently unavailable

534B

Toro 93910

Screw-Air Cleaner

$

$

Currently unavailable

536

Toro 393749

Cleaner-Air

$

$

Currently unavailable

537

Toro 270853

Gasket-Air Cleaner

$

$

Currently unavailable

549

Toro 270978

Washer-Air Cleaner

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

616

Toro 261116

Spring Choke

$

$

Currently unavailable

634

Toro 270382

Washer

$

$

Currently unavailable

662

Toro 222311

Bracket-Carburetor

$

$

Currently unavailable

663

Toro 93572

Screw

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 395405

Cover-Starter

$

$

Currently unavailable

728

Toro 93535

Crew

$

$

Currently unavailable

872

Toro 396966

Cover Group-Air Cleaner (Includes Gasket)

$

$

Currently unavailable

873

Toro 271591

Gasket-Air Cleaner Cover

$

$

Currently unavailable

874

Toro 222898

Plate-Air Cleaner Cartridge

$

$

Currently unavailable

875

Toro 333726

Body-Air Cleaner

$

$

Currently unavailable

877

Toro 393537

Connector-Wire, Tri Circuit

$

$

Currently unavailable

917

Toro 223271

Valve Handle

$

$

Currently unavailable
