57356 (11-42) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) HOOD ASSEMBLY Parts Diagram

Lawn Tractor

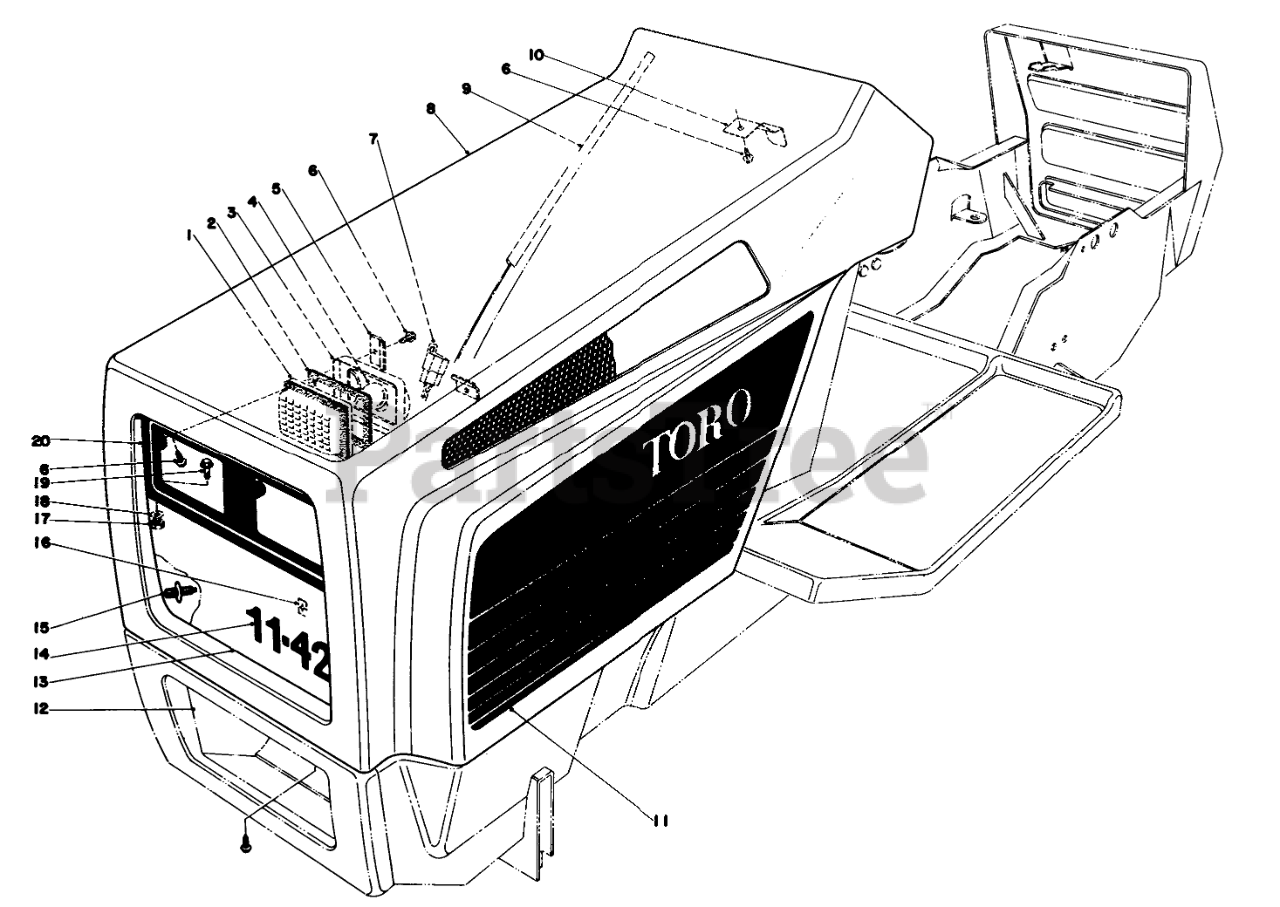

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 219

14 Lens

$

$

Currently unavailable

2

Toro 219-13

Gasket Lens
(Superseded to 8-3579)

$

$

Not available

3

Toro 219-12

Lamp-Green

$

$

Currently unavailable

4

Bulb GE #1156

$

$

Not available

5

Toro 28-0050

HEADLIGHT CLAMP

$

$

Not available

6

Toro 3210476

Screw

$

$

Currently unavailable

7

Toro 218-493

CONNECTOR BODY

$

$

Not available

8

Toro 36-5330

Hood

$

$

Currently unavailable

9

Toro 28-3810

RUBBER EXT SEAL

$

$

Not available

10

Toro 27-9130

SPRING LATCH

$

$

Not available

11

Toro 284230

Decal Hood LH.

$

$

Currently unavailable

Toro 28-4240

R.H. HOOD DECAL

Note: Not illustrated

$

$

Not available

12

Toro 28-0010

LOWER GRILLE

$65.99

$

Usually ships in 3-6 days

0

13

Toro 36-2090

HEADLIGHT GRILLE

$

$

Not available

14

Toro 36-2660

GRILLE NAMEPLATE

$

$

Not available

15

Toro 27-9120

HINGE BRKT STUD

$

$

Not available

16

Toro 3290-299

CLIP

$

$

Not available

17

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 28-0040

HEADLIGHT PANEL B

$

$

Not available

Toro 28-3880

Headlight Assy.(Incl. Ref. #14)
(Superseded to 8-3579)

Note: Not illustrated

$

$

Not available

Toro 8-1539

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
