57356 (11-42) - Toro Lawn Tractor (SN: 008000001 - 008999999) (1978) STEERING WHEEL & DASH ASSEMBLY Parts Diagram

Lawn Tractor

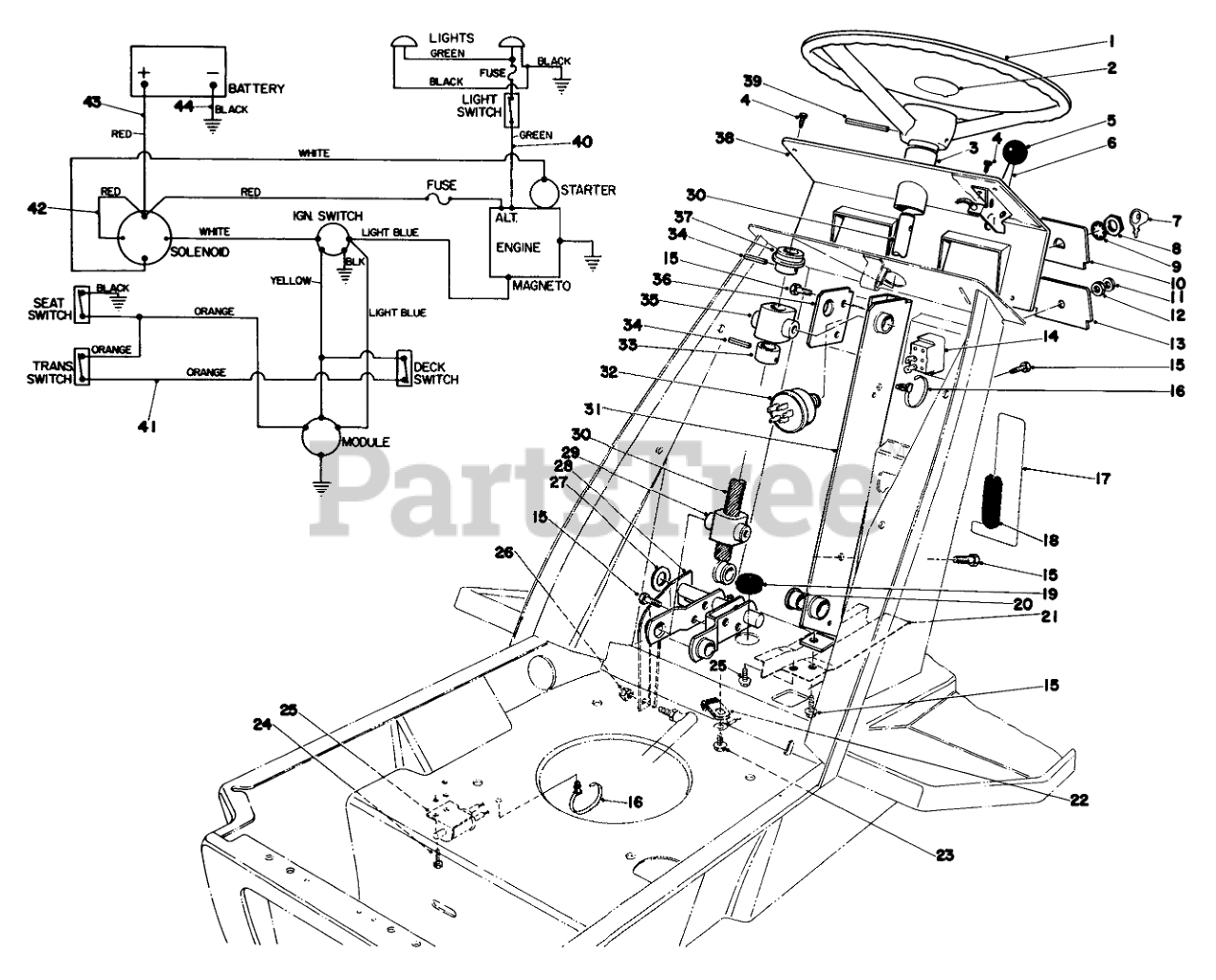

STEERING WHEEL & DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 28-3820

Steering Wheel

$

$

Not available

2

Toro 36-2670

Cap Steering Wheel

$

$

Not available

3

Toro 28-3960

Tube Steering

$

$

Not available

4

Toro 3210476

Screw

$

$

Currently unavailable

5

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

6

Toro 28-0090

Throttle Control
(Superseded to 38-0990)

$124.99

$

Usually ships in 3-6 days

0

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

8

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

9

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

10

Toro 28-2690

DASH PANEL INSERT

$

$

Not available

11

Toro 218-497

NUT-BULB

$

$

Not available

12

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 2 left!

0

13

Toro 28-2510

DASH PANEL INSERT

$

$

Not available

14

Toro 28-4110

Light Switch (Incl. Ref. #11-12)

$46.99

$

Usually ships in 3-6 days

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

16

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

17

Toro 36-2230

Decal-Deck

$

$

Not available

18

Toro 29-4780

EDGE MOULDING

$

$

Not available

19

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

20

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

21

Toro 36-1570

WIRE HARNESS SHLD B

$

$

Not available

22

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

24

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

25

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

26

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

27

Toro 11-6240

WASHER

$

$

Not available

28

Toro 36-3470

STEERING LINK WA BO

$

$

Not available

29

Toro 37-0140

FOLLOWER STEER SHAFT

$

$

Not available

30

Toro 33-4530

STRG SHAFT

$

$

Not available

31

Toro 36-2040

STRG BRKT B

$

$

Not available

32

Toro 23-0660

Ignition Switch (Incl. Ref. #7-9)

$22.99

$

In Stock, only 1 left!

0

33

Toro 28-3940

STRG SHAFT COLLAR

$60.99

$

Usually ships in 3-6 days

0

34

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

35

Toro 37-0150

BRG STEERING SHAFT

$

$

Not available

36

Toro 28-0390

STRG BRG SUPPORT

$

$

Not available

37

Toro 28-3950

Collar Steering Shaft

$

$

Not available

38

Toro 28-2460

DASH PANEL

$

$

Not available

39

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

40

Toro 28-4300

Wire Harness Light

$

$

Not available

41

Toro 36-2850

WIRE HARNESS

$

$

Not available

42

Toro 28-7880

SOLENOID WIRE

$

$

Not available

43

Toro 28-3890

WIRE ASM

$

$

Not available

44

Toro 28-3860

WIRE ASM

$36.99

$

Usually ships in 3-6 days

0
