57357 (11-44) - Toro Lawn Tractor (SN: 002000001 - 002999999) (1982) Front Axle Assembly Parts Diagram

Lawn Tractor

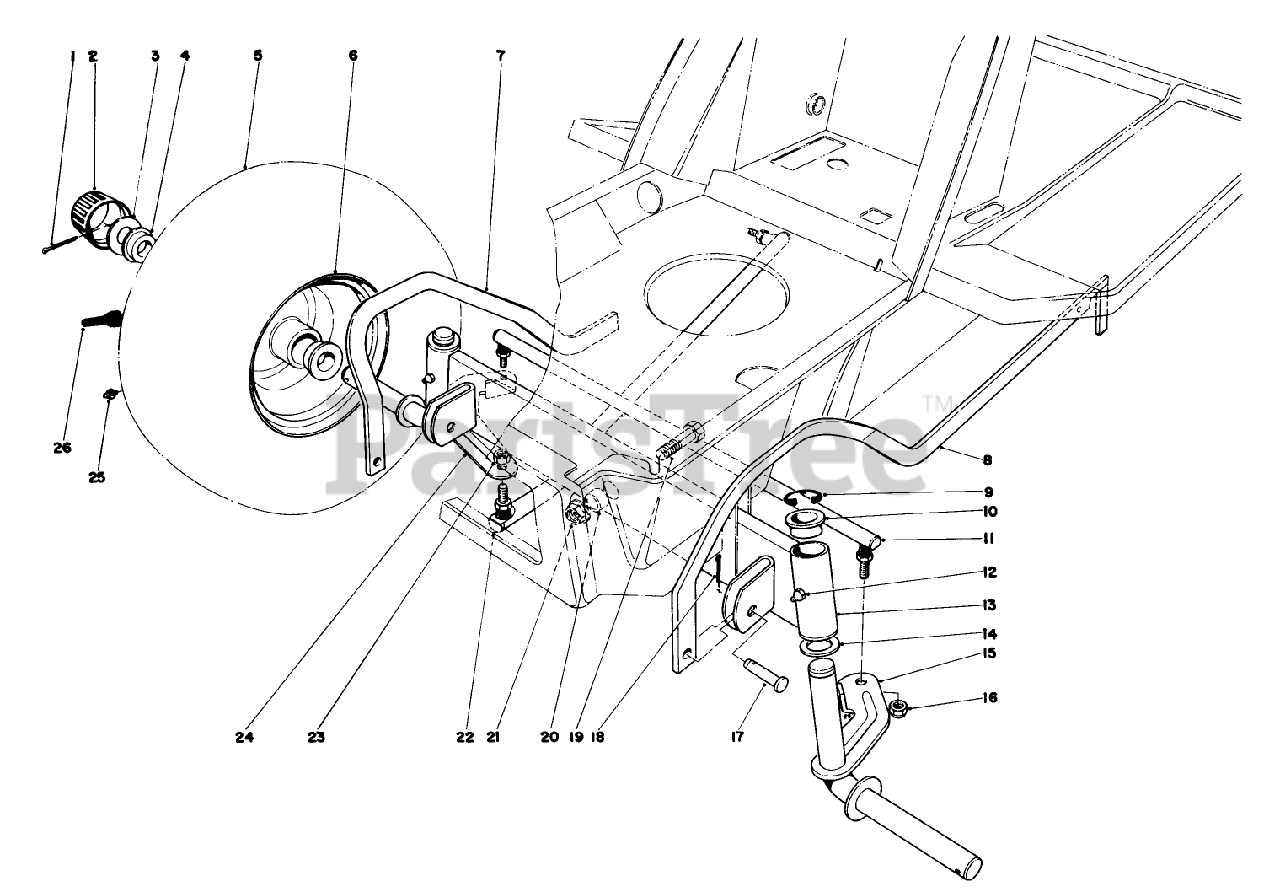

Front Axle Assembly Parts Diagram

  • Title

1

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 8

0

2

Toro 28-0060

See Supercession: 61-9780
(Superseded to 61-9780)

$8.99

$

In Stock, Qty 20+

0

3

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 18

0

4

Toro 251-210

See Supercession: 110513
(Superseded to 110513)

$23.99

$

In Stock, Qty 20+

0

5

Toro 231-99

DISCONTINUED

$

$

Not available

6

Toro 242-45

Rim

$

$

Currently unavailable

7

Toro 40-1610

DISCONTINUED

$

$

Not available

8

Toro 40-1620

DISCONTINUED

$

$

Not available

9

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 7

0

10

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

11

Toro 28-0070

See Supercession: 47-5160
(Superseded to 47-5160)

$

$

Not available

12

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

13

Toro 36-3420

DISCONTINUED

$

$

Not available

14

Toro 3-6498

WASHER-THRUST

$7.49

$

In Stock, Qty 20+

0

15

Toro 33-3170

DISCONTINUED

$

$

Not available

16

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

17

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

18

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

19

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

20

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

21

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 9

0

22

Toro 39-1910

DISCONTINUED

$

$

Not available

23

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

24

Toro 33-3180

RH SPINDLE WA *PP

$

$

Not available

25

Toro 302-22

FITTING-GREASE

$14.99

$

Usually ships in 3-6 days

0

26

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

Toro 232-39

TUBE-INNER

Note: Not illustrated

$33.99

$

In Stock, only 1 left!

0
