57360 (11-32) - Toro Lawn Tractor (SN: 003000001 - 003999999) (1983) TWIN BAGGER GRASS CATCHER MODEL NO. 59122 (OPTIONAL) Parts Diagram

Lawn Tractor

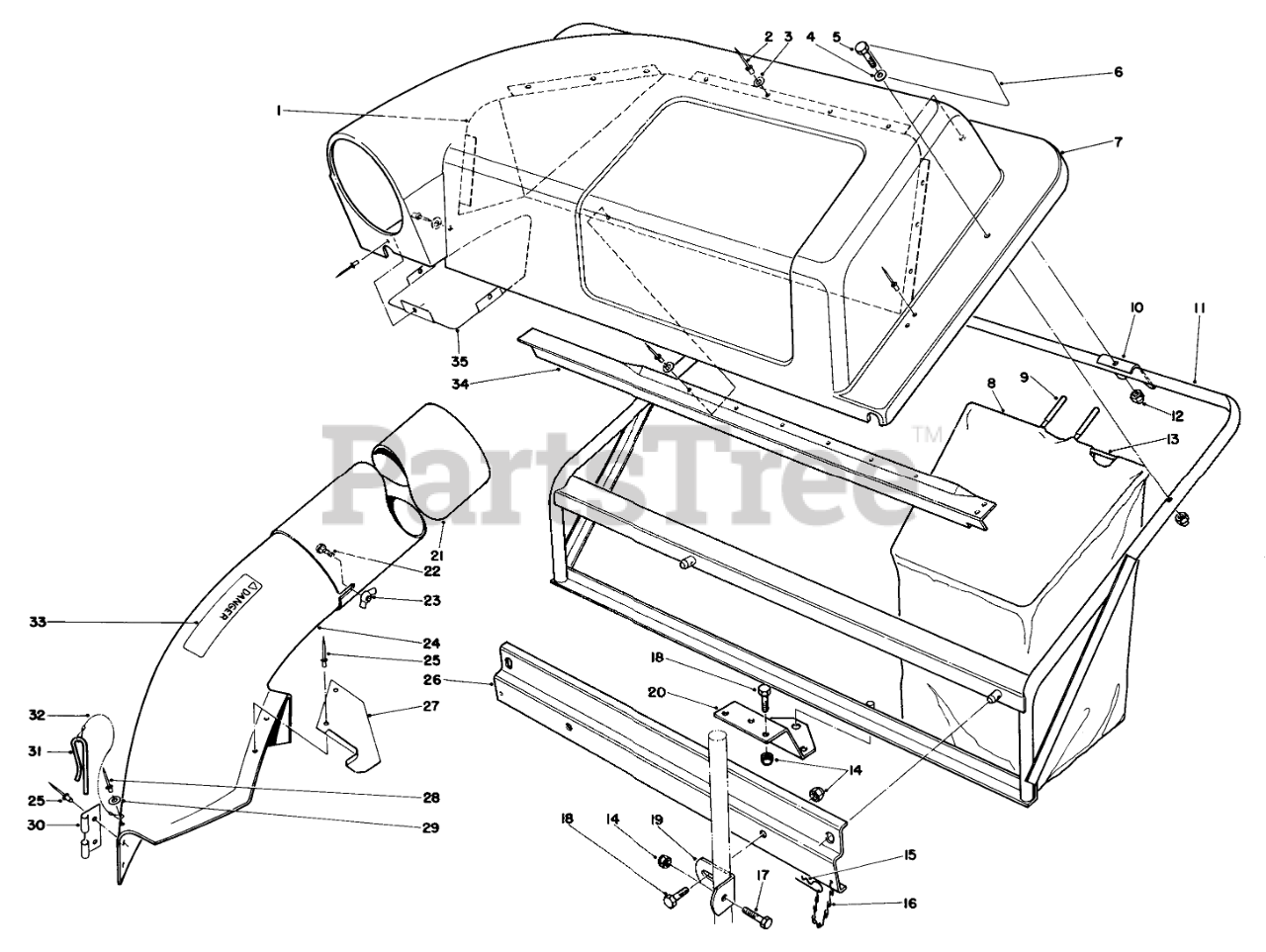

TWIN BAGGER GRASS CATCHER MODEL NO. 59122 (OPTIONAL) Parts Diagram

  • Title

1

Toro 36-4230

Screen Cover

$

$

Not available

2

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

6

Toro 47-6890

TWIN BAGGER DECAL

$

$

Not available

7

Toro 47-2190

Cover

$

$

Not available

8

Toro 47-2570

BAG

$109.99

$

In Stock, only 2 left!

0

9

Toro 47-2550

GRIP-HANDLE, BAG

$4.99

$

Usually ships in 3-6 days

0

10

Toro 47-2580

BAG FRAME BRKT

$

$

Not available

11

Toro 32111-8

NUT-LOCK, CAP

$4.49

$

Usually ships in 3-6 days

0

12

Toro 47-2630

Frame

$

$

Not available

13

Toro 47-2620

Frame-Bag
(Superseded to 47-2620-03)

$90.99

$

In Stock, only 4 left!

0

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

15

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

16

Toro 2830-9

6-LINK CHAIN W/HOOK

$

$

Not available

17

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 9

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 47-2020

Bracket Mtg. Grass Catcher
(Superseded to 56-7190)

Note: Note: Used For Mounting Twin Bagger Grass Catcher on Rear Engine Riders Only.

$

$

Not available

20

Toro 47-2030

Plate-Mtg. Grass Catcher
(Superseded to 51-2970)

Note: Note: Used For Mounting Twin Bagger Grass Catcher on Rear Engine Riders Only.

$

$

Not available

21

Toro 47-7210

TUBE(ROUND&LONG)

$

$

Not available

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 12

0

23

Toro 32103-14

NUT-WING SPECL

$16.99

$

In Stock, only 1 left!

0

24

Toro 28-8060

Chute Assembly (Incl. Ref. #25, 27-33)

$

$

Not available

25

Toro 3290-412

RIVET-BLIND

$3.99

$

In Stock, only 2 left!

0

26

Toro 36-4550

Bracket Frame Support

$

$

Not available

27

Toro 33-2090

CHUTE SUPT BRKT

$

$

Not available

28

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

29

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

30

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$26.99

$

Usually ships in 3-6 days

0

31

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

32

Toro 28-8070

LANYARD

$17.99

$

Usually ships in 3-6 days

0

33

Toro 26-7030

Decal-Chute
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

34

Toro 47-2650

SCREEN SUPT BRKT B

$

$

Not available

35

Toro 47-6760

Shield Cover

$

$

Not available

Toro 11-5459

Loose Parts

Note: Not illustrated

$

$

Not available

Toro 505-78

Adhesive-Plastic

Note: Not illustrated

$

$

Currently unavailable
