57360 (11-32) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1979) Hood Assembly Model 57360 Parts Diagram

Lawn Tractor

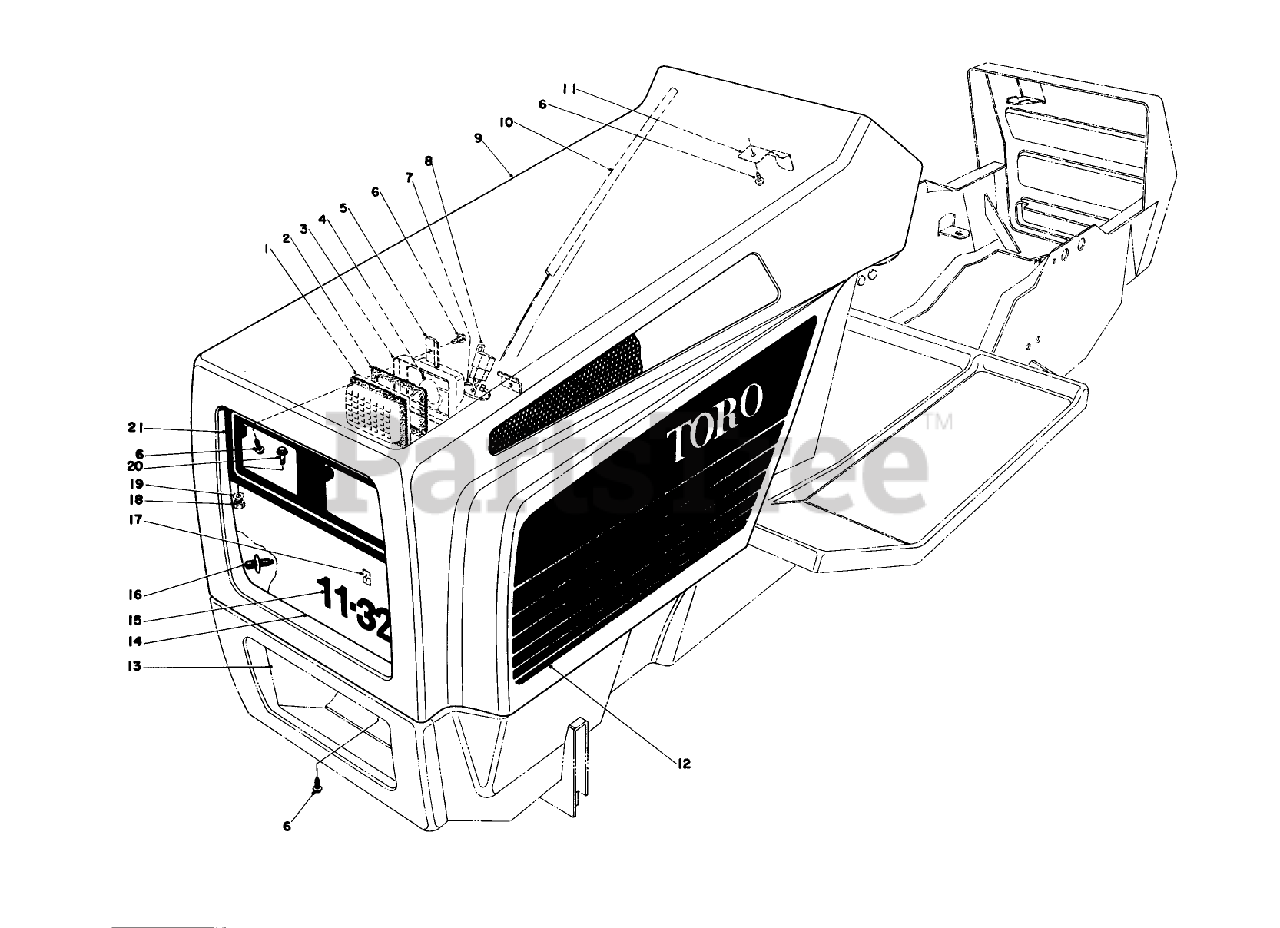

Hood Assembly Model 57360 Parts Diagram

  • Title

1

Toro 219-14

DISCONTINUED
(Superseded to 8-3579)

$

$

Not available

2

Toro 219-13

DISCONTINUED
(Superseded to 8-3579)

$

$

Not available

3

Toro 38-2580

DISCONTINUED
(Superseded to 8-3579)

$

$

Not available

4

Bulb GE #1156

$

$

Not available

5

Toro 28-0050

DISCONTINUED

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

8

Toro 218493

Connector

$

$

Currently unavailable

9

Toro 8-3209

Hood Assy. (Incl. Ref. #5)

$

$

Currently unavailable

10

Toro 28-3810

DISCONTINUED

$

$

Not available

11

Toro 27-9130

SPRING LATCH

$

$

Not available

12

Toro 284230

Decal Hood LH.

$

$

Currently unavailable

Toro 284240

Decal Hood R.H.

Note: Not illustrated

$

$

Currently unavailable

13

Toro 28-0010

LOWER GRILLE

$86.99

$

Usually ships in 3-6 days

0

14

Toro 36-2090

DISCONTINUED

$

$

Not available

15

Toro 36-2510

DISCONTINUED

$

$

Not available

16

Toro 27-9120

DISCONTINUED

$

$

Not available

17

Toro 3290-299

DISCONTINUED

$

$

Not available

18

Toro 32153-1

NUT-LOCK, SIDE

$4.49

$

In Stock, only 1 left!

0

19

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 28-0040

DISCONTINUED

$

$

Not available

Toro 8-3579

DISCONTINUED

Note: Not illustrated

$

$

Not available
