57360 (11-32) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1979) STEERING WHEEL & DASH ASSEMBLY Parts Diagram

Lawn Tractor

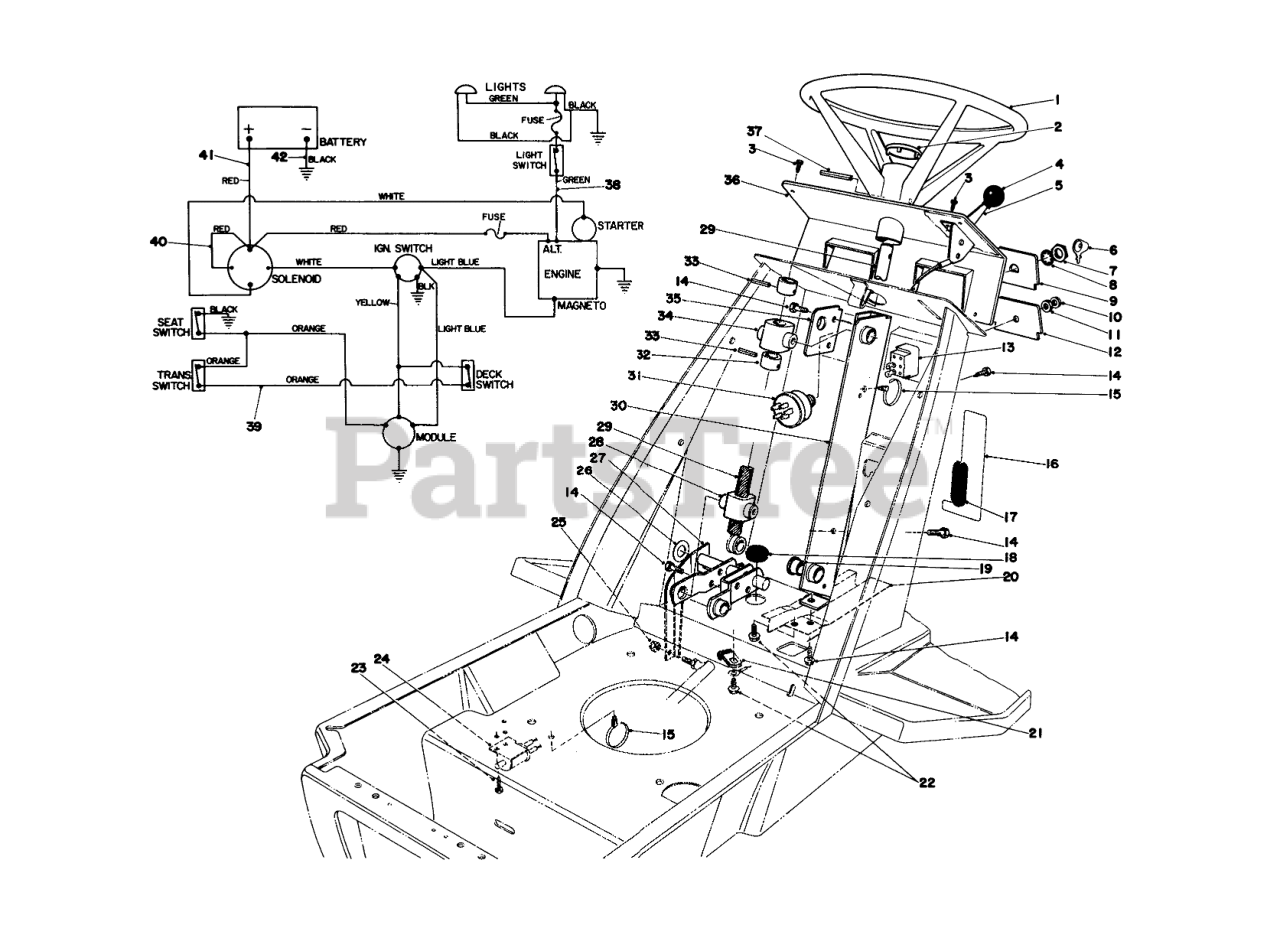

STEERING WHEEL & DASH ASSEMBLY Parts Diagram

  • Title

1

Toro 38-0830

Steering Wheel
(Superseded to 49-3240)

$176.99

$

Usually ships in 3-6 days

0

2

Toro 38-1010

STEERING WHEEL INSERT

$

$

Not available

Toro 38-1000

STEERING WHEEL INSERT

Note: Not illustrated

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

5

Toro 38-0990

Throttle Control (Incl. Ref. #4)

$124.99

$

Usually ships in 3-6 days

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

8

Toro 32545

Lockwasher

$

$

Currently unavailable

9

Toro 28-2690

DASH PANEL INSERT

$

$

Not available

10

Toro 218-497

NUT-BULB

$

$

Not available

11

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 2 left!

0

12

Toro 28-2510

DASH PANEL INSERT

$

$

Not available

Toro 28-2500

DASH PANEL INSERT

Note: Not illustrated

$

$

Not available

13

Toro 28-4110

LIGHT SWITCH

$46.99

$

Usually ships in 3-6 days

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

15

Toro 3290

216 Washer

$

$

Currently unavailable

16

Toro 36-2230

Decal-Deck

$

$

Not available

17

Toro 29-4780

EDGE MOULDING

$

$

Not available

18

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

19

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

20

Toro 36-1570

WIRE HARNESS SHLD B

$

$

Not available

21

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

22

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

23

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

24

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

25

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

26

Toro 11-6240

WASHER

$

$

Not available

27

Toro 36-3470

STEERING LINK WA BO

$

$

Not available

28

Toro 37-0140

FOLLOWER STEER SHAFT

$

$

Not available

29

Toro 38-5310

STEERING SHAFT

$

$

Not available

30

Toro 36-2040

STRG BRKT B

$

$

Not available

31

Toro 23-0660

SWITCH-STARTER

$22.99

$

Usually ships in 3-6 days

0

32

Toro 28-3940

STRG SHAFT COLLAR

$60.99

$

Usually ships in 3-6 days

0

33

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

34

Toro 37-0150

BRG STEERING SHAFT

$

$

Not available

35

Toro 28-0390

STRG BRG SUPPORT

$

$

Not available

36

Toro 28-2460

DASH PANEL

$

$

Not available

37

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

38

Toro 38-1030

WIRE HARNESS

$

$

Not available

39

Toro 38-0880

Wire Harness

$

$

Not available

40

Toro 28-7880

SOLENOID WIRE

$

$

Not available

41

Toro 28-3890

WIRE ASM

$

$

Not available

42

Toro 28-3860

WIRE ASM

$36.99

$

Usually ships in 3-6 days

0
