57375 - Toro Lawn Tractor, 8hp (SN: 000000001 - 000999999) (1980) Engine Briggs Stratton Model 191702-5652-01 Parts Diagram

Lawn Tractor, 8hp

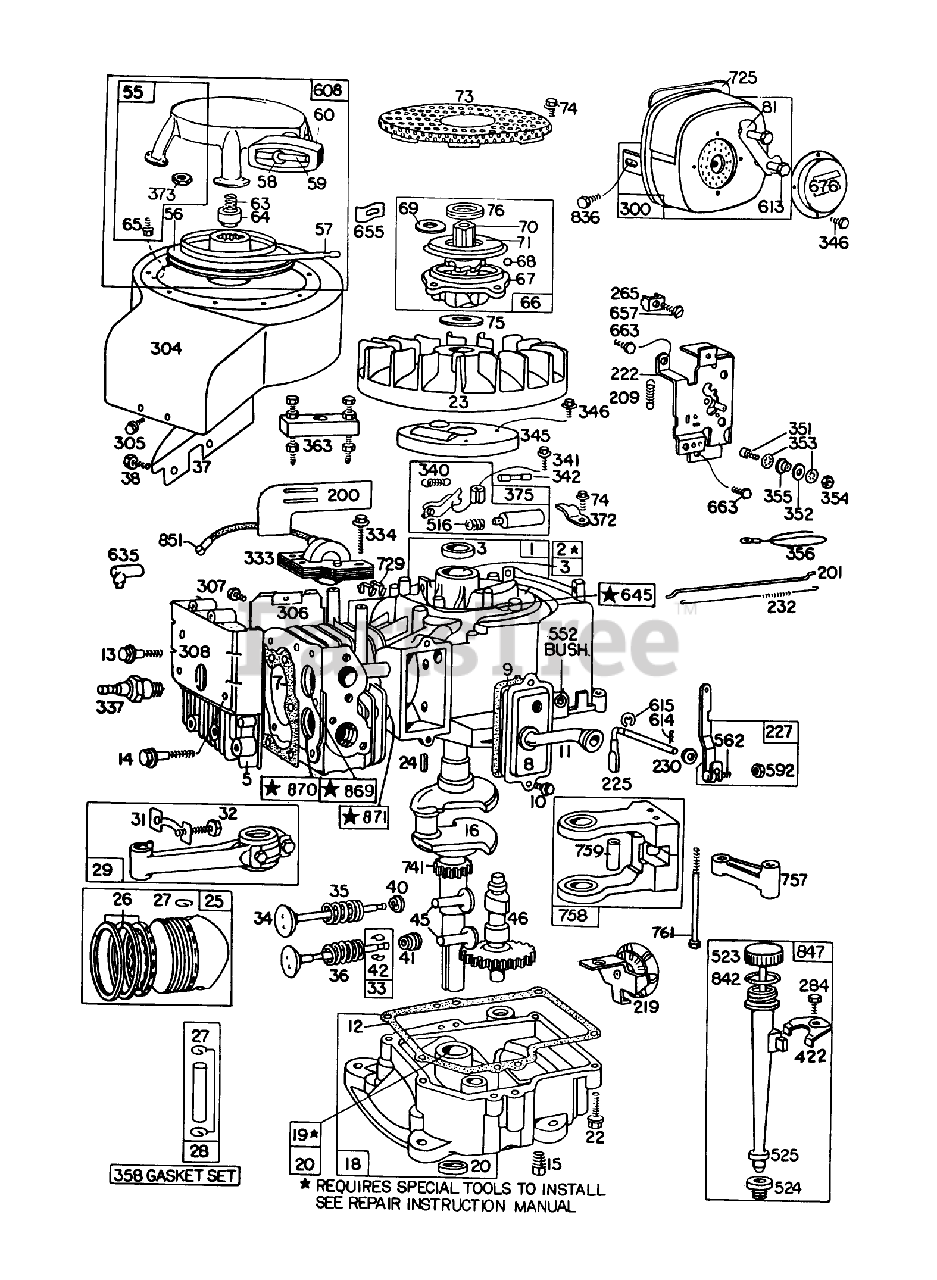

Engine Briggs Stratton Model 191702-5652-01 Parts Diagram

  • Title

1

Toro 393675

Cylinder Assembly

$

$

Currently unavailable

2

Toro 391726

Bushing Cylinder Note: Requires Special Tools for Installation

$

$

Currently unavailable

3

Toro 294606

Seal-Oil

$

$

Currently unavailable

5

Toro 212286

Head-Cylinder

$

$

Currently unavailable

7

*270430 Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

8

Toro 391406

Assembly-Breather

$

$

Currently unavailable

9

*27803 Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

10

Toro 93536

Screw

$

$

Currently unavailable

11

Toro 280005

Grommet

$

$

Currently unavailable

12

Toro 27750

Gasket-Crankcase Cover 1/64" Thick

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

Toro 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

Toro 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set-Part No. 299577.

$3.23

$

Usually ships in 3-6 days

0

13

Toro 93211

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93723

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 390370

Crankshaft

$

$

Currently unavailable

18

Toro 298616

Sump-Oil

$

$

Currently unavailable

19

Toro 295963

Bushing

$

$

Currently unavailable

20

Toro 298423

Seal-OiI

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

23

Toro 298260

Flywheel

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 391673

Piston Assy.-Std.

$

$

Currently unavailable

Toro 391674

Piston Assy.-.010" OS.

$

$

Currently unavailable

Toro 391675

Piston Assy.-.020" OS.

$

$

Currently unavailable

Toro 391676

Piston Assembly

$

$

Currently unavailable

26

Toro 391669

Ring Piston-Std.

$

$

Currently unavailable

Toro 391670

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 391671

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 391672

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 68546

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 295840

Assembly-Piston-Std

$

$

Currently unavailable

Toro 295841

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Toro 390402

Rod-Connecting

$

$

Currently unavailable

31

Toro 222114

Lock-Conn. Rod Screw

$

$

Currently unavailable

32

Toro 92659

Screw Conn. Rod

$

$

Currently unavailable

33

Toro 390419

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261055

VaIve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

37

Toro 222475

Guard-Flywheel

$

$

Not available

38

Toro 93777

Screw

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 260933

Tappet-Valve

$

$

Currently unavailable

46

Toro 211689

Gear-Cam

$

$

Currently unavailable

55

Toro 393576

Housing-Rewind

$

$

Currently unavailable

56

Toro 295871

Pulley-Rewind

$

$

Currently unavailable

57

Toro 294303

Spring-Rewind

$

$

Currently unavailable

58

Toro 66884

Rope-Rewind

$

$

Currently unavailable

59

Toro 230228

Pin-Starter Grip

$

$

Currently unavailable

60

Toro 66728

See Supercession: 742562
(Superseded to 742562)

$

$

Not available

63

Toro 260414

Spring

$

$

Currently unavailable

64

Toro 230543

Adapter

$

$

Currently unavailable

65

Toro 93067

Screw

$

$

Currently unavailable

66

Toro 298798

Clutch Assy.-Rewind Starter

$

$

Currently unavailable

67

Toro 212132

Housing-Rewind Starter Clutch

$

$

Currently unavailable

68

Toro 63770

Ball

$

$

Currently unavailable

69

Toro 66718

Washer-Thrust

$

$

Currently unavailable

70

Toro 298799

Ratchet

$

$

Currently unavailable

71

Toro 221653

Washer

$

$

Currently unavailable

73

Toro 221796

Screen

$

$

Currently unavailable

74

Toro 93042

Screw

$

$

Currently unavailable

75

Toro 220865

Washer

$

$

Currently unavailable

76

Toro 68238

Washer

$

$

Currently unavailable

81

Toro 222263

Lockplate

$

$

Currently unavailable

200

Toro 221760

Guide-Air

$

$

Not available

201

Toro 260971

Link-Govemor

$

$

Currently unavailable

209

Toro 261306

Spring-Gov.

$

$

Currently unavailable

219

Toro 392718

Oil Slinger, Gov. Gear Bracket Assembly

$

$

Currently unavailable

222

Toro 390662

Plate-Gov. Control

$

$

Currently unavailable

225

Toro 231058

Crank-Governor

$

$

Currently unavailable

227

Toro 391733

Lever Assy.-Governor

$

$

Currently unavailable

230

Toro 222450

DISCONTINUE-DESA

$

$

Not available

232

Toro 260584

Spring-Governor Link

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

284

Toro 93804

Screw

$

$

Currently unavailable

300

Toro 391313

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 391395

Housing-Blower

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

306

Toro 222830

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93163

Screw

$

$

Currently unavailable

308

Toro 222636

Cover-Cylinder Head

$

$

Not available

333

Toro 298968

Armature Assembly

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

345

Toro 222117

Cover-Breaker Point

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

351

Toro 93735

Screw-Terminal

$

$

Currently unavailable

352

Toro 66068

Washer-Insulating

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

355

Toro 66554

Collar-Insulating

$

$

Currently unavailable

356

Toro 299500

Wire-Ground

$

$

Currently unavailable

358

Toro 299577

Gasket Set

$

$

Currently unavailable

363

Toro 19165

Flywheel Puller

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

373

Toro 92987

Nut

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

Toro 294628

Set

$

$

Currently unavailable

Toro 65704

Plunger

$

$

Currently unavailable

Toro 61760

Key Flywheel

$

$

Currently unavailable

422

Toro 222502

Clamp-Oil Filler Tube

$

$

Currently unavailable

516

Toro 260374

Spring Connector

$

$

Currently unavailable

523

Toro 391840

Cap with Dipstick

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

$

$

Currently unavailable

525

Toro 280133

Tube-Oil Fill

$

$

Currently unavailable

552

Toro 231055

Bushing-Gov. Crank
(Superseded to 743457)

$

$

Not available

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

608

Toro 390391

Rewind Starter

$

$

Currently unavailable

613

Toro 93704

Capscrew

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

645

Toro 23513

Bushing-Plunger

$

$

Currently unavailable

655

Toro 222598

Anchor Spring

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

663

Toro 93572

Screw

$

$

Currently unavailable

676

Toro 222312

Deflector-Exhaust (Louvered)

$

$

Currently unavailable

725

Toro 221885

Heat Shield

$

$

Currently unavailable

729

Toro 221907

CIip-Wire

$

$

Currently unavailable

741

Toro 261195

Gear-Timing

$

$

Currently unavailable

757

Toro 211675

Link-Counterweight

$

$

Currently unavailable

758

Toro 390172

Counterweight

$

$

Currently unavailable

759

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

761

Toro 93874

Screw-Counterweight

$

$

Currently unavailable

836

Toro 93559

Screw

$

$

Currently unavailable

842

Toro 270920

O-Ring

$

$

Currently unavailable

847

Toro 392066

Fill Group-Oil

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 211661

Seat-Ex. Valve

$

$

Currently unavailable

870

Toro 211661

Seat-Ex. Valve

$

$

Currently unavailable

871

Toro 230655

Guide-Valve

$

$

Currently unavailable
