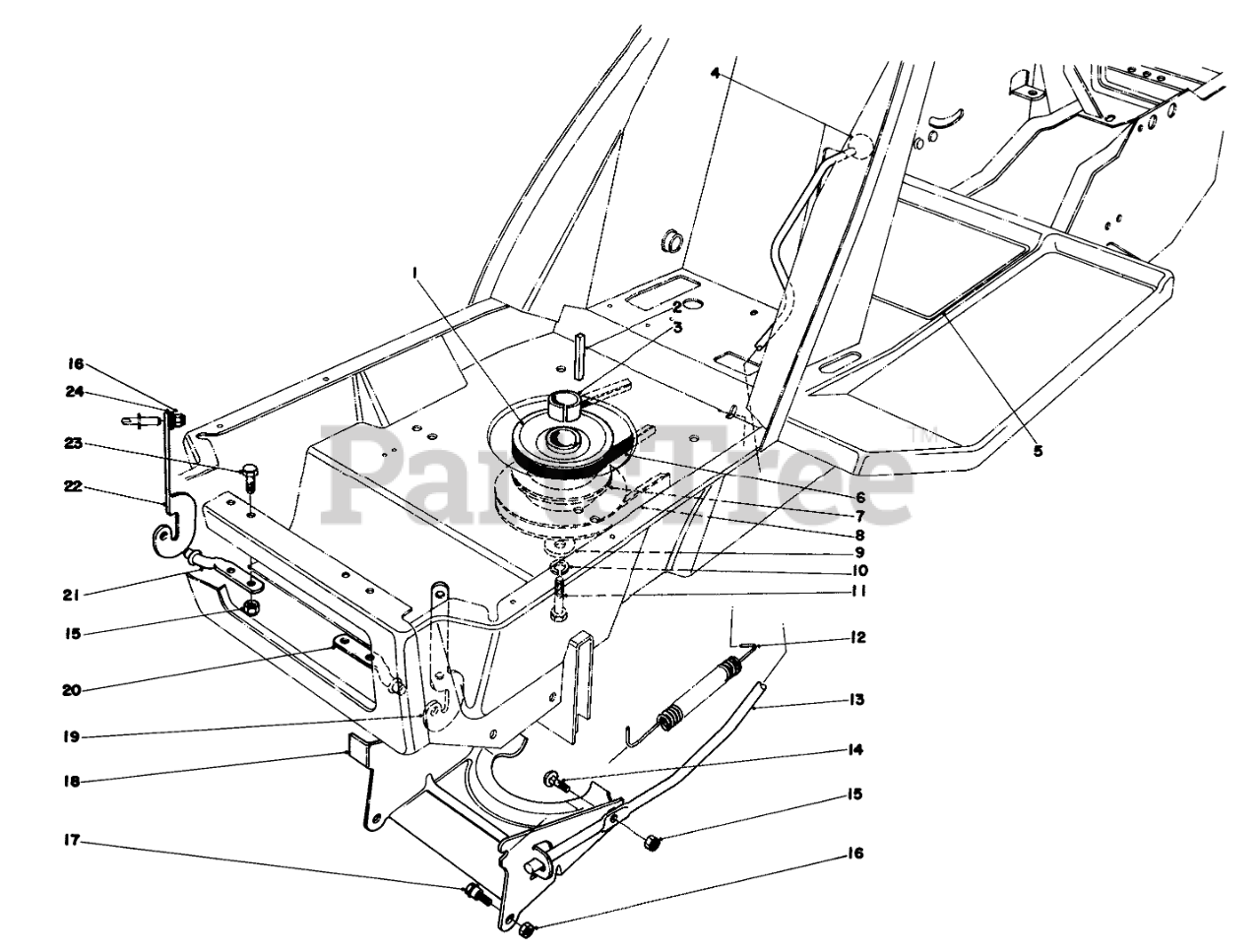

57375 - Toro Lawn Tractor, 8hp (SN: 009000001 - 009999999) (1979) CLUTCH & ACTUATOR ASSEMBLY Parts Diagram

Lawn Tractor, 8hp

CLUTCH & ACTUATOR ASSEMBLY Parts Diagram

  • Title

1

Toro 36-4810

TOP SHEAVE

$

$

Not available

2

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 6

0

3

Toro 27-8910

PULLEY SPACER

$

$

Not available

4

Toro 233-42

KNOB

$13.99

$

In Stock, only 3 left!

0

5

Toro 36-1540

Decal Instruction

$

$

Not available

6

Toro 28-2650

V BELT

$64.99

$

In Stock, only 1 left!

0

7

Toro 38-7450

Clutch & Brake Deck
(Superseded to 8-7849)

$

$

Not available

8

Toro 28-5250

V BELT

$26.99

$

Usually ships in 3-6 days

0

9

Toro 27-8920

WASHER

$4.99

$

Usually ships in 3-6 days

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 4 left!

0

11

Toro 3212-21

SCREW-HH
(Superseded to 3212-8)

$6.49

$

In Stock, Qty 5

0

12

Toro 27-8960

TRACTION SPRING

$

$

Not available

13

Toro 28-2320

Engagement Lever

$

$

Not available

14

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

17

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

18

Toro 38-2800

CLUTCH ACTUATOR R

$

$

Not available

19

Toro 28-0120

L.H. HINGE BRACKET

$70.99

$

Usually ships in 3-6 days

0

20

Toro 28-0110

LH HOOD HINGE PIN

$

$

Not available

21

Toro 28-0100

RH HOOD HINGE PIN

$

$

Not available

22

Toro 28-0130

RH HINGE BRKT

$70.99

$

Usually ships in 3-6 days

0

23

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 37-0170

SCREEN SUPT BRKT

$

$

Not available
