574 (574123) - Cub Cadet Walk-Behind Mower (1983) L.H/R.H. Wheel Bracket And Front/Rear Wheel Assemblies Parts Diagram

Walk-Behind Mower

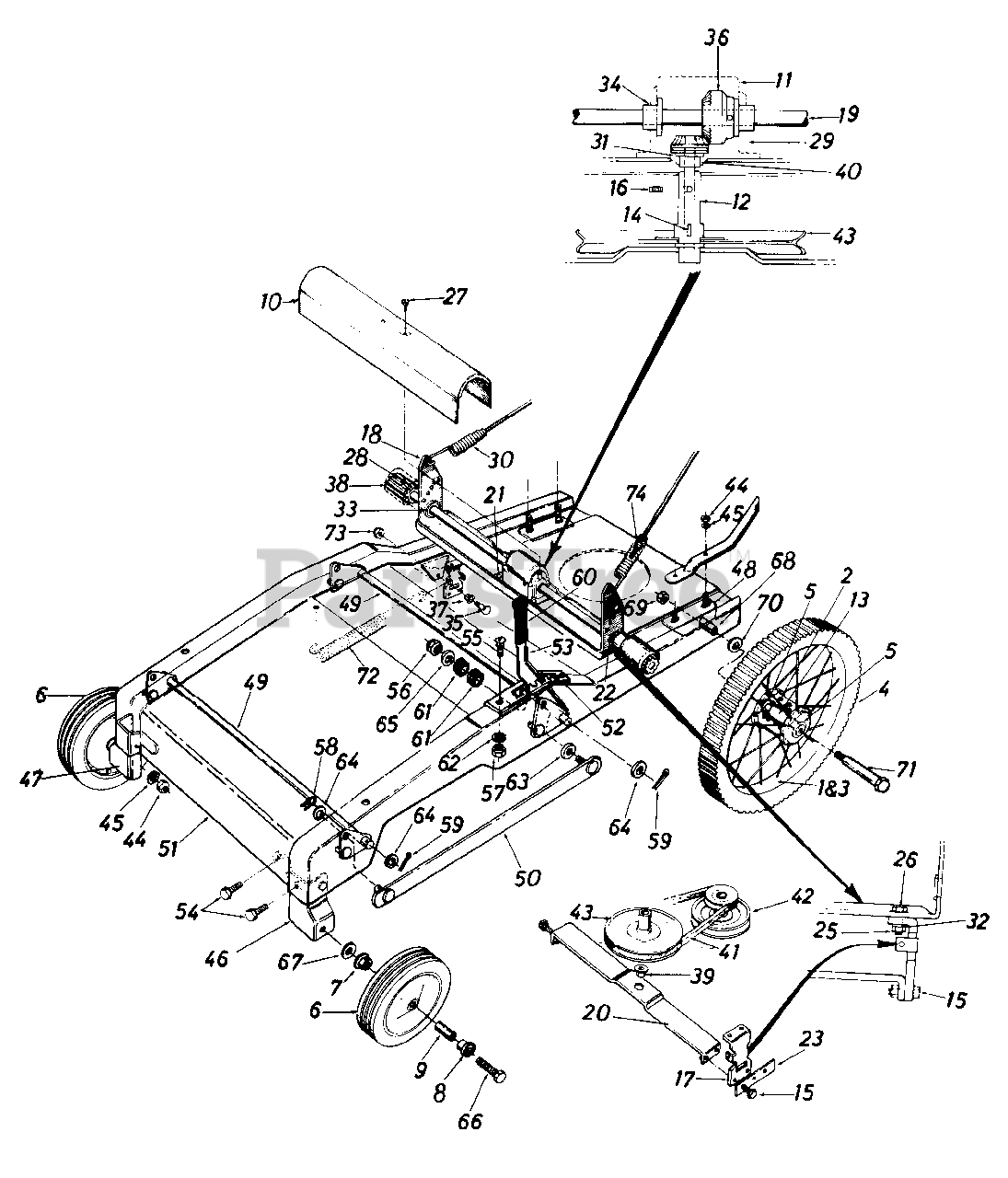

L.H/R.H. Wheel Bracket And Front/Rear Wheel Assemblies Parts Diagram

  • Title

1

Cub Cadet 734-0424

16" Wheel Ass'y. Comp. - Rear

$

$

Currently unavailable

2

Cub Cadet 718-0132

Oil Cap

$

$

Not available

3

Cub Cadet 734-0180

Rear Wheel - Rim Only

$

$

Currently unavailable

4

Cub Cadet 734-0391

Rear Wheel - Tire Only 16 x 1.75

$

$

Not available

5

Cub Cadet 741-0138

Ball Brg. .630" I.D.

$

$

Not available

6

Cub Cadet 734-0642

Wheel Ass'y. Comp. - Front - 8 x 1.75

$

$

Not available

7

Cub Cadet 741-0267

Flanged Ball Brg. 3/8" I.D.

$

$

Not available

8

Cub Cadet 741-0484

Flanged Ball Brg. 1/2" I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 750-0434

Spacer 3/8" I.D.

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 08100

Top Drive Frame Cover

$

$

Not available

11

Cub Cadet 08187

Gear Box Cover

$

$

Currently unavailable

12

Cub Cadet 10254

Pinion Ass'y.

$

$

Not available

13

Cub Cadet 711-0426

Wheel Spacer

$

$

Currently unavailable

14

Cub Cadet 714-0229

#2 Woodruff Key 3/32 x 1/2" Dia. Hdn.

$

$

Not available

15

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

16

Cub Cadet 710-0421

Set Scr. 5/16-18 x .25" Cup

$

$

Not available

17

Cub Cadet 10320

Bottom Drive Frame

$

$

Currently unavailable

18

Cub Cadet 15493

Top Drive Frame Ass'y.

Note: Code N

$

$

Currently unavailable

19

Cub Cadet 10322

Drive Shaft

$

$

Not available

20

Cub Cadet 10328

Bottom Drive Frame Ass'y.

$

$

Not available

21

Cub Cadet 710-0776

Hex Self-Tap Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 711-0169

Collar 5/8" I.D.

$

$

Not available

23

Cub Cadet 10883

Drive Frame Stop

$

$

Currently unavailable

25

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

27

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 715-0120

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.

$9.99

$

In Stock, only 4 left!

0

29

Cub Cadet 717-0108

Gear Box
(Superseded to 753-0218)

$

$

Not available

30

Cub Cadet 732-0305

Extension Spring

$

$

Not available

31

Cub Cadet 735-0193

"O"-Ring

$

$

Not available

32

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-0138

Ball Brg. .630" I.D.

$

$

Not available

34

Cub Cadet 748-0110

Flange Brg. .630" I.D.

$8.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 738-0141

Shld. Bolt .443 Dia. x .330
(Superseded to 938-0141)

$6.99

$

In Stock, Qty 8

0

36

Cub Cadet 748-0135

Bevel Gear .62" I.D. 28 Teeth

$

$

Not available

37

Cub Cadet 748-0180

Pivot Slide

$

$

Not available

38

Cub Cadet 748-0182

Drive Pinion

$

$

Not available

39

Cub Cadet 748-0226

Hex Flange Brg. .503" I.D.

$

$

Currently unavailable

40

Cub Cadet 748-0269

Flange Brg. .503" I.D. w/Groove
(Superseded to 948-0108)

$8.49

$

In Stock, Qty 11

0

41

Cub Cadet 754-0143

3V-Belt 28" Lg.

$

$

Not available

42

Cub Cadet 756-0154

Double Pulley

$

$

Not available

43

Cub Cadet 756-0155

3/8" V-Pulley .502" I.D. x 6.5" O.D.

$

$

Not available

44

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

46

Cub Cadet 10293

Wheel Brk't. Ass'y. - L.H.

$

$

Currently unavailable

47

Cub Cadet 10294

Wheel Brk't. Ass'y. - R.H.

$

$

Currently unavailable

48

Cub Cadet 10297

Rear Wheel Brk't. Ass'y.

$

$

Currently unavailable

49

Cub Cadet 15329

Lift Bracket Shaft Ass'y.

$

$

Currently unavailable

50

Cub Cadet 15331

Connecting Link Ass'y.

$

$

Not available

51

Cub Cadet 15340

Frame

Note: Color Code - 499

$

$

Currently unavailable

52

Cub Cadet 15341

Lift Handle Support Brk't.

$

$

Currently unavailable

53

Cub Cadet 15342

Lift Handle

$

$

Not available

54

Cub Cadet 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

55

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

57

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 714-0104

Intern. Cot. Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 714-0115

Cot. Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

60

Cub Cadet 720-0142

Grip - Black

$3.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 735-0126

Rubber Wash. .33" I.D. x .87" O.D.
(Superseded to 735-0126A)

$

$

Not available

62

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0235

Fl-Wash. .406" I.D. x 1.25" O.D. x .164
(Superseded to 736-0247)

$8.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0272

Fl-Wash. .510" I.D. x 1.0" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 711-0425

Spacer .523" I.D. x .640" O.D. x 1.955

$

$

Currently unavailable

69

Cub Cadet 712-0181

Hex Top L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0

70

Cub Cadet 736-0192

Fl-Wash. .531" I.D. x .93" O.D.

$3.99

$

In Stock, only 2 left!

0

71

Cub Cadet 738-0114

Shld. Bolt .498" Dia. x 4.755

$

$

Not available

72

Cub Cadet 732-0206

Extension Spring .56" O.D. x 8.25" Lg.

$

$

Not available

73

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0
