574 (574125) - Cub Cadet Walk-Behind Mower (1985) Parts For Rotary Mower Part 3 Parts Diagram

Walk-Behind Mower

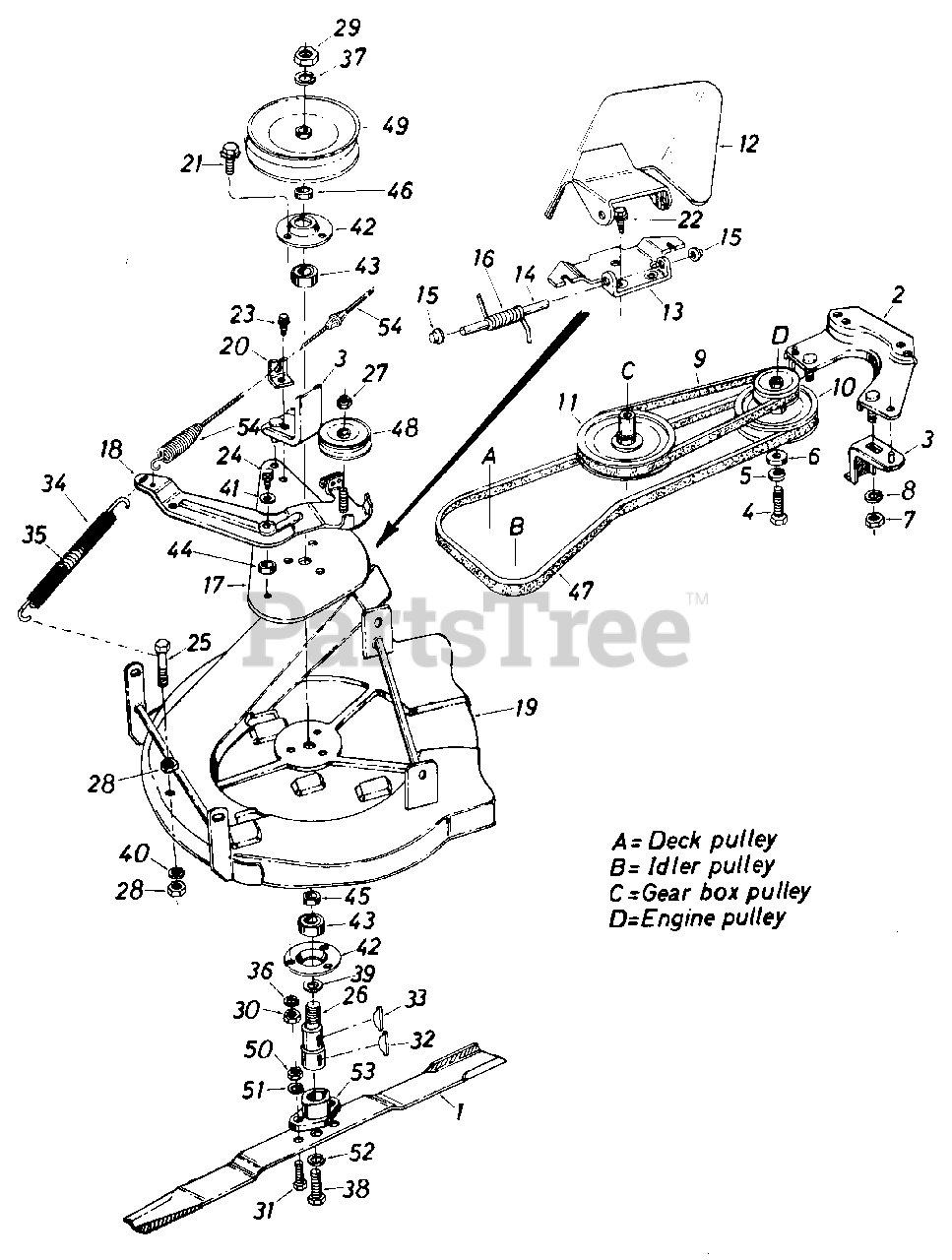

Parts For Rotary Mower Part 3 Parts Diagram

  • Title

1

Cub Cadet 742-0147

BLADE-26IN
(Superseded to 942-0147)

$

$

Not available

2

Cub Cadet 10423

GUARD ASSY-BELT-CUP

$

$

Not available

3

Cub Cadet 10426

GUARD ASSY-BELT

$

$

Not available

4

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

5

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0235

WASHER-FL-.406ID 1.25OD X.157/.172
(Superseded to 736-0247)

$8.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 754-0143

BELT-3V-28

$

$

Not available

10

Cub Cadet 756-0154

PULLEY-ENGINE-TWO STEP

$

$

Not available

11

Cub Cadet 756-0155

PULLEY

$

$

Not available

12

Cub Cadet 11634

COVER-CHUTE-COMP

Note: Color Code 499

$

$

Not available

13

Cub Cadet 11396

ADAPTER

$

$

Not available

14

Cub Cadet 711-0571

PIN-HINGE

$

$

Not available

15

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-0261

SPRING-TORSION

$

$

Not available

17

Cub Cadet 12453

PLATE-BELT GUARD

$

$

Currently unavailable

18

Cub Cadet 12469

BRACKET ASSY-DECK

$

$

Not available

19

Cub Cadet 15325

DECK ASSEMBLY-26 IN

$

$

Currently unavailable

20

Cub Cadet 15343

BRACKET-CABLE SUP

$

$

Currently unavailable

21

Cub Cadet 710-0322

SCREW-HEX SEMS 5/16-18 X 1.00

$

$

Not available

22

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0643

SCREW-HEX 5/16-18 X 10 SPEC

$6.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0698

SCREW-HEX

$

$

Not available

26

Cub Cadet 711-0405

SPINDLE-BLADE

$

$

Not available

27

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

28

Cub Cadet 712-0117

NUT-HEX CENTER L-1/4-28
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

27

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

28

Cub Cadet 712-0117

NUT-HEX CENTER L-1/4-28
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

29

Cub Cadet 712-0242

NUT-HEX CENTER L-5/8-11
(Superseded to 912-0261)

$

$

Not available

30

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

Note: (Grade 8)

$3.99

$

In Stock, Qty 11

0

32

Cub Cadet 714-0365

KEY-HI-PRO #6-5/32 X 5/8 DIA

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 714-0388

KEY-3/16 X 5/8
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

34

Cub Cadet 731-0675

TUBE

$

$

Currently unavailable

35

Cub Cadet 732-0448

SPRING-EXTENSION

$

$

Not available

36

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0158

WASHER-LOCK-5/8

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

39

Cub Cadet 13703

SHIELD-BRG

$

$

Not available

40

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

41

Cub Cadet 736-0343

WASHER-5/16 X 1.25 X 1.27

$4.49

$

In Stock, Qty 19

0

42

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

43

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

44

Cub Cadet 750-0258

SPACER

$10.99

$

In Stock, Qty 12

0

45

Cub Cadet 750-0142

SPACER
(Superseded to 950-0142)

$

$

Not available

46

Cub Cadet 748-0168

SPACER

$

$

Currently unavailable

47

Cub Cadet 754-0267

BELT-V 1/2 X 59
(Superseded to 954-0267)

$55.99

$

In Stock, Qty 7

0

48

Cub Cadet 756-0116

PULLEY-V-BELT IDLER
(Superseded to 756-04209)

$20.99

$

In Stock, Qty 20+

0

49

Cub Cadet 756-0143

PULLEY-TRANS SPLIT .63 ID

$

$

Not available

50

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

51

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0217

WASHER-HDL 3/8

$3.99

$

In Stock, Qty 13

0

53

Cub Cadet 10769

KIT-BLADE ADAPTER

$

$

Not available

54

Cub Cadet 746-0488

CABLE-CLUTCH 56.0

$

$

Not available
