57450 (12-32) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) 32" CUTTING DECK MODEL NO. 59130 Parts Diagram

Lawn Tractor

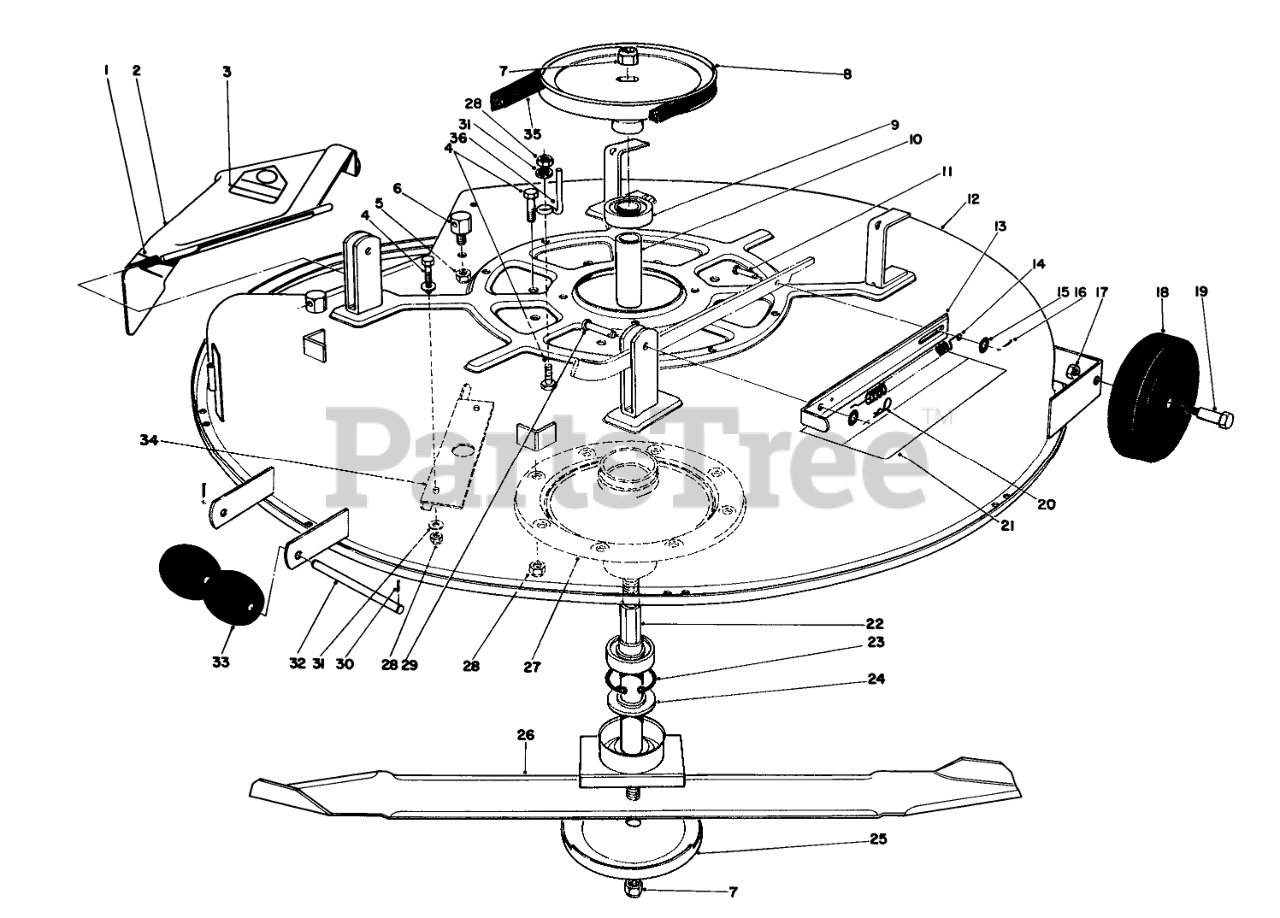

32" CUTTING DECK MODEL NO. 59130 Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$27.99

$

Usually ships in 3-6 days

0

2

Toro 44-5930

Deflector Assembly (Incl. Ref. #3)

$209.99

$

Usually ships in 3-6 days

0

3

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 19

0

6

Toro 28-7350

POST-PIVOT

$41.99

$

Usually ships in 3-6 days

0

7

Toro 17-0980

Nut

$12.99

$

In Stock, only 2 left!

0

8

Toro 28-8000

PULLEY(BLADE DRIVE)

$

$

Not available

9

Toro 251-297

BEARING-BALL

$21.99

$

In Stock, only 2 left!

0

10

Toro 47-0100

Spacer-Bearing
(Superseded to 83-7020)

$29.99

$

In Stock, only 2 left!

0

11

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

12

Toro 47-4910

Deck

$

$

Not available

13

Toro 39-5370

DECK SPRING STRAP R

$

$

Not available

14

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 61-9760

WHEEL-DECK

$53.99

$

In Stock, only 2 left!

0

19

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

20

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

21

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

22

Toro 47-0090

SPINDLE SHAFT WA

$293.99

$

In Stock, only 1 left!

0

23

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 12

0

24

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

25

Toro 7-3522

Cup
(Superseded to 92-6313)

$56.99

$

In Stock, only 2 left!

0

26

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$61.99

$

In Stock, only 2 left!

0

27

Toro 56-7030

SPINDLE

$

$

Not available

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 283-15

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

30

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 15

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 7-0277

ROLLER SHAFT

$

$

Not available

33

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

34

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$

$

Not available

35

Toro 28-5250

V BELT

$27.99

$

Usually ships in 3-6 days

0

36

Toro 47-0270

BELT GUIDE

$72.99

$

Usually ships in 3-6 days

0
