576 XP EPA - Husqvarna Chainsaw (SN: 20110100001 - 20172300000) CHAIN BRAKE Parts Diagram

Chainsaw

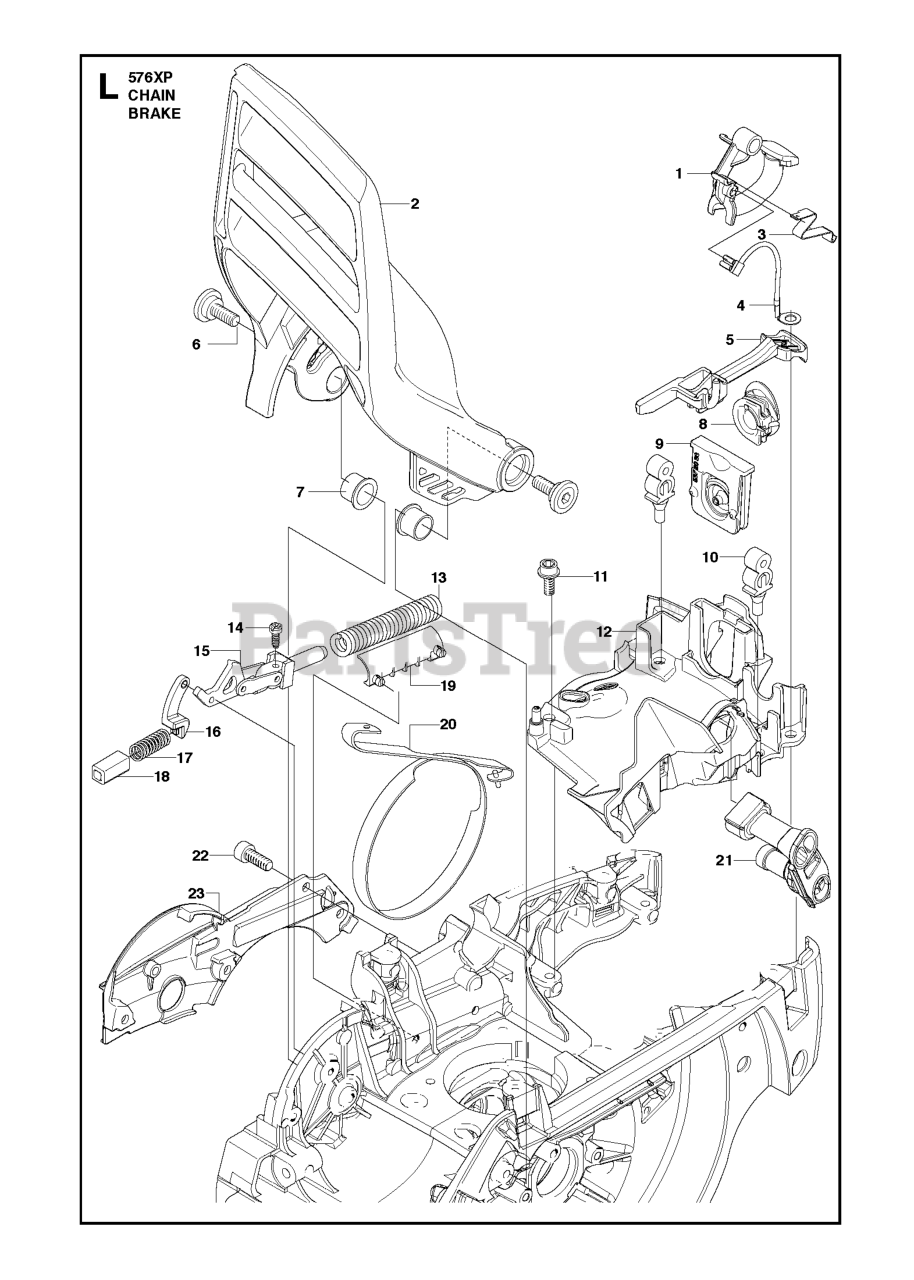

CHAIN BRAKE Parts Diagram

  • Title

8

Husqvarna 537205301

SEALING

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537205201

CHOKE CONTROL

$9.49

$

In Stock, only 1 left!

0

15

Husqvarna 501875304

KNEE JOINT

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 579233201

NEEDS DESCRIPTION

Note: s/n from 20123300020

$

$

Currently unavailable

13

Husqvarna 503709901

BRAKE SPRING
(Superseded to 503709902)

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 537202701

CHAIN BRAKE

$26.99

$

In Stock, only 2 left!

0

20

Husqvarna 503752202

BRAKE BAND

$13.99

$

In Stock, only 2 left!

0

11

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 503869702

SPRING

$3.49

$

In Stock, Qty 12

0

1

Husqvarna 537205101

CONTROL

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537203101

LEVER

$7.99

$

In Stock, only 2 left!

0

12

Husqvarna 537203501

BASE

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537208701

CABLE

$6.99

$

In Stock, Qty 5

0

10

Husqvarna 503869301

SUPPORT
(Superseded to 597909701)

$6.99

$

In Stock, only 2 left!

0

6

Husqvarna 537209001

SCREW

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 537203801

GROMMET

$

$

Not available

23

Husqvarna 537203201

LOCK

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 537203601

SLEEVE

Note: s/n up to 20123300019

$9.49

$

In Stock, only 1 left!

0

19

Husqvarna 503792702

SUPPORT

$5.99

$

In Stock, Qty 12

0

17

Husqvarna 503436501

LOCK SPRING

$3.49

$

In Stock, Qty 19

0

22

Husqvarna 503217072

SCREW

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 537202801

BUSHING

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 537210701

GUIDE

$3.49

$

Usually ships in 3-10 days

0
