580.325020 (6847-0) - Craftsman 3,500 Watt Portable Generator Mtg. Base & Handle (Manual Start) Parts Diagram

3,500 Watt Portable Generator

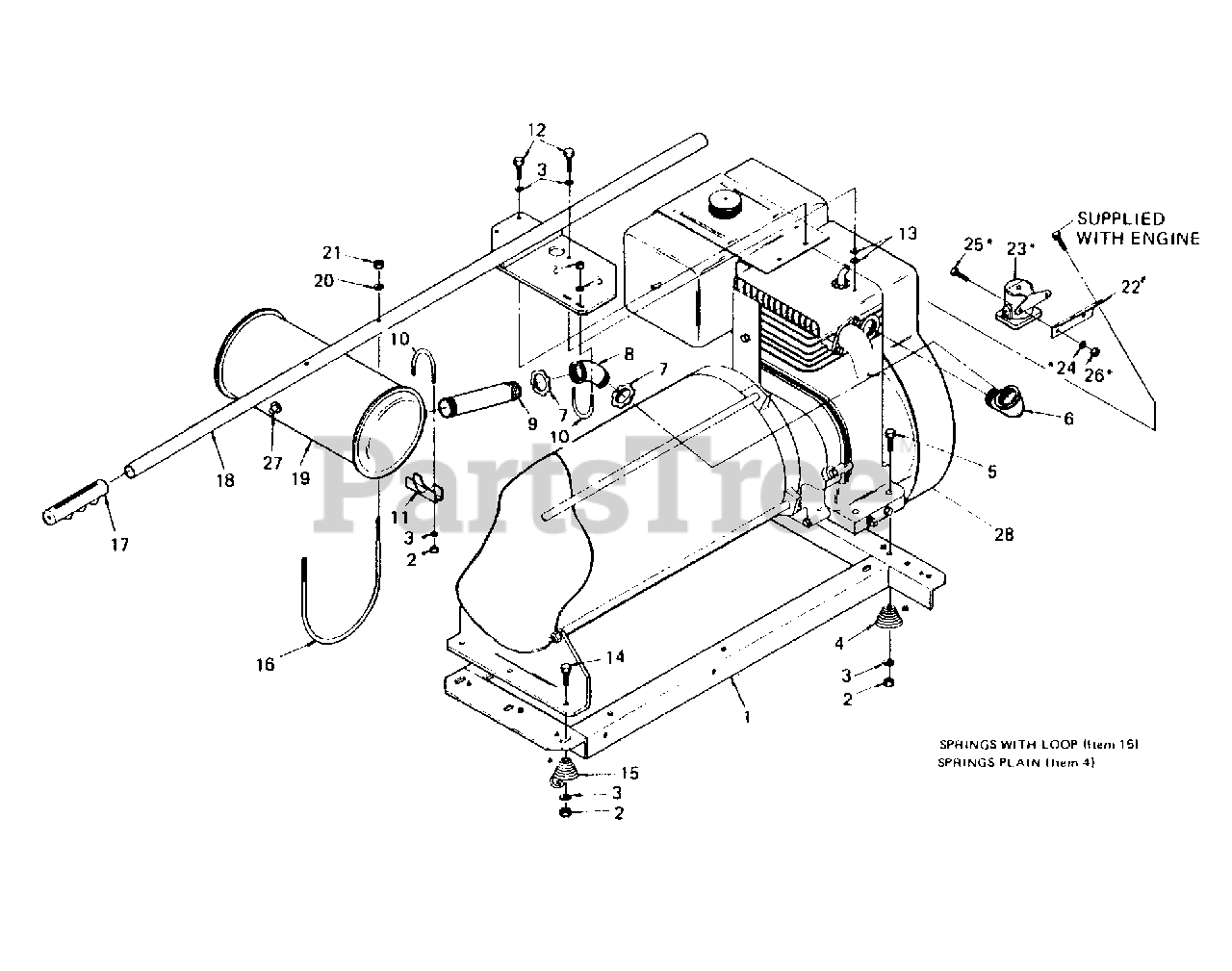

Mtg. Base & Handle (Manual Start) Parts Diagram

  • Title

1

Briggs & Stratton 45611

Mounting Base

$

$

Currently unavailable

2

Briggs & Stratton 22259

Hex. Nut, 5/16" - 18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

Lockwasher, 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 23594

Spring

$

$

Currently unavailable

5

Briggs & Stratton 22283

Capscrew, 5/16" - 18 x 1 1/2" Long
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 29381

Reducing Elbow, 90°.

$

$

Currently unavailable

7

Briggs & Stratton 26772

Pipe Lock Nut, 1"
(Superseded to 26772GS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 25472

Elbow 45° 1"

$

$

Currently unavailable

9

Briggs & Stratton 25435

Pipe Nipple 1" x 6" Long

$

$

Not available

10

Briggs & Stratton 28238

U-Bolt, 1-3/8"

$

$

Currently unavailable

11

Briggs & Stratton 28237

Saddle
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22125

Capscrew, 5/16 - 18 x 1" Long

$

$

Currently unavailable

13

Briggs & Stratton 22145

Flatwasher,5/16"

$

$

Not available

14

Briggs & Stratton 22142

Capscrew, 5/16 - 18 x 3/4" Long
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 25047

Spring, With Loops
(Superseded to 7025047YP)

$47.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 27110

U-Bolt, 4-5/8"
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23712

Handle Grip

$

$

Currently unavailable

18

Briggs & Stratton 37409

Carrying Handle

$

$

Currently unavailable

19

Briggs & Stratton 48039

Muffler

$

$

Currently unavailable

20

Briggs & Stratton 22237

Lockwasher, 3/8"

$

$

Not available

21

Briggs & Stratton 22241

Hex Nut, 3/8" - 16

$

$

Not available

22

Solenoid Mounting Bracket

Note: Not Used On Model 580.325020 (Manual Start)

$

$

Not available

23

Starter Solenoid

Note: Not Used On Model 580.325020 (Manual Start)

$

$

Not available

24

Lockwasher, 1/4"

Note: Not Used On Model 580.325020 (Manual Start)

$

$

Not available

25

Capscrew, 1/4" - 20 x 1/2" Long

Note: Not Used On Model 580.325020 (Manual Start)

$

$

Not available

26

Hex Nut, 1/4" - 20

Note: Not Used On Model 580.325020 (Manual Start)

$

$

Not available

27

Briggs & Stratton 26073

Pipe Plug, 1/8" NPT

$

$

Currently unavailable

28

Briggs & Stratton 48006

Engine - Craftsman 8 HP

$

$

Currently unavailable
