580.325600 (1796-0) - Craftsman 5,600 Watt Portable Generator Wheel Kit Parts Diagram

5,600 Watt Portable Generator

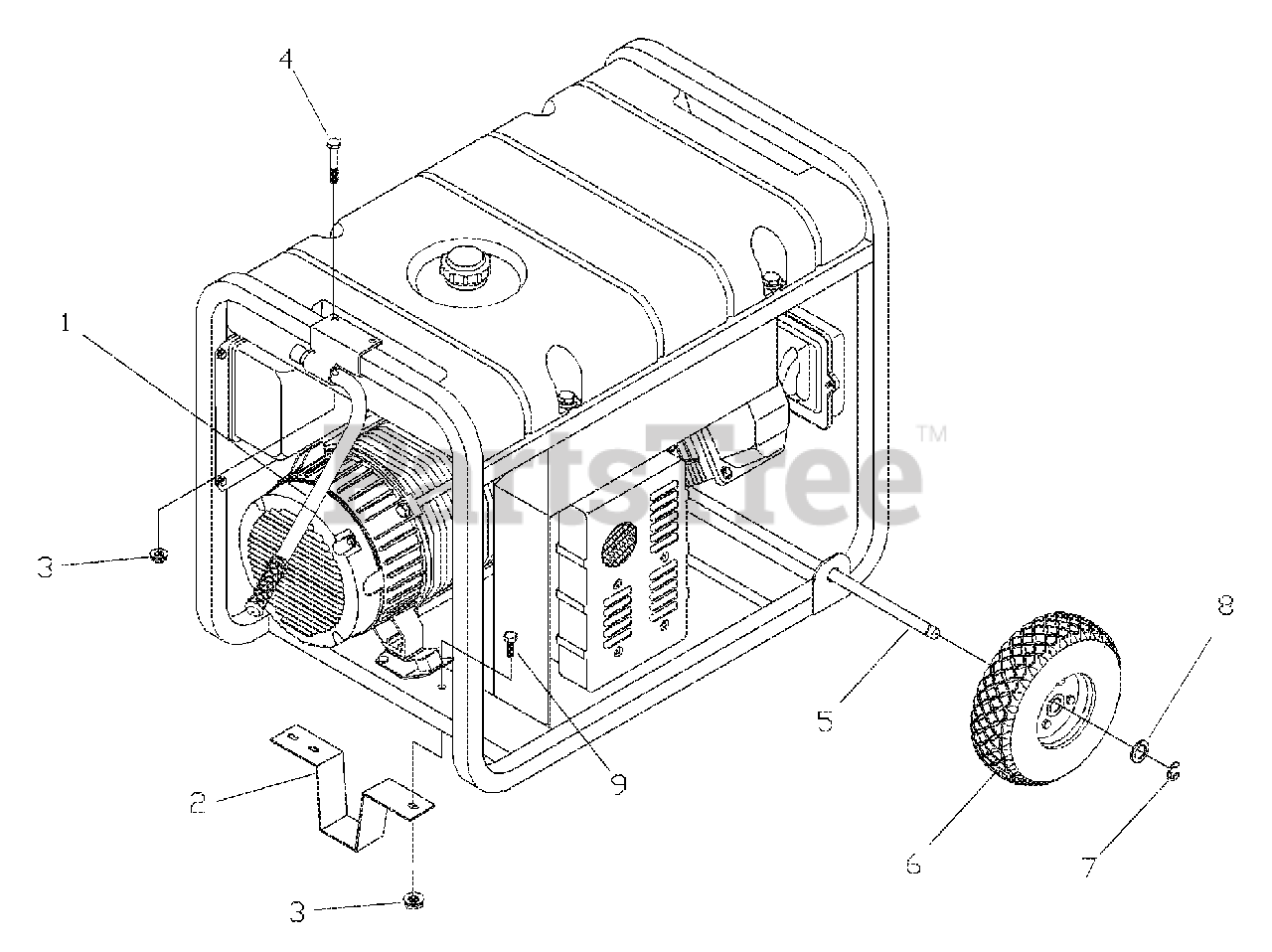

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 189715GS

ASSY, Handle

$54.99

$

In Stock, only 3 left!

0

2

Briggs & Stratton B1764GS

LEG, Mounting

$

$

Not available

3

Briggs & Stratton 52858GS

NUT, Locking Hex M8 - 1.25

$3.99

$

In Stock, only 3 left!

0

4

HHCS, M8 - 1.25 x 45

Note: (Purchase Locally)

$

$

Not available

5

Briggs & Stratton 191267HGS

AXLE, 5/8" x 22.87"

$

$

Not available

6

Briggs & Stratton B4966GS

WHEEL
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

8

WASHER, Flat 5/8

Note: (Purchase Locally)

$

$

Not available

9

HHCS, M8 - 1.25 x 16

Note: (Purchase Locally)

$

$

Not available

Briggs & Stratton 189718GS

GRIP
(Superseded to 198669GS)

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189716GS

CAP, Handle End

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0
