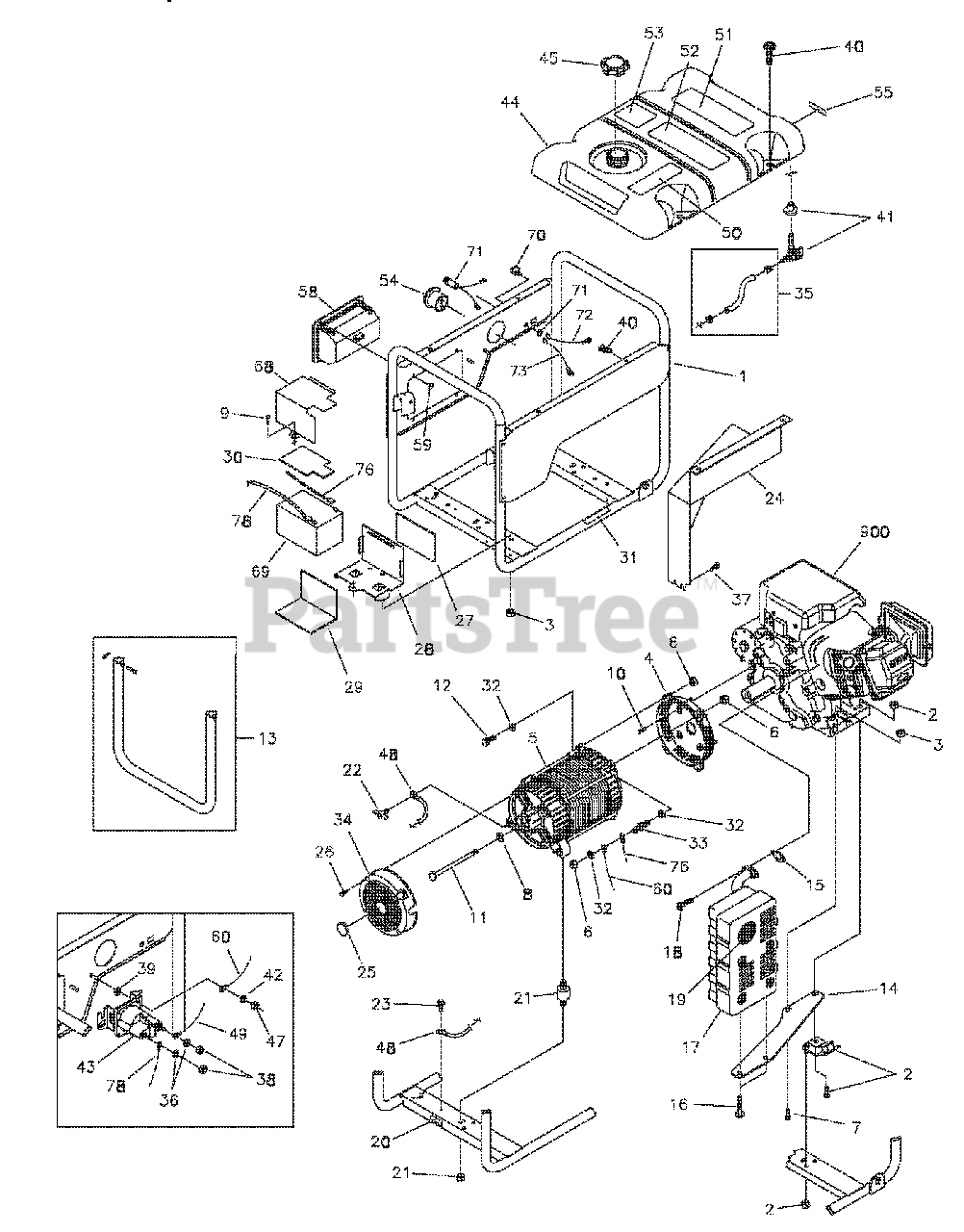

580.325650 (030298-0) - Craftsman 5,600 Watt Portable Generator Main Unit Parts Diagram

5,600 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 199230GS

ASSY, Cradle (Includes Items 20 & 31)

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration, Mount, 45°

$13.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator (see page 27)

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: Purchase locally

$

$

Not available

7

TPHMS, M8 - 1.25 x 35

Note: Purchase locally

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 198611GS

PPHS, 1/4-20 x .05 Trilobular

$3.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8 - 16 x 1

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7

$10.99

$

Usually ships in 2-12 days

0

12

HHCS, M8 - 1.25 x 25

Note: Purchase locally

$

$

Not available

13

Briggs & Stratton 198763GS

KIT, Handle

$61.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

16

HHCS, M6 - 1.0 x 12 w/LW

Note: Purchase locally

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

SHCS, 15/16 - 18 x 3/4

Note: Purchase locally

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 197424GS

SHIELD, Heat

$121.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10, Taptite

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 199228GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198700GS

KIT, Battery Tray w/Insltn

$58.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 199156GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 199157GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Exhaust Warning

$15.99

$

Usually ships in 2-12 days

0

32

WASHER, Lock 5/16 - M8

Note: Purchase locally

$

$

Not available

33

Briggs & Stratton 187117GS

STUD, Double

$3.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Line (Cut to fit)

$10.99

$

In Stock, Qty 7

0

36

WASHER, Lock, 1/4

Note: Purchase locally

$

$

Not available

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

NUT, 1/4-20

Note: Purchase locally

$

$

Not available

39

WASHER, Shakeproof, Ext. M6 1/4

Note: Purchase locally

$

$

Not available

40

Briggs & Stratton 199433GS

KIT, Fuel Tank Hrdwr w/U-Clips

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199284GS

U-CLIPS, (Optional Accessory)

$4.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

42

WASHER, M6 Lock

Note: Purchase locally

$

$

Not available

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 193668GS

ASSY, Tank, Fuel (Includes Items 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton 198912GS

KIT, Fresh Start™ Fuel Cap, w/Crtrg

$25.99

$

Usually ships in 2-12 days

0

47

NUT, Hex, M6 - 1.0

Note: Purchase locally

$

$

Not available

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 185931KGS

WIRE

$11.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 202997GS

DECAL, CO Warning

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 196908GS

LOAD MONITOR

$192.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Shut-Off, Fuel

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 197641GS

ASSY, Control Panel (see page 26)

$

$

Not available

59

NUT, Palnut, 3/16"

Note: Purchase locally

$

$

Not available

60

Briggs & Stratton 198871EGS

WIRE

$2.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 199150GS

KIT, Battery Cover w/Insltn

$39.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 198711GS

BATTERY

$

$

Not available

70

Briggs & Stratton 87799GS

SWITCH, Rocker

$7.49

$

In Stock, Qty 15

0

71

Briggs & Stratton 198925GS

ASSY, Jack Coaxial

$14.99

$

In Stock, only 1 left!

0

72

Briggs & Stratton 198871LGS

WIRE

$5.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 198871KGS

WIRE

$2.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185931LGS

WIRE, Battery Negative

$11.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 185931JGS

WIRE, Battery Positive

$9.49

$

Usually ships in 2-12 days

0

900

ENGINE (204415-0168-E1) (see pages 29-32)

$

$

Not available

Briggs & Stratton 198712GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061GS

BOTTLE, Oil
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 5097D

CARTRIDGE, Fresh Fuel

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 197474GS

CORDSET, Storm
(Superseded to 206775GS)

Note: Not Illustrated

$186.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192378AGS

SLEEVING

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 202180GS

DECAL, Family, CA EVP

Note: Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 199231GS

KIT, Decals, Srv

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0
