580.326300 (1799-0) - Craftsman 6,300 Watt Portable Generator Control Panel Parts Diagram

6,300 Watt Portable Generator

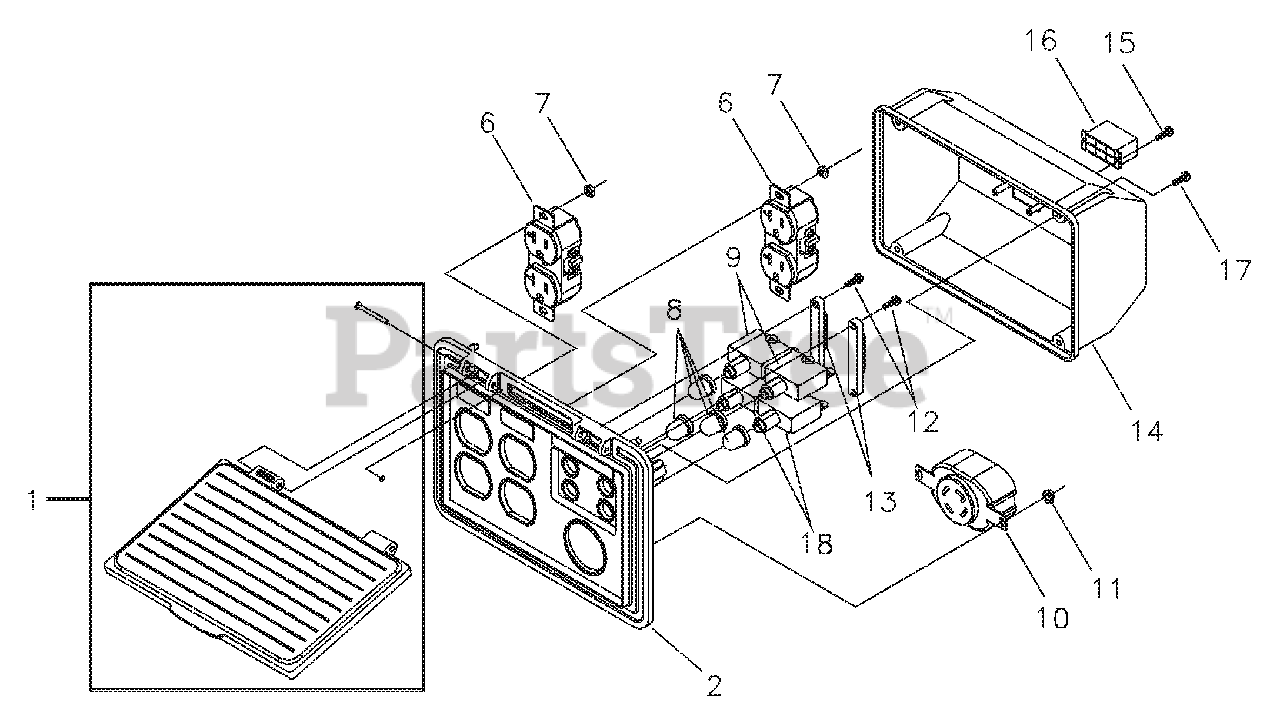

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 195112GS

KIT, Control Panel Lid

$

$

Not available

2

Briggs & Stratton 191450GS

CONTROL PANEL, Compact

$

$

Not available

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp, Duplex

$26.99

$

In Stock, only 3 left!

0

7

NUT, Palnut, 5/32

Note: (Purchase Locally)

$

$

Not available

8

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, Qty 19

0

9

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$36.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 43437GS

OUTLET, 120/240V, Locking, 30A

$

$

Not available

11

NUT, Palnut, 3/16

Note: (Purchase Locally)

$

$

Not available

12

PPPHS, M3- 0.5 x 18

Note: (Purchase Locally)

$

$

Not available

13

Briggs & Stratton 93857GS

BAR, Retaining

$16.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 188890GS

COVER, Back, Control Panel

$

$

Not available

15

Briggs & Stratton 82308GS

SCREW, Tapping, STC 3 x 18

$3.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$6.49

$

In Stock, only 2 left!

0

17

Briggs & Stratton 192241GS

SCREW, Tapping, 3.5 x 14

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75207PGS

BREAKER, Circuit, 25A
(Superseded to 706175)

$33.99

$

Usually ships in 2-12 days

0
