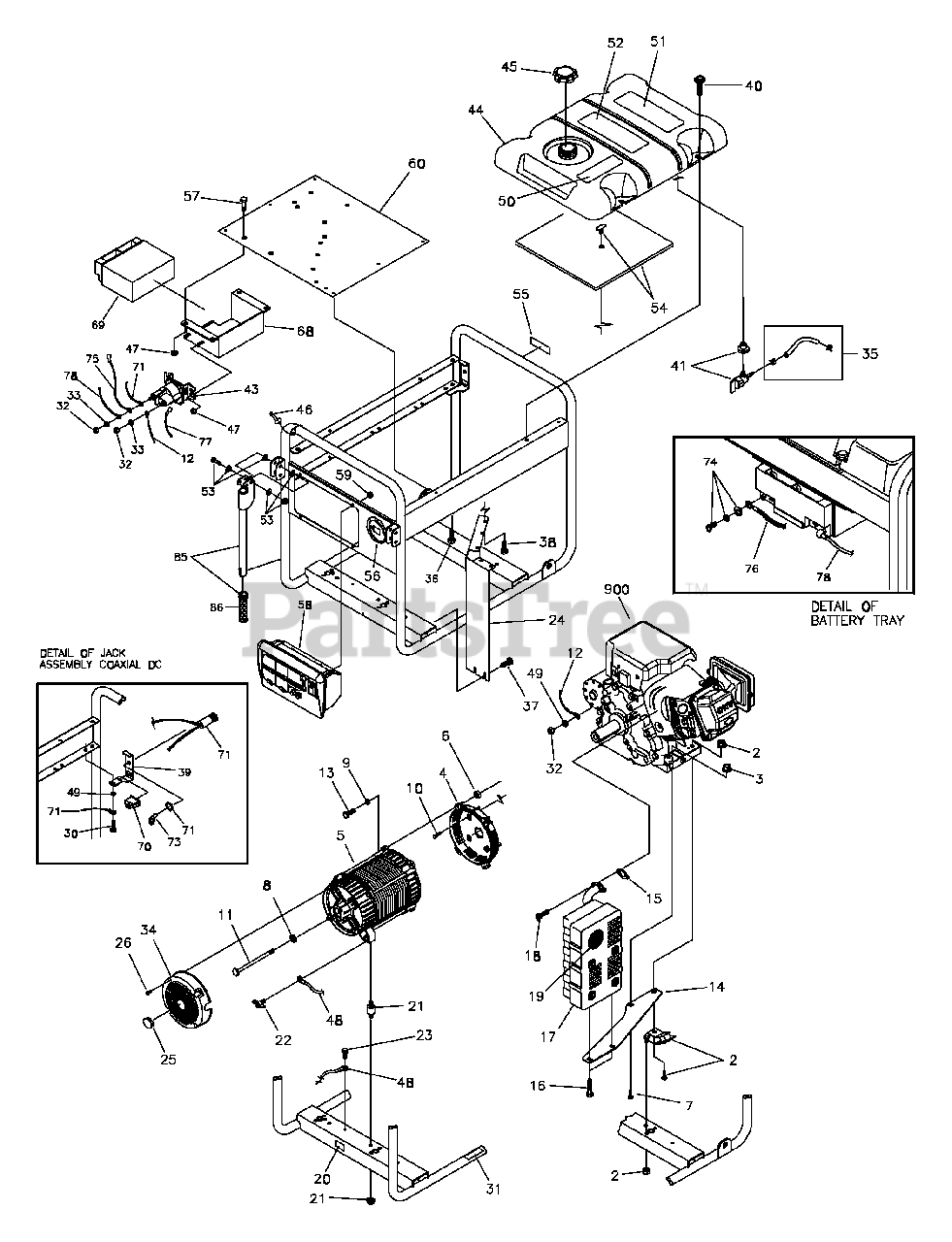

580.326310 (030299-0) - Craftsman 6,300 Watt Portable Generator Main Unit Parts Diagram

6,300 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B198566GS

KIT, Cradle

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Vibration Mount, 45°

$13.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

6

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

7

Briggs & Stratton 195398GS

TPHMS, M8 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, 5/16 - M8 Lock

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SBHC, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16 - 24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302JGS

ASSY, Wire, #16, Red

$22.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

16

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

SCREW, 5/16-18 x 3/4

Note: (Purchase locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

ASSY, Heat Shield

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 90388GS

SCREW, M6 - 1 x 12 Taptite

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

NUT, 1/4 - 20

Note: (Purchase locally)

$

$

Not available

33

WASHER, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel (cut to fit)

$10.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 198757GS

BRACKET, Switch/Jack

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 199256GS

BOLT, Shoulder, M6 - 1.0 w/washer

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

VALVE, Fuel

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 691656

SOLENOID

$31.99

$

In Stock, Qty 12

0

44

Briggs & Stratton 194217GS

ASSY, Tank Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 198912GS

FUEL CAP, Fresh Start(TM)

$25.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B4135GS

PIN, Handle

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

WASHER, Shakeproof, Ext

Note: (Purchase locally)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Instruction Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation w/ clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197789GS

DECAL, Fuel Shutoff
(Superseded to 197646GS)

$14.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 196908GS

LOAD MONITOR

$192.99

$

Usually ships in 2-12 days

0

57

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

58

Briggs & Stratton 198494GS

ASSY, Control Panel

Note: (see "Control Panel")

$282.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 195537GS

HEATSHEILD

$72.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 198760GS

ASSY, Battery Tray w/ Studs

$54.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

Briggs & Stratton 87799GS

SWITCH, Rocker On/Off

$7.49

$

In Stock, Qty 15

0

71

Briggs & Stratton 199152GS

ASSY, Jack, Coax, DC

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 192351GS

LUG, 1/4, #22/18

$2.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 198871GGS

ASSY, Wire, #13 Red

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939KGS

ASSY, Wire, #55 Blk

$

$

Not available

77

Briggs & Stratton 198871HGS

ASSY, Wire, #13B Red

$6.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302MGS

ASSY, Wire, #13 Red

$22.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

Note: (Includes Item 86)

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (210415-0138-E1)

$

$

Not available

Briggs & Stratton 198737GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061GS

BOTTLE, Oil
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 5097D

CARTRIDGE, Fresh Fuel

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 199384GS

DECAL, Family, CA EVP

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 197474GS

CORDSET, Storm
(Superseded to 206775GS)

Note: Not Illustrated

$186.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199389GS

KIT, Decal Service

Note: Not Illustrated

$36.99

$

Usually ships in 2-12 days

0
